Stinger SRK-RAM13H

Name: Stinger SRK-RAM13H
Brand: Stinger
SKU: SRK-RAM13H
Price: 548.25 USD
Availability: InStock

In Stock

Stinger HEIGH10® Radio Replacement Kit SRK-RAM13H for 2013-2019 RAM

Part No.-SRK-RAM13H

$548.25

30 Days Returns Accepted.
Lifetime Tech Support Included.
Free Shipping up to $45.

Reserve Yours Now

Reserve yours from the next batch. Charged at checkout, shipped in order received.

Out of stock

One email the moment stock lands, nothing else.
Waitlist is notified in the order it was joined.
Unsubscribe from the email itself, one click.

SKU :SRK-RAM13H

Brand :Stinger

Fit Guide. Check if it will fit your car.
We Price Match! Call Us! +1 (310) 594-8918

Stinger Ram Integration & Installation Kit for HEIGH10 Multimedia Head Unit

Optimize Your Ram Truck Infotainment System

The Stinger RadioPRO Advanced RAM Integration Kit is designed to integrate the HEIGH10 multimedia system into compatible RAM trucks. Replace the factory radio with a high-resolution multimedia display while retaining most factory features and adding modern connectivity options, including Apple CarPlay and Android Auto.

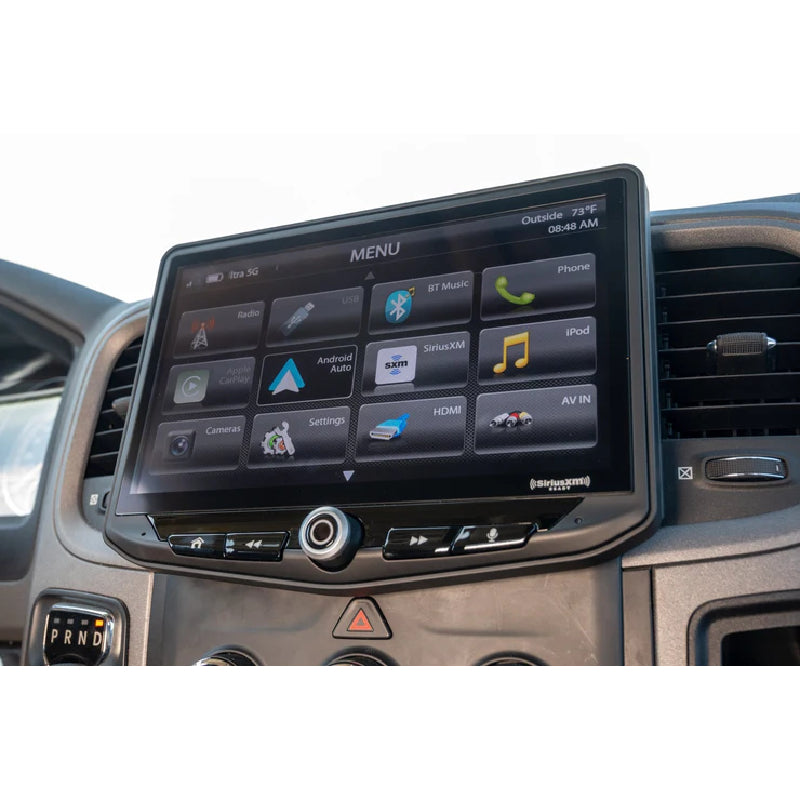

High-Resolution 10-Inch Touchscreen

Enjoy a large, high-resolution 10-inch capacitive touchscreen with support for 16.7 million colors. The expansive display provides a clear, engaging interface for accessing your multimedia system's features.

Apple CarPlay and Android Auto Integration

Access compatible smartphone features directly through your dashboard. Use supported music apps, navigation, and hands-free calling through Apple CarPlay or Android Auto for a more convenient driving experience.

Plug-and-Play Installation

The kit includes vehicle-specific integration components and wiring harnesses designed to simplify installation. Its plug-and-play approach is intended to avoid vehicle modifications while helping connect the HEIGH10 system to compatible factory electronics.

Stinger RAM Integration Kit Key Features

HEIGH10 Integration
Integrates the Stinger HEIGH10 multimedia system into compatible RAM trucks.

10-Inch Touchscreen
Features a high-resolution capacitive display with 16.7 million colors.

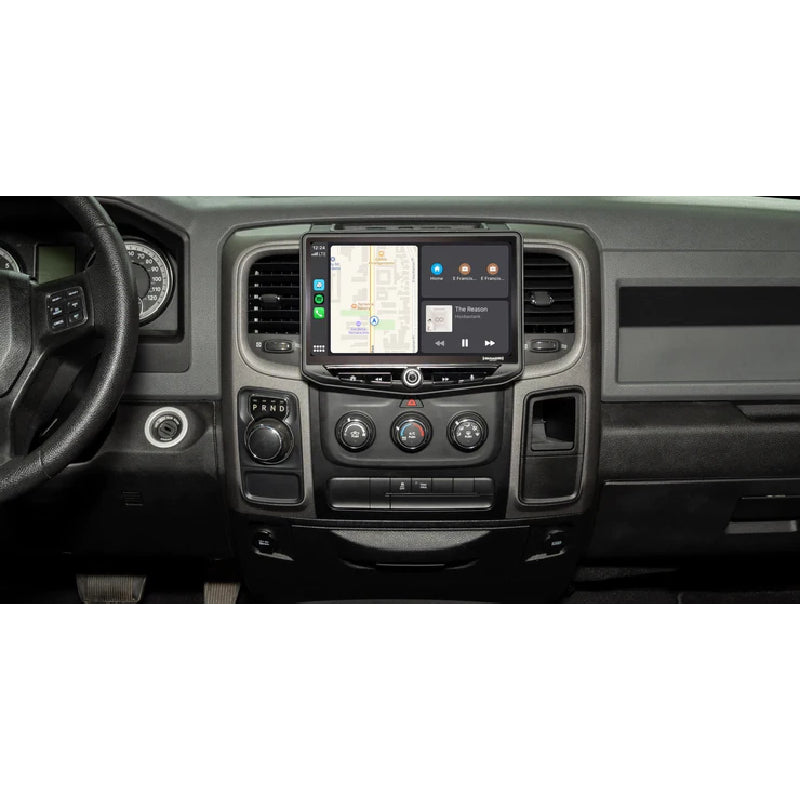

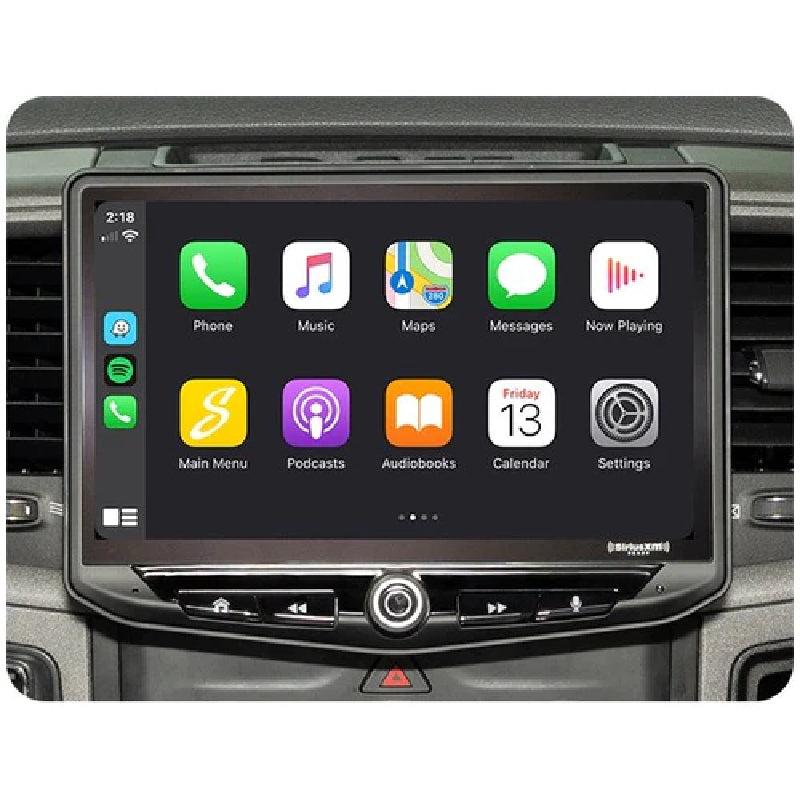

Apple CarPlay
Access compatible smartphone apps and features through the head unit.

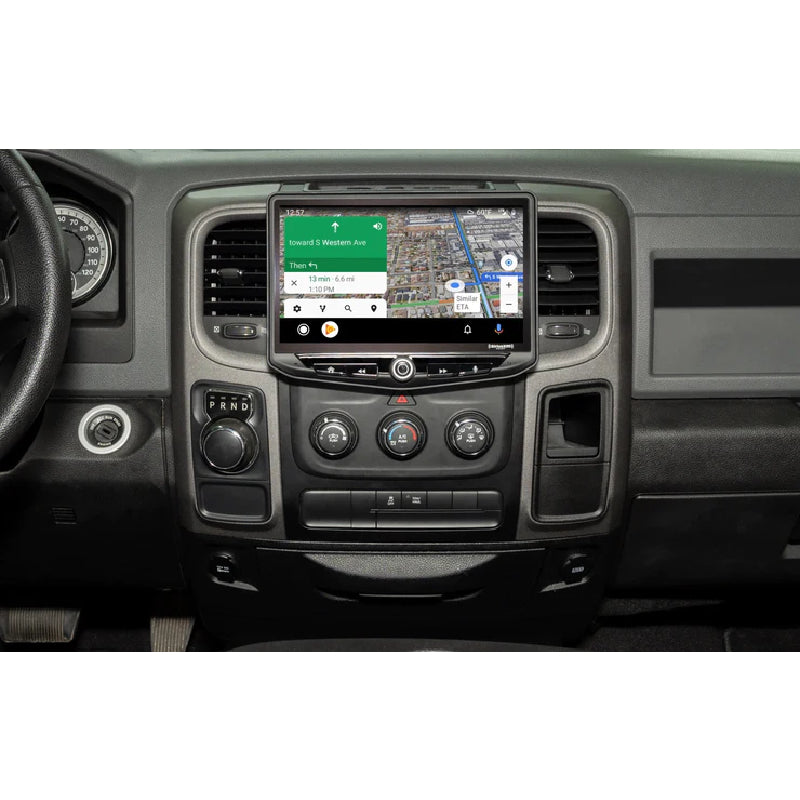

Android Auto
Use supported navigation, music, and hands-free calling features.

Factory Feature Retention
Designed to retain most existing factory features.

Plug-and-Play Design
Includes integration modules and harnesses for a simplified installation.

Upgrade Your RAM Truck's Infotainment Experience

The Stinger RAM Integration and Installation Kit combines HEIGH10 touchscreen functionality, smartphone connectivity, and vehicle integration components in one solution. Upgrade your compatible RAM truck with modern multimedia features while retaining most factory functionality.

Complete Ram Integration Kit: Upgrade your 2013–2018 Ram or 2019 Ram Classic with the Stinger HEIGH10® UN1810 10-inch multimedia system using a vehicle-specific integration kit designed for a clean, factory-style installation.
Seamless OEM-Style Fit: Includes flush-mounted dashboard plastics for a refined, integrated appearance, with trim options designed to accommodate different factory radio configurations.
Retains Factory Steering-Wheel Controls: Continue using your original steering-wheel audio controls for convenient, familiar operation while driving.
Factory Amplifier Compatibility: Retain your factory amplifier to help preserve your vehicle's original audio system configuration.
Original Camera Retention: Maintain compatibility with factory backup and cargo cameras when equipped, helping preserve your existing camera functionality.
Essential Vehicle Signal Integration: Supports vehicle speed, illumination, reverse, parking brake, and turn signal connections for enhanced radio integration.

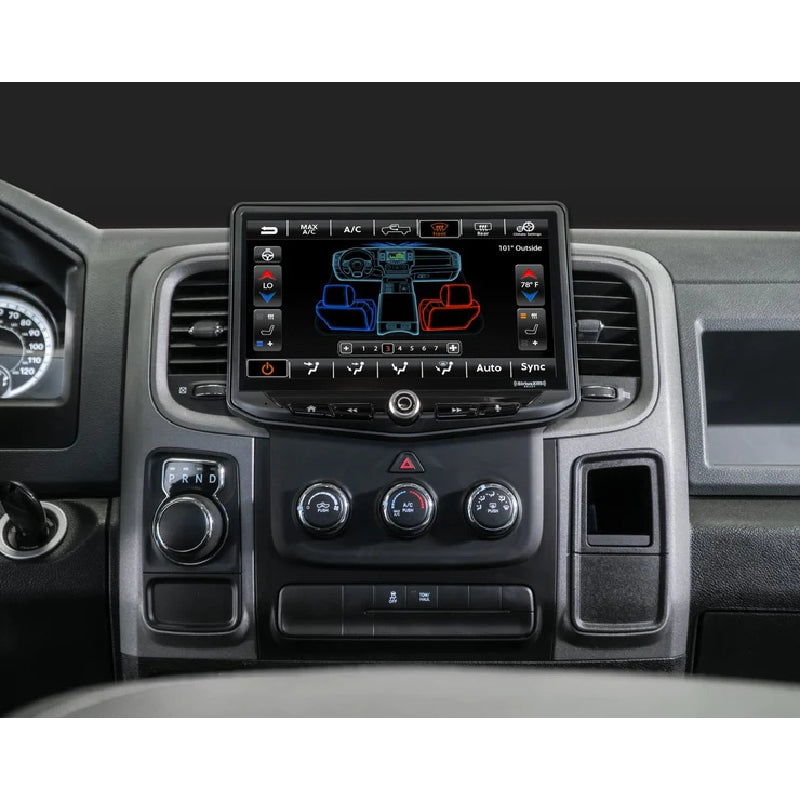

Custom Climate Control Screens: Access and adjust supported vehicle climate settings directly through the customized infotainment interface.

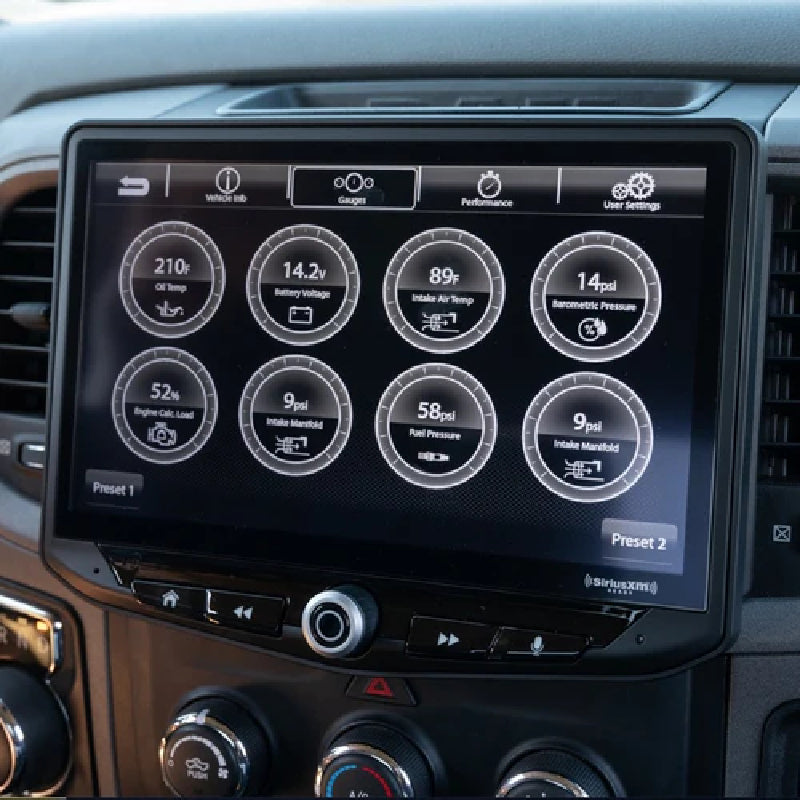

Real-Time Performance Gauges: Monitor available vehicle performance information through customizable on-screen gauges for a more connected driving experience.
Vehicle Status Monitoring: View supported tire pressure, door status, engine status, and other vehicle information through the integrated display.
70+ Customizable Vehicle Settings: Access a wide range of supported vehicle settings to personalize your driving experience, depending on the vehicle's factory equipment.
Powerful Built-In Audio: Enjoy up to 50 watts peak output per channel, with 25 watts RMS per channel at 4 ohms for everyday listening.
Advanced Sound Customization: Fine-tune your audio with a 15-band equalizer, adjustable high-pass and low-pass filters, subwoofer controls, phase selection, and time correction.
Versatile Connectivity: Features USB 2.0, dual Bluetooth 4.2, HDMI input, camera video inputs, and optical audio output for integration with compatible devices.
Customizable Display Background: Personalize the screen with your own JPG or PNG background image at the supported 1024 × 600 resolution.

Additional Information

Brand	Stinger
Model	SRK-RAM13H
Condition	Brand New

General:

Product Type: Vehicle-Specific Radio Integration Kit
Compatible Radio: Stinger HEIGH10® UN1810
Vehicle Compatibility: 2013–2018 Ram; 2019 Ram Classic
Operating Voltage: 9.0–18 V DC
Grounding System: Negative Ground
Maximum Current Consumption: 10 A Fused

Dimensions:

Radio Module (W × H × D): 178 × 100 × 116 mm
Display (W × H × D): 247.2 × 180.6 × 48.5 mm

Display:

Screen Size: 10-inch diagonal
Aspect Ratio: 16:9
Resolution: 1024 × 600
Total Pixels: 1,843,200
Active Display Area: 222.72 × 125.28 mm
Operating Temperature: -20°C to 70°C

Audio:

Peak Power Output: 50 W × 4 channels at 4 ohms
Continuous Power Output: 25 W × 4 channels at 4 ohms
Continuous Output Test Conditions: 20 Hz–20 kHz, 1% THD at 14.4 V
Load Impedance: 4 ohms nominal; 2 ohms allowable
Maximum Preamp Output: 4.0 V
Equalizer: 15-Band EQ
EQ Frequencies: 25 Hz, 40 Hz, 63 Hz, 100 Hz, 160 Hz, 250 Hz, 400 Hz, 630 Hz, 1 kHz, 1.6 kHz, 2.5 kHz, 4 kHz, 6.3 kHz, 10 kHz, 16 kHz
EQ Gain: ±12 dB in 2 dB steps
High-Pass Filter Frequencies: 25 Hz, 40 Hz, 63 Hz, 80 Hz, 100 Hz, 160 Hz, 250 Hz
HPF Slopes: 6 dB, 12 dB, 18 dB
Subwoofer Preout: Yes
Low-Pass Filter Frequencies: 25 Hz, 40 Hz, 63 Hz, 80 Hz, 100 Hz, 160 Hz, 250 Hz
LPF Slopes: 6 dB, 12 dB, 18 dB
Subwoofer Gain: -14 dB to +7 dB in 1 dB steps
Subwoofer Phase: 0° or 180°
Speaker-Level Adjustment: ±9 dB in 1 dB steps
Time Correction: 0–133 steps, adjustable in inches or milliseconds

USB:

USB Standard: USB 2.0
Maximum Current Supply: 1.5 A
Supported USB Classes: MSC (Mass Storage Class), MTP (Media Transfer Protocol)
Supported File Systems: FAT32, NTFS
Maximum Storage Capacity: 64 GB
Bluetooth
Bluetooth Version: Dual Bluetooth 4.2
Transmission Power: 4 dBm, Class 2
Frequency Range: 2.4–2.48 GHz

FM Tuner:

Frequency Range: 87.9–107.9 MHz
Usable Sensitivity: 0 dB as specified
Mono Signal-to-Noise Ratio: 30 dB
Signal-to-Noise Ratio: 65 dB

AM Tuner:

Frequency Range: 530–1710 kHz
Usable Sensitivity: 0 dB as specified
Mono Signal-to-Noise Ratio: 20 dB
Signal-to-Noise Ratio: 58 dB
Camera Video Inputs
Supported Video Formats: NTSC or PAL

HDMI Input:

Supported Resolutions: 640 × 480p, 720 × 480p, 1280 × 720p, 1920 × 1080i, 1920 × 1080p
Optical Audio Output
Connection Type: Toslink
Output Format: Variable 48 kHz
Custom Background Image
Supported File Formats: JPG, PNG
Supported Resolution: 1024 × 600
File Size Limit: No specified limit

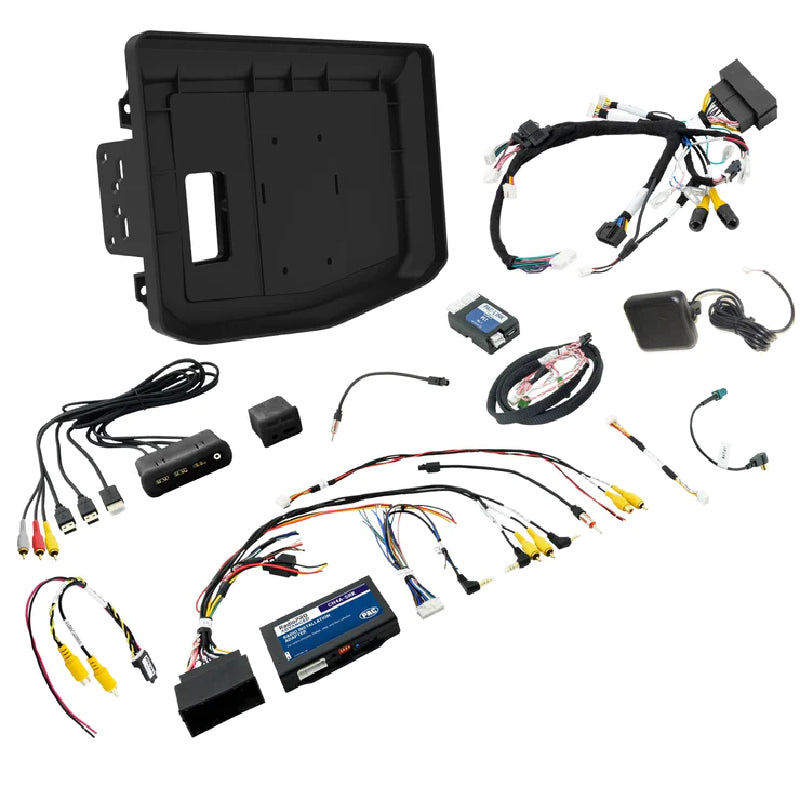

What's In The Box

• HEIGH10 Display Mounting Pane

• Radio Module Mounting Brackets

• External Chime Speaker

• Media Hub Replacement (USBHUB-CH1-RCA)

• AM / FM Antenna Adapter (BAA22)

• PAC-LINK Interface Module (PL1)

• CAN-Bus Connection Harness (MQS4PT-CANC)

• Differential/Composite Video Modules x2(RPA-VA1)

• Main Wiring Harness (SRK-RAM13-HAR)

• RadioPRO Replacement Interface Module(CH4A-SRK

• 6” Data Harness (10P-2-10P-6-HAR)

• Satellite Antenna Adapter (SAT-01)

• Owner's Manual
