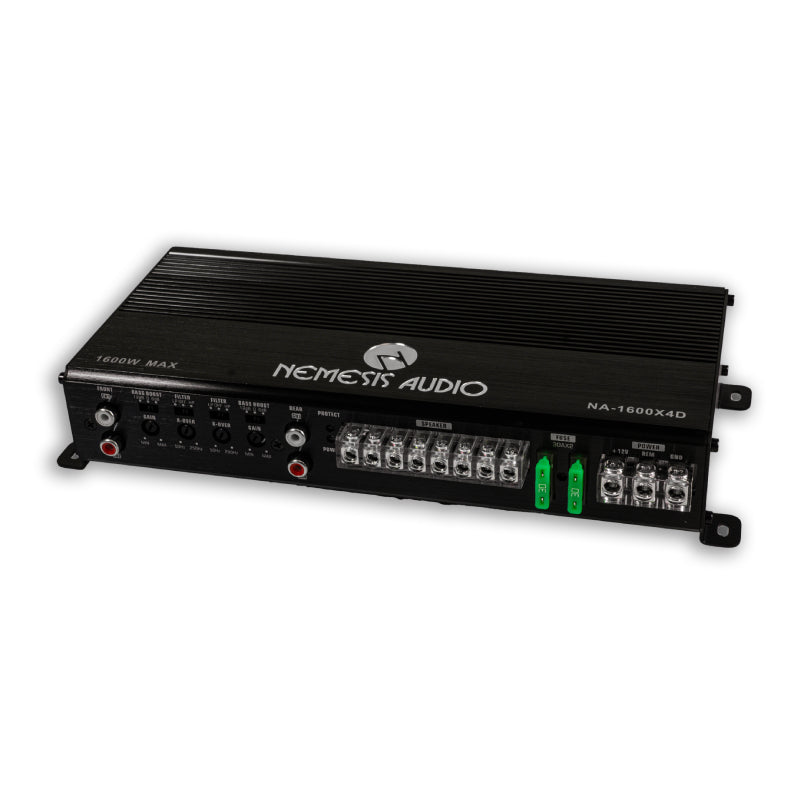

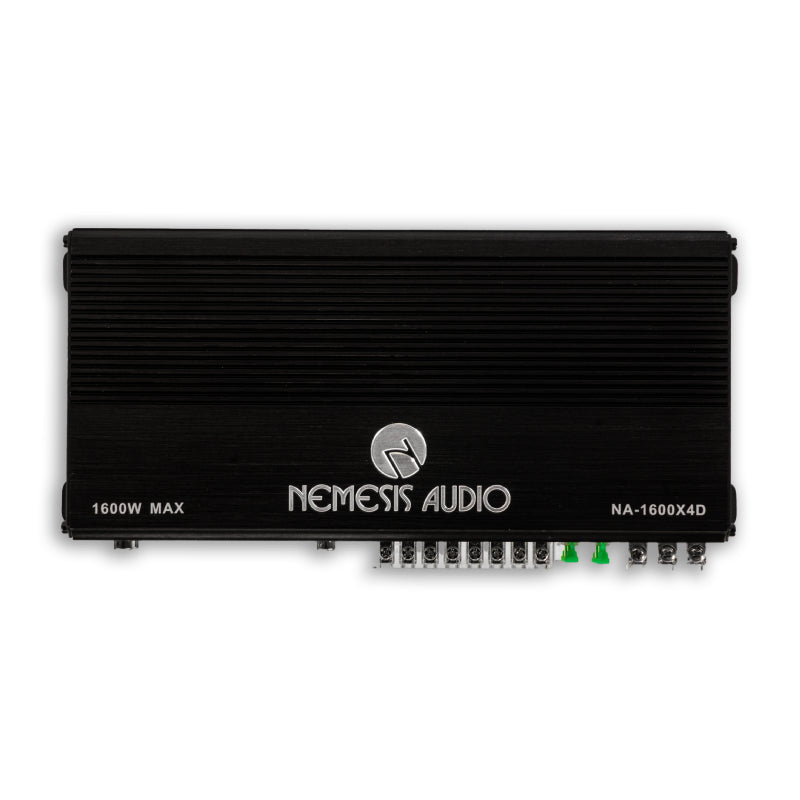

Nemesis Audio NA-1600X4D

Name: Nemesis Audio NA-1600X4D
Brand: Nemesis Audio
SKU: NA-1600X4D
Price: 197.99 USD
Availability: InStock

In Stock

4-Channel 1600W Max Power, Class-D Full Range Car Amplifier

Part No.-NA-1600X4D

$197.99

30 Days Returns Accepted.
Lifetime Tech Support Included.
Free Shipping up to $45.

Reserve Yours Now

Reserve yours from the next batch. Charged at checkout, shipped in order received.

Out of stock

One email the moment stock lands, nothing else.
Waitlist is notified in the order it was joined.
Unsubscribe from the email itself, one click.

SKU :NA-1600X4D

Brand :Nemesis Audio

Fit Guide. Check if it will fit your car.
We Price Match! Call Us! +1 (310) 594-8918

Nemesis NA-1600X4D 4-Channel 200W RMS x 4 at 2 Ohm, Class-D Full Range Car Amplifier

Precision Tuning for Subwoofer Enthusiasts

Experience powerful, distortion-free audio with 4x100W RMS at 4 Ohms and up to 4x400W max at 2 Ohms, featuring wide 20Hz–20kHz frequency response, adjustable LPF (50Hz–250Hz), and a precision subsonic filter (5Hz–50Hz) — all optimized for clean, high-performance sound from 0.2V to 6V input levels.

High-Efficiency Mono Amplifier with Deep Bass and Compact Design

Unleash deep, punchy bass with adjustable boost from 30Hz–80Hz and up to 12dB gain, while maintaining ultra-clean sound with <0.5% THD and >80dB signal-to-noise ratio — all in a compact 253x121x44mm design that supports a powerful 2-Ohm load and draws just 76A for efficient, high-performance audio.

Nemesis NA-1600X4D Key Features

4-Channel
Class-D Full Range Amplifier

100W RMS × 4 @ 4Ω
RMS Power Output

400W Max × 4 @ 2Ω
Maximum Power Output

20Hz – 20kHz
Frequency Response

50Hz – 250Hz
Adjustable LPF

5Hz – 50Hz
Adjustable Subsonic Filter

30Hz – 80Hz
Adjustable Bass Boost

Up to 12dB
Bass Boost Gain

<0.5%
THD

>80dB
Signal-to-Noise Ratio

0.2V – 6V
Input Level

253 × 121 × 44mm
Compact Design

2 Ohm
Load Support

76A
Current Draw

Class-D Power. Precision Tuning. Compact Performance.

The Nemesis NA-1600X4D delivers flexible 4-channel Class-D amplification with adjustable crossover controls, bass boost, subsonic filtering, and efficient performance in a compact chassis designed for demanding car audio systems.

4-Channel Class D Design: Compact amplifier for powering multiple speakers
1600W Max Power: Delivers up to 1600 watts of maximum output
200W RMS x4 @ 2 Ohms: Provides 200 watts RMS per channel at 2 ohms
100W RMS x4 @ 4 Ohms: Provides 100 watts RMS per channel at 4 ohms
Adjustable LPF: 50Hz–250Hz crossover range
Subsonic Filter: Adjustable from 5Hz–50Hz
Bass Boost: Adjustable 0–12dB with a 30Hz–80Hz frequency range
Wide Frequency Response: 20Hz–20kHz
2-Ohm Stable: Supports a minimum 2-ohm load
Compact Design: 253 × 121 × 44mm chassis

Additional Information

Brand	Nemesis Audio
Model	NA-1600X4D
Condition	Brand New
Sold As	Single
RMS Power Handling	800
Maximum Power	1600
Frequency Response	20-20000
Number of Channels	4
Amplifier Class	D

Type: 4-Channel Car Amplifier
Channels: 4
Amp Watts: 1600W
RMS / Max Power @ 4 Ohms: 100W x4 / 200W x4
RMS / Max Power @ 2 Ohms: 200W x4 / 400W x4
Input Level: 0.2V–6V
Frequency Response: 20Hz–20kHz
LPF: 50Hz–250Hz
Subsonic Filter: 5Hz–50Hz
Bass Boost Frequency: 30Hz–80Hz
Bass Boost Level: 0–12dB
Current Draw: 76A
THD: <0.5%
Signal-to-Noise Ratio: >80dB
Minimum Load: 2 Ohms
Dimensions: 253 × 121 × 44mm (9.96" × 4.76" × 1.73")

What's In The Box

• Class-D 4-Channel Full Range Car Amplifier

• Owner's Manual
