Musway SIX.100

Name: Musway SIX.100
Brand: Musway
SKU: SIX.100
Price: 774.95 USD
Availability: InStock

In Stock

6-Channel 120W RMS x 6 at 4 Ohm, Class-D Full Range Car Amplifier with Bass Remote Controller

Part No.-SIX.100

$774.95

30 Days Returns Accepted.
Lifetime Tech Support Included.
Free Shipping up to $45.

Reserve Yours Now

Reserve yours from the next batch. Charged at checkout, shipped in order received.

Out of stock

One email the moment stock lands, nothing else.
Waitlist is notified in the order it was joined.
Unsubscribe from the email itself, one click.

SKU :SIX.100

Brand :Musway

Fit Guide. Check if it will fit your car.
We Price Match! Call Us! +1 (310) 594-8918

Musway SIX.100 6-Channel 120W RMS x 6 at 4 Ohm, Class-D Full Range Car Amplifier with Bass Remote Controller - German Engineered

We are a Musway authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

What's Inside?

• SIX.100 6-Channel Class-D Full Range Car Amplifier
• External ANL Mini Fuse holder
• 80-amp Mini ANL Fuse
• (2) High Level Output Harness
• (2) High Level Input Harness with EPS
• (2) Low Level (RCA) Input Harness
• RLC Knob
• RLC Cable 16.5'
• RLC Breakaway Cable 1'
• Mounting Hardware
• Owner's Manual

SIX.100 Incredibly Versatile 6-Channel Amplifier

A car amplifier designed to power up a huge vehicle audio system, the Musway SIX.100 allows you to connect up to six speakers while delivering high-quality and powerful full-range frequency performance that audiophiles enjoy. The amplifier also enables you to bridge two of its channels if you are planning to use a subwoofer, resulting in a 5-way setup.

Equipped With 4-fold Laminated Circuit Boards

The Musway SIX.100 is equipped with 4-fold laminated circuit boards, allowing it to be designed as compactly as possible. It also comes with brushed aluminum heat sink and end panels, ensuring that the amplifier can stay cool even after long hours of use, especially at high volume levels.

Designed Effectively To Eliminate EMI Interference

It is designed effectively to eliminate EMI interference, which is necessary for compact amplifiers like the Musway SIX.100. With its Intelligent High-Level Input Error Protection System, the amplifier is protected from getting damaged, as it ensures that no errors occur in its diagnostic system.

Can Handle a Power Output of 110 Watts RMS

The Musway SIX.100 can handle a power output of 110 Watts RMS at 4 ohms per channel and 180 Watts RMS at 2 ohms per channel. This Class-D amplifier also has a frequency response of 4 Hz to 38 kHz and a sensitivity rate of 107 dB, allowing it to go seriously loud and deliver an extensive full-range frequency performance with less distortion at high volume levels.

6-Channel Class D Amplifier: Delivers powerful, efficient audio performance for versatile car audio systems.
High Power Output: Provides up to 6 × 196W RMS at 2Ω or 3 × 392W RMS bridged at 4Ω (14.4V).
Start-Stop Ready: Operates with vehicle start-stop systems down to 8.5V.
EPS Protection System: Intelligent high-level input protection helps prevent input errors.
Flexible Input Modes: Selectable 2-channel or 6-channel input with high- and low-level connections.
Advanced Crossover Controls: Adjustable HPF, LPF, and band-pass modes for customized sound.
Low EMI Interference: Four-layer laminated circuit boards help reduce electromagnetic interference.
Automatic Turn-On: Supports DC offset and signal-sensing activation.
Premium Cooling Design: Brushed aluminum heatsink and end panels help manage heat.
Remote Bass Control: Includes a remote level controller for convenient adjustment.

Additional Information

Brand	Musway
Model	SIX.100
Condition	Brand New
Sold As	Single
Peak Power Handling	120
Frequency Response	4-38000
Number of Channels	6
Amplifier Class	D
Fuse Rating	1x80

Channels: 6
Circuit Type: Digital Class D
RMS Power @ 13.8V: 6 × 110W @ 4Ω; 6 × 180W @ 2Ω; 3 × 360W bridged @ 4Ω
RMS Power @ 14.4V: 6 × 120W @ 4Ω; 6 × 196W @ 2Ω; 3 × 392W bridged @ 4Ω
Frequency Response (-3dB): 4–38,000Hz
Damping Factor: Greater than 150
Signal-to-Noise Ratio: 107dB
THD+N: Less than 0.02%
Input Sensitivity: 5–0.2V

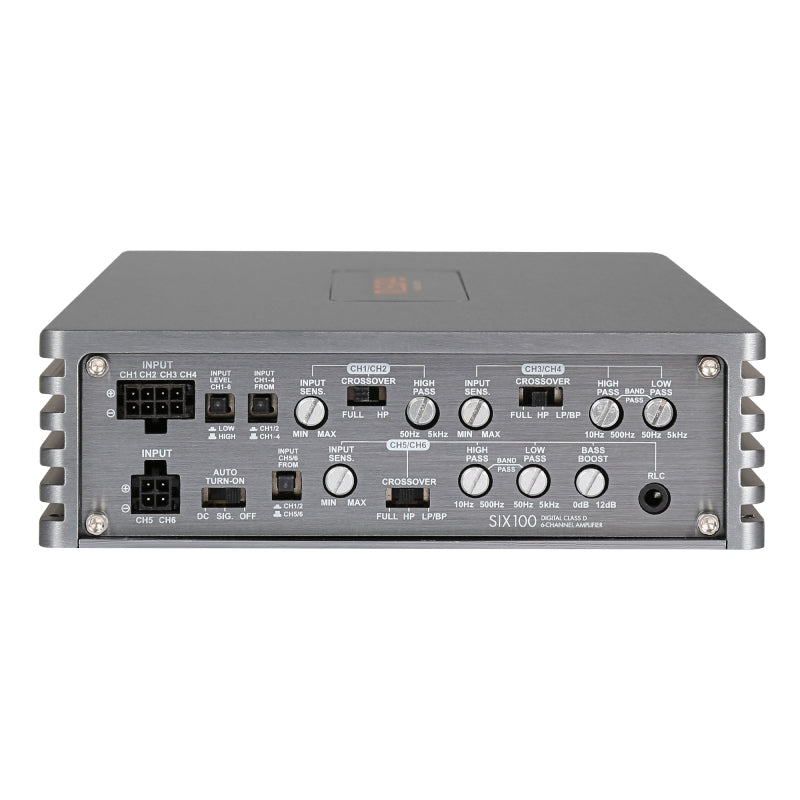

Channel 1/2 Crossover: Full / HP; HPF 50–5,000Hz
Channel 3/4 Crossover: Full / HP / LP / BP; HPF 10–500Hz; LPF 50–5,000Hz
Channel 5/6 Crossover: Full / HP / LP / BP; HPF 10–500Hz; LPF 50–5,000Hz
Bass Boost: 0–12dB @ 45Hz (Channels 5/6)
Start-Stop Capability: 8.5V
High-Level Inputs with EPS: Yes
Auto Turn-On: DC offset or signal sensing
Remote Level Controller: Included
Fuse Rating: 1 × 80A external
Dimensions: 290 × 45 × 150mm

What's In The Box

• SIX.100 6-Channel Class-D Full Range Car Amplifier

• External ANL Mini Fuse holder

• 80-amp Mini ANL Fuse

• (2) High Level Output Harness

• (2) High Level Input Harness with EPS

• (2) Low Level (RCA) Input Harness

• RLC Knob

• RLC Cable 16.5'

• RLC Breakaway Cable 1'

• Mounting Hardware

• Owner's Manual
