Musway NX900.5

Name: Musway NX900.5
Brand: Musway
SKU: NX900.5
Price: 739.95 USD
Availability: InStock

In Stock

NX Series 5-Channel 70W RMS x 4 + 5th Sub Channel 250W RMS x1 at 4 Ohm, Class-D Full Range Micro Car Amplifier with Remote Bass Control Included

Part No.-NX900.5

$739.95

30 Days Returns Accepted.
Lifetime Tech Support Included.
Free Shipping up to $45.

Reserve Yours Now

Reserve yours from the next batch. Charged at checkout, shipped in order received.

Out of stock

One email the moment stock lands, nothing else.
Waitlist is notified in the order it was joined.
Unsubscribe from the email itself, one click.

SKU :NX900.5

Brand :Musway

Fit Guide. Check if it will fit your car.
We Price Match! Call Us! +1 (310) 594-8918

Musway NX900.5 NX Series 5-Channel 70W RMS x 4 + 5th Sub Channel 250W RMS x1 at 4 Ohm, Class-D Full Range Micro Car Amplifier with Remote Bass Control Included - German Engineered

We are a Musway authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

What's Inside?

• 5-Channel Class-D Full Range Micro Car Amplifier
• Remote Bass Control
• Owner's Manual

Compact 5-Channel Class D Amplifier with Powerful Flexibility

This ultra-compact 5-channel Class D amplifier (89 × 41 × 183mm) delivers high-performance sound in a discreet, space-saving design. Channels 1–4 provide 70W x 4 at 4Ω or 120W x 4 at 2Ω, with the option to bridge to 2 × 240W, while the subwoofer channel delivers 250?W at 4Ω or 425W at 2Ω. With a wide 10–41,000Hz frequency response (@ -1dB), it ensures clean, full-spectrum audio for a complete, high-fidelity listening experience.

Pristine Audio with Advanced Tuning

Experience ultra-clean sound with a >99dB signal-to-noise ratio and THD+N <0.02% @ 5W. Advanced filtering allows precise control: Channels 1/2 and 3/4 feature adjustable low/high-pass filters (50–5000Hz), while the sub channel includes low-pass (50–250Hz), subsonic (10–50Hz), and bass boost (0–18dB). Designed for modern vehicles, the amplifier supports start-stop systems, high-level input via EPS cable, and auto turn-on via high-level signal for seamless operation.

Convenient Bass Control with Safe and Reliable Operation

Fine-tune your subwoofer output on the fly with the included remote bass controller for precise, effortless adjustments. Designed for safety and reliability, the amplifier operates on 10.5–16.5V (momentarily down to 7V) and requires a 60A external fuse for protection.

Compact 5-Channel Class D Power: Digital Class D design in a tiny chassis (89 x 41 x 183 mm) for discreet installs
Versatile Output: Channels 1–4: 4 x 70W @ 4Ω, 4 x 120W @ 2Ω, bridged 2 x 240W; Subwoofer: 1 x 250W @ 4Ω, 1 x 425W @ 2Ω
Wide Frequency Range: 10 – 41,000 Hz (@ -1 dB) for clean, full-spectrum audio
Ultra-Clean Sound: >99 dB signal-to-noise ratio, THD+N < 0.02% @ 5 W
Advanced Filtering: CH1/2 & CH3/4: Low/High Pass 50–5000 Hz; Sub: Low Pass 50–250 Hz, Subsonic 10–50 Hz, Bass Boost 0–18 dB
Modern Vehicle Ready: Start-stop capable, high-level input via EPS cable, auto turn-on via high-level signal
Remote Subwoofer Control: Includes bass level remote for precise low-end tuning
Safe & Reliable: Requires 80A external fuse; operates 10.5–16.5V (briefly down to 7V)

Additional Information

Brand	Musway
Model	NX900.5
Condition	Brand New
Sold As	Single
Frequency Response	10-41000
Number of Channels	5
Amplifier Class	D
Fuse Rating	80

Channels: 5
Circuit: Digital Class D
Power RMS @ 14.4 V (≤1% THD+N):
CH1–CH4: 4 x 70W @ 4 Ohm, 4 x 120W @ 2 Ohm, 2 x 240W @ 4 Ohm bridged
SUB: 1 x 250W @ 4 Ohm, 1 x 425W @ 2 Ohm
Frequency Range: 10 – 41,000 Hz @ -1 dB
Signal-to-Noise Ratio: > 99 dB
THD+N @ 5 W: < 0.02%
Input Sensitivity: 400 mV – 8.9 V

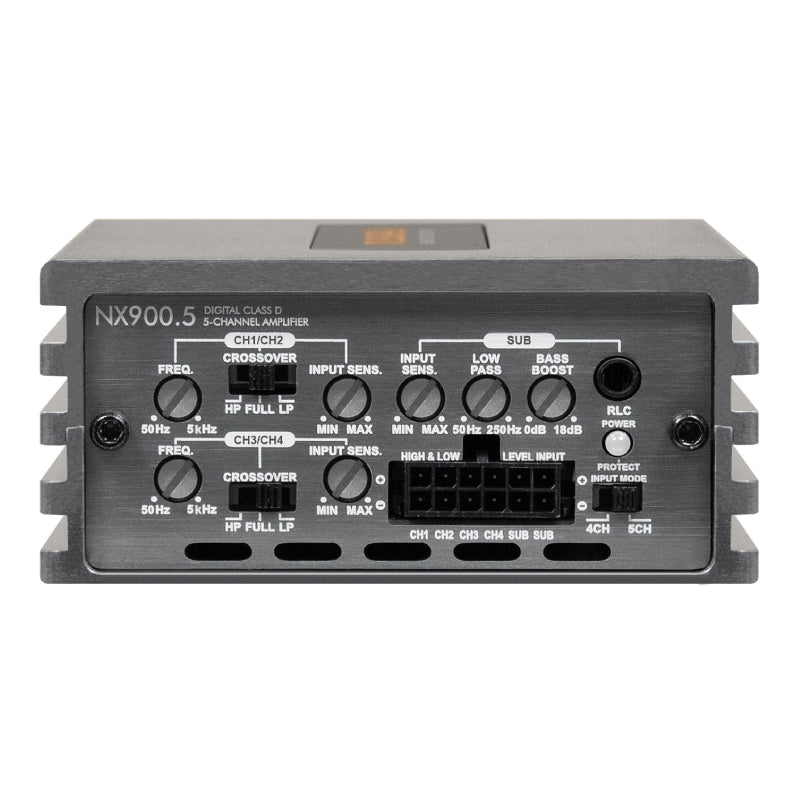

Filter Section CH1/CH2: Low-pass or High-pass filter 50 – 5000 Hz
Filter Section CH3/CH4: Low-pass or High-pass filter 50 – 5000 Hz
Filter Section SUB: Low-pass filter 50 – 250 Hz, Subsonic filter 10 – 50 Hz, Bass Boost @ 40 Hz 0 – 18 dB
Operating Voltage: 10.5 – 16.5 V (max. 5 sec down to 7 V)
Start-stop Capability: Yes
High-Level Input with EPS: Yes, via included cable connector
Auto Turn-on: Yes, only via high-level input
Bass Level Remote Controller SUB: Yes
Fuse (External): 80 A
Dimensions: 89 x 41 x 183 mm

What's In The Box

• 5-Channel Class-D Full Range Micro Car Amplifier

• Remote Bass Control

• Owner's Manual
