Musway M10

Name: Musway M10
Brand: Musway
SKU: M10
Price: 2119.95 USD
Availability: InStock

In Stock

10-Channel 80W x 8 at 4 Ohm + 9th and 10th Channel 120W x 2 at 4 Ohm, Class-D Full Range Car Amplifier with 14-Channel Digital Sound Processor Output - German Engineered

Part No.-M10

$2,119.95

30 Days Returns Accepted.
Lifetime Tech Support Included.
Free Shipping up to $45.

Reserve Yours Now

Reserve yours from the next batch. Charged at checkout, shipped in order received.

Out of stock

One email the moment stock lands, nothing else.
Waitlist is notified in the order it was joined.
Unsubscribe from the email itself, one click.

SKU :M10

Brand :Musway

Fit Guide. Check if it will fit your car.
We Price Match! Call Us! +1 (310) 594-8918

Musway M10 10-Channel 80W x 8 at 4 Ohm + 9th and 10th Channel 120W x 2 at 4 Ohm, Class-D Full Range Car Amplifier with 14-Channel Digital Sound Processor Output - German Engineered

Seamless Integration for Advanced Car Audio Systems

Discover the power and precision of the Musway M10, featuring 10 Class-D amplifier channels and an integrated 14-channel digital sound processor. With four DSP outputs, it provides a versatile foundation for advanced high-fidelity car audio systems while minimizing cabling complexity. It is particularly suited to BMW and Mercedes applications that require dedicated subwoofer performance.

Versatile Inputs and Seamless Factory System Integration

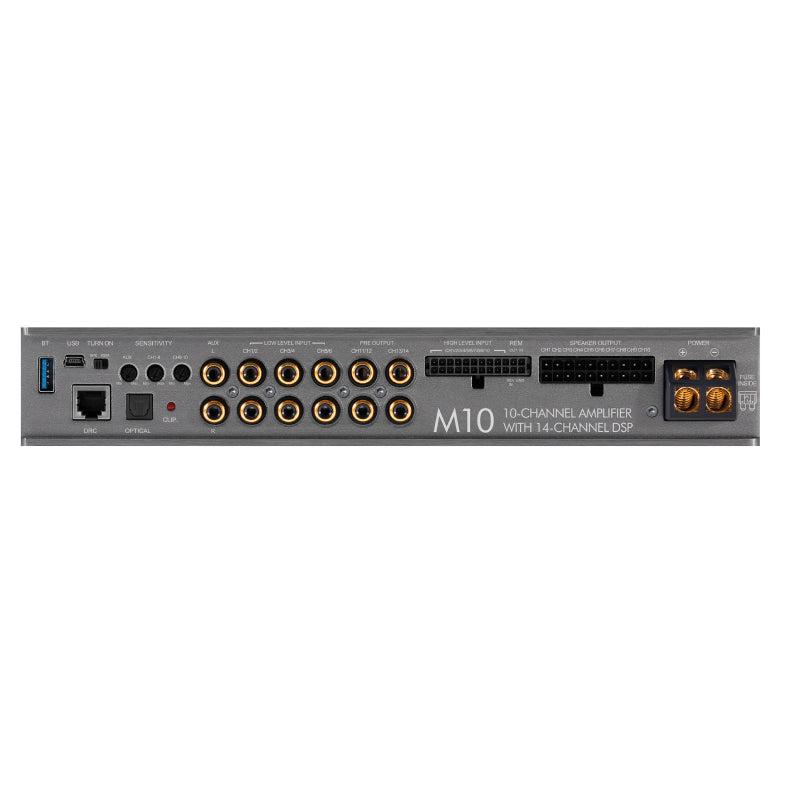

The M10 offers six RCA inputs, an AUX input, and 10 high-level inputs for direct connection to speaker signals. It supports input levels up to 24 V/RMS on channels 1–8 and 32 V/RMS on channels 9 and 10, making it suitable for complex factory audio systems. Built-in EPS signal protection helps support safe and reliable integration with existing vehicle electronics.

Precision Power and Smart Control for High-End Car Audio

Designed for sophisticated audio installations, the M10 combines Class-D amplification with advanced DSP processing using Burr-Brown and Analog Devices technology. Its 64-bit processing supports detailed sound tuning, while Start-Stop compatibility and EPS protection help ensure dependable operation. Optional Bluetooth streaming and remote DSP control provide additional flexibility for system configuration and everyday listening.

Musway M10 Key Features

10-Channel
Class-D Full Range Amplifier

80W x 8
Channels 1–8 at 4 Ohms

120W x 2
Channels 9–10 at 4 Ohms

14-Channel DSP
Digital Sound Processing Output

4 DSP Outputs
System Configuration

6 RCA Inputs
Low-Level Connectivity

AUX Input
Additional Audio Source

10 High-Level Inputs
Speaker-Signal Integration

24 V/RMS
Input Support on Channels 1–8

32 V/RMS
Input Support on Channels 9–10

64-Bit Processing
Advanced DSP Technology

Burr-Brown
Audio Technology

Analog Devices
DSP Technology

EPS Protection
Signal Integration Support

Start-Stop Ready
Vehicle Compatibility

Bluetooth Ready
Optional Audio Streaming

Remote DSP Control
Optional Accessory

Multi-Channel Power. Advanced DSP. Precision Audio Control.

The Musway M10 combines 10-channel Class-D amplification, a 14-channel DSP output architecture, versatile factory-system connectivity, and advanced 64-bit processing. With Start-Stop compatibility, EPS protection, and optional Bluetooth streaming and remote DSP control, it provides a flexible foundation for sophisticated high-fidelity car audio systems.

Smart Signal Protection: High-Level Input with EPS® keeps your system safe from overloads
Always Ready: Start-Stop compatibility with hassle-free Auto Turn-On
Elite Audio Hardware: Burr-Brown converters and Analog Devices DSP for precision sound
Powerful Processing: Dual 64-bit, 295 MHz DSP controllable via PC or smartphone app
Smooth and Stable: Soft-Clipping ensures clean performance at 2 Ohm loads
Crystal-Clear Sound: Impressive 95dB Signal-to-Noise Ratio
Full-Range Fidelity: Wide Frequency Response from 15 Hz to 22 kHz (-3dB)
Ultra-Low Distortion: Just 0.05% THD at 1 kHz, 4 Ohms, 90% Power
Total Input Control: Individually adjustable sensitivity (Ch 1–8, Ch 9–10, AUX) with Clipping LEDs
Wireless Freedom (Optional): Add BTS, BTS-HD, or BTA2 Bluetooth® dongles for streaming and DSP app control
Take Command (Optional): DRC1 digital remote with OLED display puts full DSP control at your fingertips

Additional Information

Brand	Musway
Model	M10
Condition	Brand New
RMS Power Handling	8x155+2x220
Frequency Response	5-22000
Number of Channels	10
Amplifier Class	D
Fuse Rating	2x40

Amplifier Type: 10-Channel Full-Range Class-D Amplifier

Built-In DSP: 14-Channel Digital Signal Processor

Power Output @ 4 Ohms: 80W RMS x 8 + 120W RMS x 2

Power Output @ 2 Ohms: 135W RMS x 8 + 220W RMS x 2

Dynamic Headroom Technology: Up to 155W RMS x 8 + 220W RMS x 2 at 2 ohms

Bridged Power @ 4 Ohms: 270W RMS x 4 + 440W RMS x 1

Frequency Response: 5 Hz–22 kHz

Signal-to-Noise Ratio: 95 dB (A-weighted)

Total Harmonic Distortion: 0.01%

Damping Factor: Greater than 100

High-Level Input Sensitivity (CH 1–8): 8–24V RMS

High-Level Input Sensitivity (CH 9–10): 8–32V RMS

Low-Level Input Sensitivity: 2–6V RMS

AUX Input Sensitivity: 1–8V RMS

Input Impedance (High-Level): 13 ohms

DSP Equalizer: 31-Band Parametric EQ, ±15 dB

Crossover Types: Bessel, Butterworth, Linkwitz-Riley

Crossover Slopes: 6–48 dB/octave

Time Alignment Delay: 0–17 ms

DSP Presets: 6 onboard presets

Operating Voltage: 7.6–17.3V DC

Fuses: 40A x 2

Dimensions (W x D x H): 280 x 166 x 45.5 mm

PC Connection: Micro USB

Bluetooth Streaming: Optional compatible MUSWAY Bluetooth USB dongle

Download Owner's Manual

What's In The Box

• 10-Channel Class-D Full Range DSP Amplifier

• 1.5 m USB Cable

• 24-pole Cable Adapter (High Level Inputs)

• 20-pole Cable Adapter (Speaker Outputs)

• Mounting Plate incl. Screws

• (2) 40 A replacement fuse

• 4 mm hex key

• Owner's Manual
