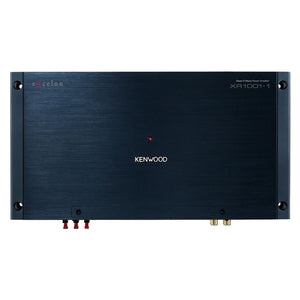

Kenwood XR1001-1 Excelon Series Class-D Mono Subwoofer Amplifier, 1000W RMS at 2 Ohms with Wired Remote Level Control

High-Performance Components for Clean Audio

The Kenwood Excelon XR1001-1 is a Class-D mono amplifier designed to deliver powerful subwoofer performance with attention to sound quality. Carefully selected capacitors and inductors in its LC filter help reduce unwanted noise and distortion, supporting clean, detailed audio reproduction.

Powerful Output for Deep Bass

Designed for dedicated subwoofer applications, the XR1001-1 delivers up to 1000 watts RMS at 2 ohms. Its Class-D amplifier design provides substantial power in a compact format, making it a practical option for building a powerful car audio system with deep, impactful bass.

Improved Signal-to-Noise Ratio

Kenwood has optimized the feedback design in the XR amplifier to improve its signal-to-noise ratio. According to the supplied product information, this design reduces noise levels by up to 40%. The included wired remote level control lets you conveniently adjust subwoofer output from your listening position.

Specialized Circuit Design for Reduced Interference

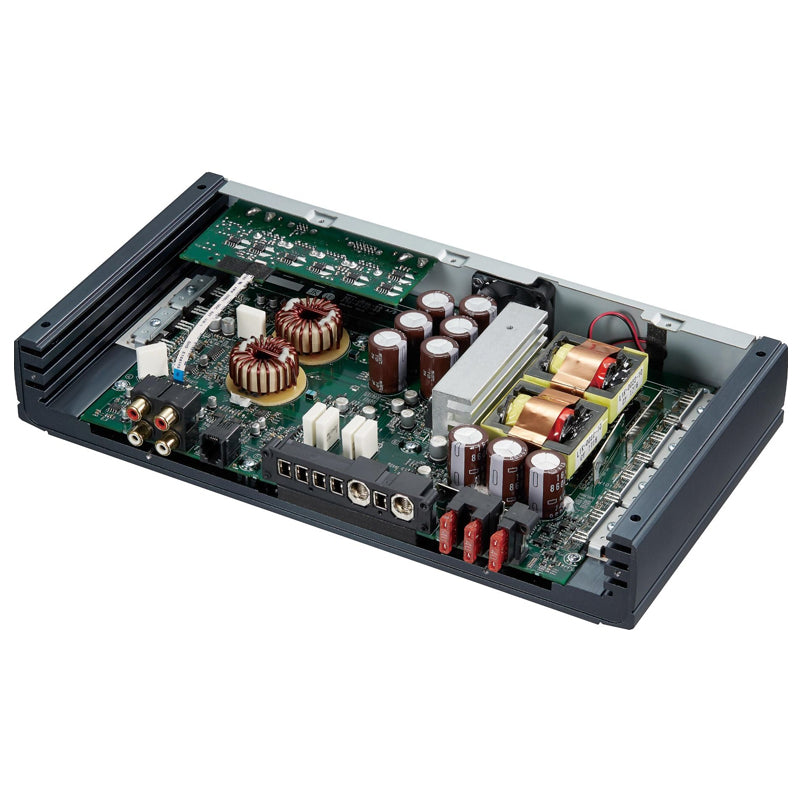

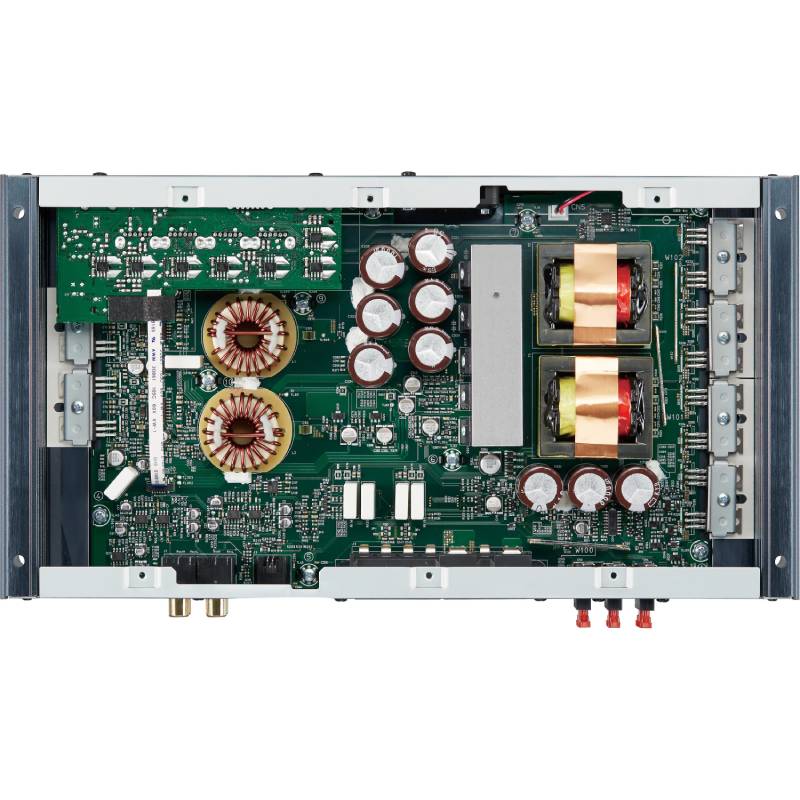

The amplifier uses a specialized circuit layout that separates the analog circuitry, digital amplifier circuitry, and power supply. This arrangement helps minimize interference between circuits, reducing unwanted noise and supporting reliable audio performance.

Kenwood XR1001-1 Key Features

1000W RMS at 2 Ohms
Delivers powerful output for compatible subwoofer systems.

Class-D Design
Provides high-power amplification in a compact format.

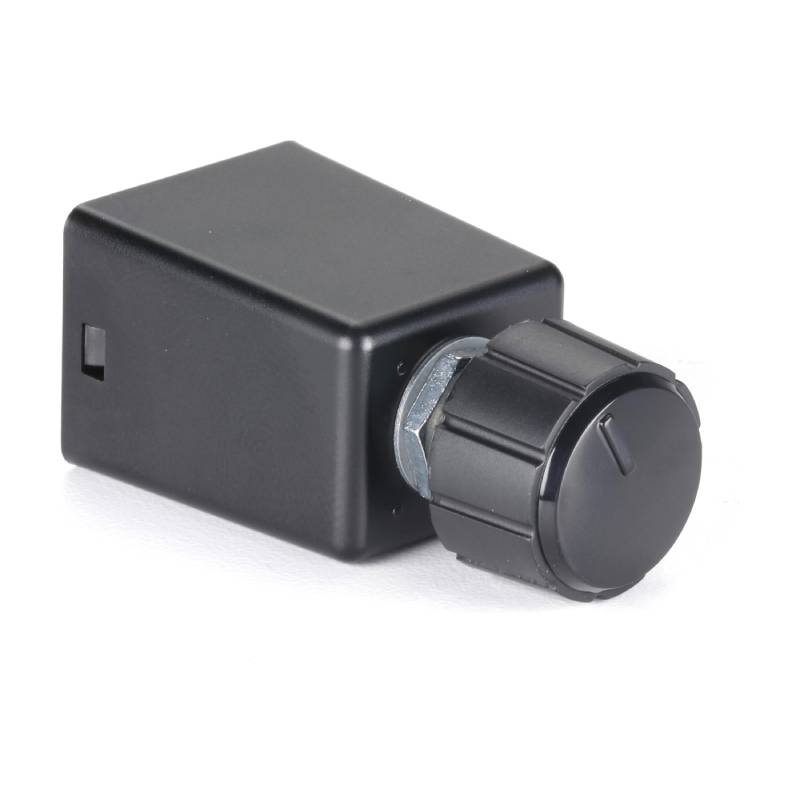

Wired Remote Level Control
Adjust subwoofer output conveniently from the listening position.

Optimized LC Filter
Selected capacitors and inductors help reduce noise and distortion.

Noise Reduction Design
Specialized circuit separation helps minimize electrical interference.

Installation Hardware Included
Includes mounting screws, hardware, fuses, tools, and remote cable.

Bring Powerful, Controlled Bass to Your Audio System

Upgrade your subwoofer system with the Kenwood Excelon XR1001-1. Combining 1000 watts RMS of power at 2 ohms, a Class-D design, noise-reduction technology, and a convenient wired remote level control, this mono amplifier is built for drivers seeking powerful bass and refined audio performance.

High-Power Class D Amplifier:Delivers powerful, efficient bass performance with 500 watts RMS at 4 ohms and 1,000 watts RMS at 2 ohms.
Dual ΣDrive Technology: Designed to enhance amplifier performance and deliver strong, controlled bass output.
Speaker-Level Input: Connects directly to compatible factory audio systems without requiring RCA preamp outputs.
Signal-Sensing Turn-On:Automatically powers on when an audio signal is detected, simplifying installation.
Wired Remote Bass Control: Adjust subwoofer output conveniently from the driver's seat.
Variable Low-Pass Filter: Adjustable from 50Hz to 200Hz with a 24dB/octave slope for precise bass frequency control.
Adjustable Infrasonic Filter: Variable from 15Hz to 40Hz to reduce unwanted ultra-low frequencies and help protect the subwoofer.
Powerful Bass Boost: Adds up to +18dB of boost at 40Hz for customizable low-frequency impact.

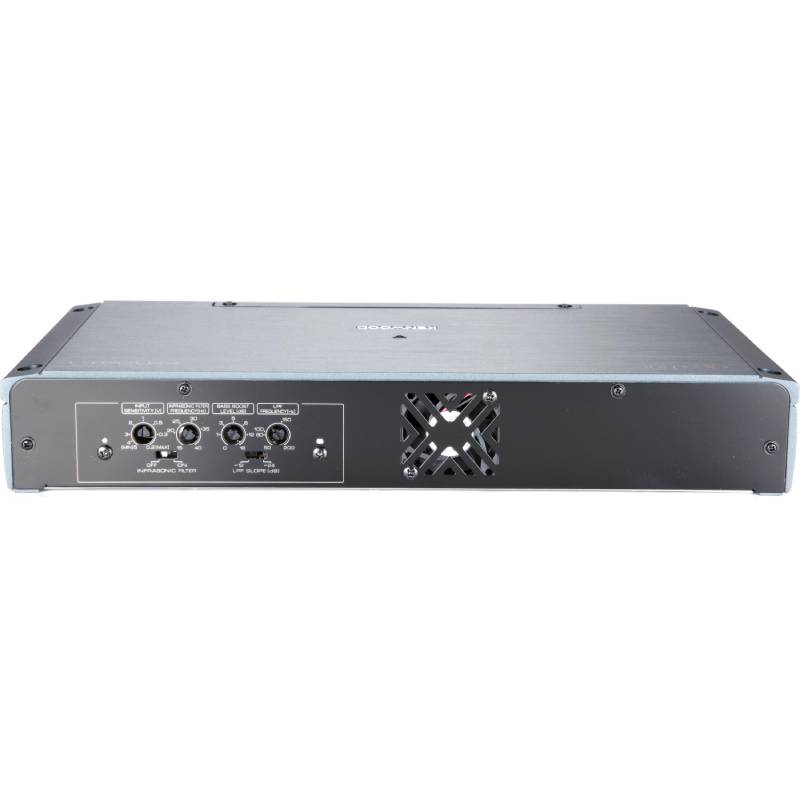

Advanced Cooling System:Features a built-in cooling fan and extruded aluminum heat sink to help manage operating temperatures.
Power MOS-FET Switching Supply:Provides efficient power delivery for consistent amplifier performance.
High-Performance Internal Components:Specially selected capacitors and inductors help reduce noise and distortion for improved audio quality.
Optimized Signal-to-Noise Ratio: A 100dB signal-to-noise ratio helps deliver cleaner sound with reduced background noise.
Specialized Circuit Design: Separates analog, digital amplifier, and power supply circuits to minimize interference.

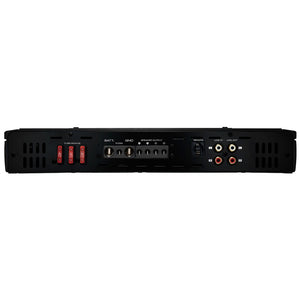

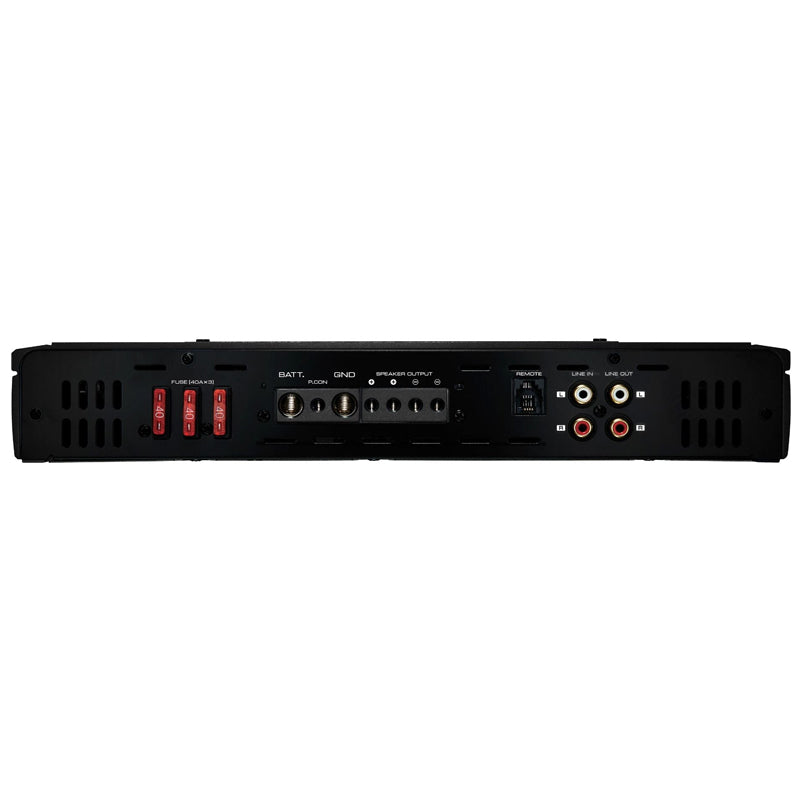

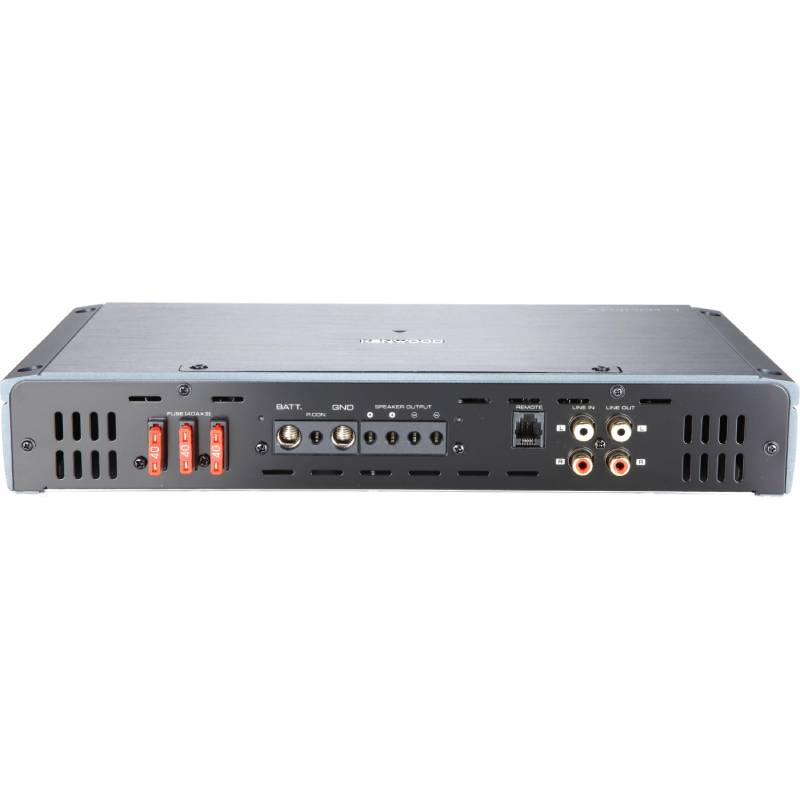

Line Output Terminals: Allows signal routing to additional compatible audio equipment.
Protective Terminal Cover: Helps protect electrical connections during installation.
Compact Installation Design:Measures approximately 12-5/8 inches wide, making it suitable for a variety of vehicle audio setups.

Additional Information

Brand	Kenwood
Model	XR1001-1
Condition	Brand New
RMS Power Handling	1x1000
Maximum Power	2000
Frequency Response	20-200
Number of Channels	1
Amplifier Class	D
Fuse Rating	1x120

Amplifier Class: Class D
Version: 2-ohm model
Channels: 1 (Mono)
RMS Power Output at 4 Ohms: 500 watts × 1 channel
RMS Power Output at 2 Ohms: 1,000 watts × 1 channel
RMS Power Output at 1 Ohm: Not available
Maximum Power Output: 800 watts (as listed; verify with the manufacturer, since this conflicts with the stated 1,000W RMS rating at 2 ohms)
Input Impedance: 10,000 ohms
Signal-to-Noise Ratio: 100dB
Frequency Response: 20Hz–200Hz
Variable Low-Pass Filter: 50Hz–200Hz, 24dB/octave
Infrasonic Filter: 15Hz–40Hz, −24dB/octave
Bass Boost: 0dB to +18dB at 40Hz
Input Sensitivity (Low-Level): 0.2V–5V
Input Sensitivity (High-Level): 4V–12V
Total Harmonic Distortion: Less than 1%
Fuse Rating: 40A × 3
Cooling: Built-in fan and extruded aluminum heat sink
Dimensions (W × H × D): 12-5/8 × 2 × 6-5/8 inches (320 × 51 × 169mm)
Remote Control: Wired remote level control included

Download Owner's Manual

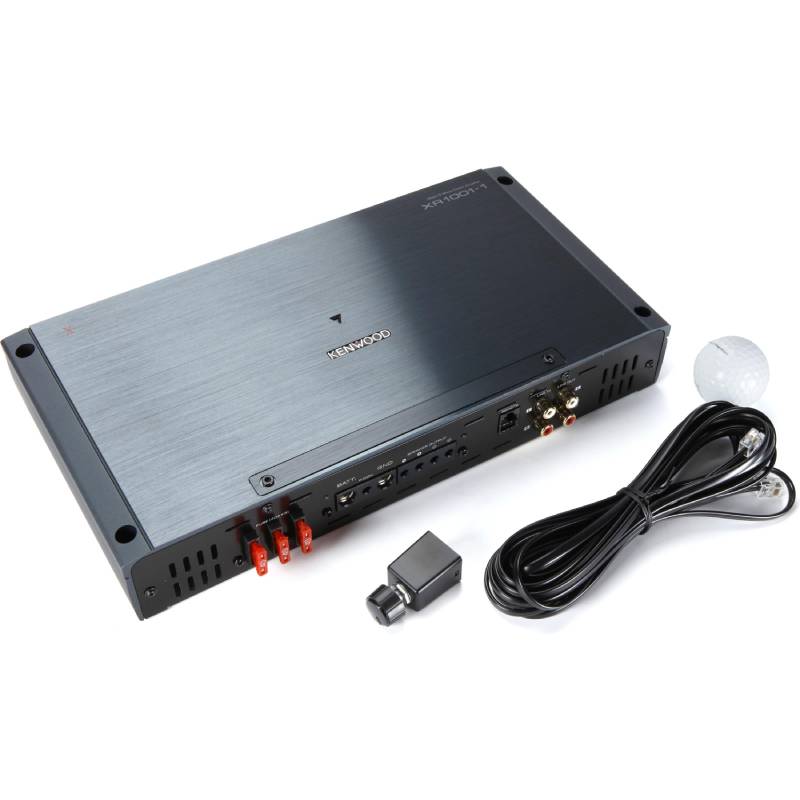

What's In The Box

• Mono subwoofer amplifier

• (3) 40-amp ATO fuses (installed)

• Remote Commander

• Flat washer

• Hex nut

• 20' Remote cable (RJ-14 modular plugs on each end)

• 4mm Allen wrench

• 2.5mm Allen wrench

• (4) 5/8" Self-tapping screws

• Warranty card

• Owner's Manual
