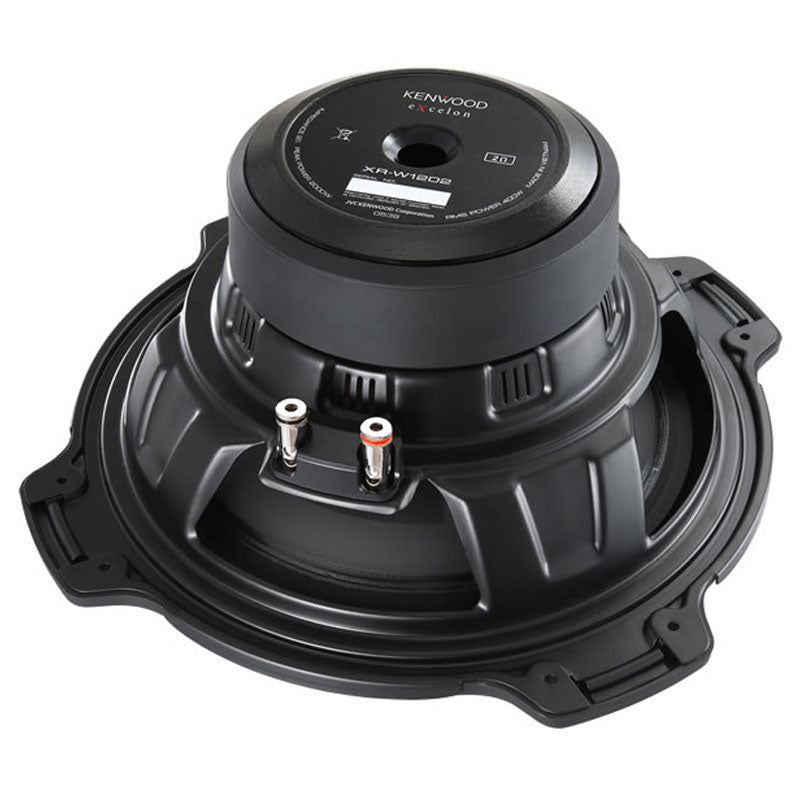

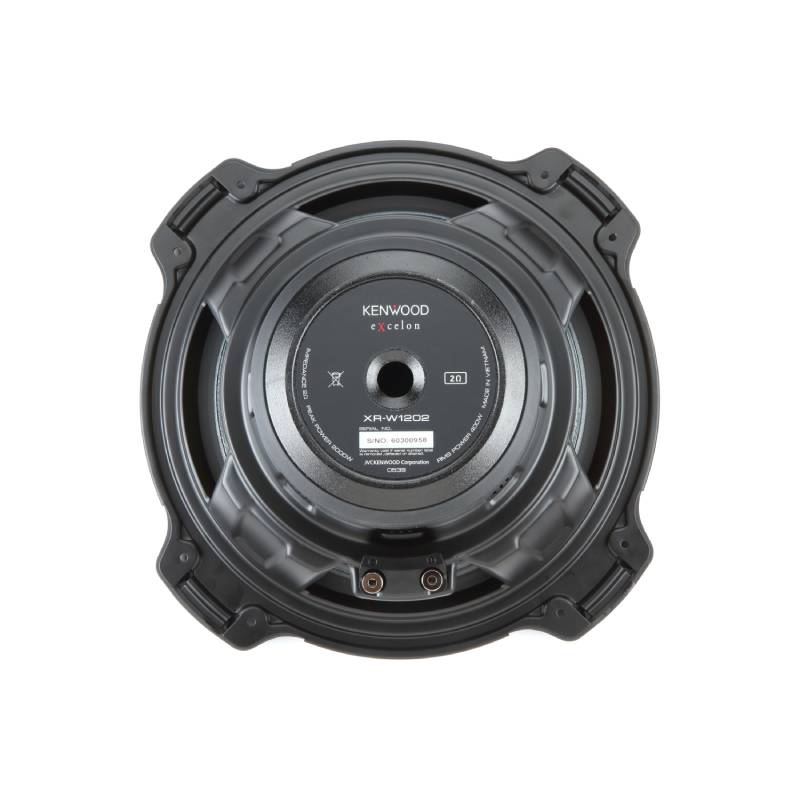

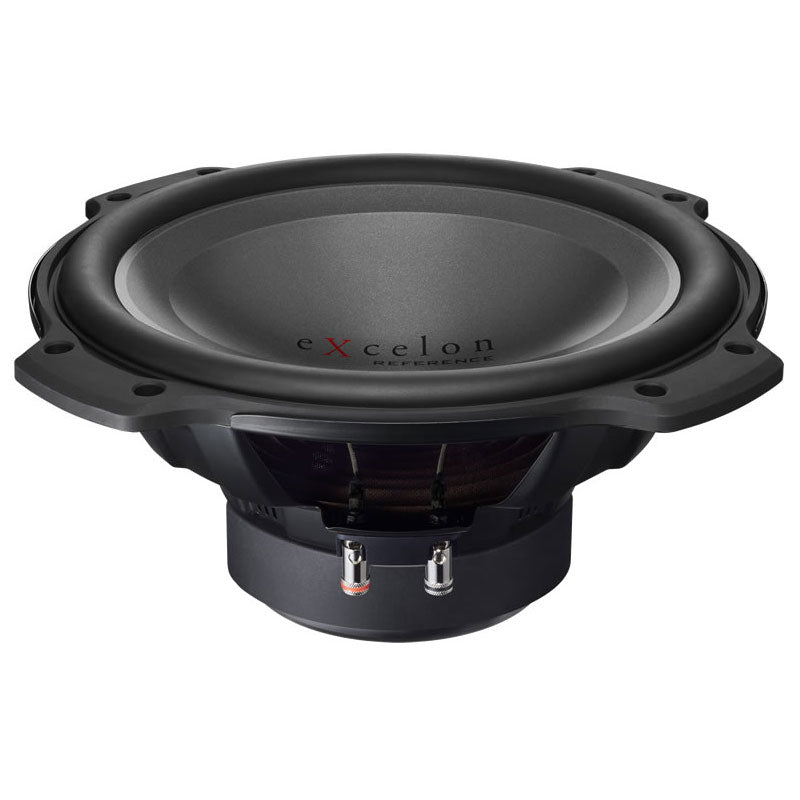

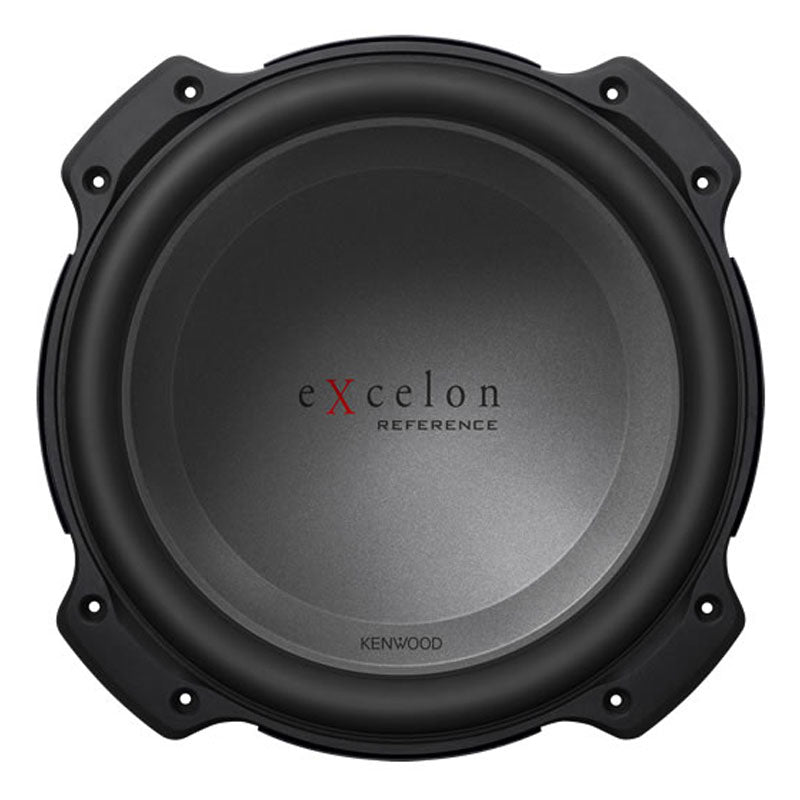

Kenwood XR-W1202

Name: Kenwood XR-W1202
Brand: Kenwood
SKU: XR-W1202
Price: 203.15 USD
Availability: InStock

In Stock

Excelon Series 12" 2000W Peak Power Handling at 2-Ohms, Single Voice Component Car Subwoofer

Part No.-XR-W1202

$203.15

30 Days Returns Accepted.
Lifetime Tech Support Included.
Free Shipping up to $45.

Reserve Yours Now

Reserve yours from the next batch. Charged at checkout, shipped in order received.

Out of stock

One email the moment stock lands, nothing else.
Waitlist is notified in the order it was joined.
Unsubscribe from the email itself, one click.

SKU :XR-W1202

Brand :Kenwood

Fit Guide. Check if it will fit your car.
We Price Match! Call Us! +1 (310) 594-8918

Kenwood XR-W1202 Excelon Series 12" 2000W Peak Power Handling, Single 2-Ohm Voice Coil Component Car Subwoofer

Deep, Powerful Bass Performance

The Kenwood Excelon XR-W1202 is a 12-inch car subwoofer designed to deliver impactful bass and enhance your in-car listening experience. With a peak power handling capacity of 2000 watts and an RMS rating of 400 watts, it provides strong low-frequency performance for music that demands depth and authority.

Reinforced Polypropylene Cone

The 12-inch polypropylene cone combines rigidity with responsive movement for accurate bass reproduction. Reinforcing ribs help support the cone structure, while the rubber surround helps control cone excursion and reduce unwanted distortion. Together, these components contribute to deep, controlled bass output.

Single 2-Ohm Voice Coil Configuration

The XR-W1202 features a single 2-ohm voice coil, allowing system designers to plan an amplifier setup around its specified impedance. Its 400-watt RMS power handling and 2000-watt peak rating make it a powerful option for compatible car audio systems.

Strong Magnetic Circuit and Durable Steel Basket

The stamped steel basket provides structural stability and helps minimize unwanted resonance. Kenwood's magnetic circuit design supports heat dissipation during operation, helping the subwoofer maintain consistent performance. The suspension system is designed to support controlled cone movement for dependable bass reproduction.

Kenwood XR-W1202 Key Features

12-Inch Subwoofer
Large cone area designed for deep, impactful low-frequency output.

2000W Peak Power
Handles up to 2000 watts peak power.

400W RMS
Rated for 400 watts RMS power handling.

Single 2-Ohm Voice Coil
Provides a defined impedance for compatible amplifier matching.

Polypropylene Cone
Reinforced cone construction supports rigidity and accurate bass response.

Rubber Surround
Helps control cone movement and reduce distortion.

Stamped Steel Basket
Provides structural support and helps minimize resonance.

Installation Accessories
Includes mounting screws, foam gasket, cardboard template, and warranty information.

Experience Powerful Bass with Kenwood Excelon

Build a stronger low-frequency foundation for your car audio system with the Kenwood Excelon XR-W1202. Its 12-inch reinforced polypropylene cone, single 2-ohm voice coil, and 400-watt RMS power handling combine to deliver substantial bass performance for compatible subwoofer installations.

Oversized 12-Inch Cone Design: Experience bold, hard-hitting bass with the Kenwood Excelon XR-W1202, featuring an oversized 12-inch cone engineered to deliver powerful low-frequency performance for your car audio system.
High-Impact Bass Performance: Enjoy up to 2,000 watts peak power and 400 watts RMS handling, delivering the punch and depth you need to bring your favorite music to life.
Optimized 2-Ohm Impedance: Designed with a nominal 2-ohm impedance, this subwoofer offers flexible system integration when paired with a compatible amplifier.
Rigid Polypropylene Cone: The durable PP cone provides a solid foundation for responsive bass reproduction, helping maintain control and clarity during demanding playback.
Reinforcing Cone Ribs: Specially designed cone ribs enhance structural rigidity, helping the oversized cone maintain stability during powerful bass output.
Dual Ventilation System: Engineered ventilation helps manage heat buildup during operation, supporting consistent performance during extended listening sessions.
Stress-Free Damper Design: The specialized damper helps control cone movement and supports smooth, reliable operation when the bass gets intense.
Durable Rubber Surround: Built with a flexible rubber surround that supports cone movement while helping maintain dependable performance over time.
Heavy-Duty Steel Basket: The sturdy steel basket provides a stable mounting structure designed to support the subwoofer during demanding use.
Powerful Ferrite Magnet: The ferrite magnet delivers the magnetic force needed for controlled, responsive subwoofer performance.
Protective Rubber Magnet Cover: The rubber magnet cover adds a finished appearance while providing an extra layer of protection for the magnet assembly.
Convenient 8 AWG Push Terminals: Designed with 8-gauge-compatible push terminals for a secure, convenient speaker wire connection.
Deep Low-Frequency Response: With a frequency response of 33 Hz to 300 Hz, this subwoofer is built to reproduce the deep lows and impactful bass that make every drive more exciting.
Built for Custom Car Audio Systems: Ideal for bass enthusiasts looking to upgrade their sound system with a high-performance subwoofer that combines robust construction and powerful low-frequency output.

Additional Information

Brand	Kenwood
Model	XR-W1202
Condition	Brand New
Diameter	12
RMS Power Handling	400
Peak Power Handling	2000
Maximum Power	2000
Impedance	2
Frequency Response	33-300
Sensitivity	81
Number of Voice Coils	Single
Shallow Mount	No

Subwoofer Type: Car Audio Subwoofer
Woofer Size: Oversized 12 Inches
Nominal Impedance: 2 Ohms
Peak Power Handling: 2,000 Watts
RMS Power Handling: 400 Watts
Recommended RMS Power Range: 200–400 Watts
Frequency Response: 33 Hz – 300 Hz
Sensitivity: 81 dB
Diaphragm Material: Polypropylene (PP)
Surround Material: Rubber
Basket Material: Steel
Magnet Type: Ferrite
Ventilation System: Dual Ventilation System
Cone Design: Oversized Cone with Reinforcing Ribs
Damper Design: Stress-Free Damper
Magnet Cover: Rubber
Speaker Terminals: 8 AWG Push Terminals

What's In The Box

• (1) 10" Subwoofer

• Eight 1-3/8" Screws

• Adhesive backed foam gasket

• Cardboard template

• Warranty information

• Specs on box lid

• Owner's Manual
