Kenwood KFC-XW1241HP

Name: Kenwood KFC-XW1241HP
Brand: Kenwood
SKU: KFC-XW1241HP
Price: 152.15 USD
Availability: InStock

In Stock

Excelon Series 12" 2000W Peak Power Handling at 4-Ohms, Single Voice Coil Component Subwoofer

Part No.-KFC-XW1241HP

$152.15

30 Days Returns Accepted.
Lifetime Tech Support Included.
Free Shipping up to $45.

Reserve Yours Now

Reserve yours from the next batch. Charged at checkout, shipped in order received.

Out of stock

One email the moment stock lands, nothing else.
Waitlist is notified in the order it was joined.
Unsubscribe from the email itself, one click.

SKU :KFC-XW1241HP

Brand :Kenwood

Fit Guide. Check if it will fit your car.
We Price Match! Call Us! +1 (310) 594-8918

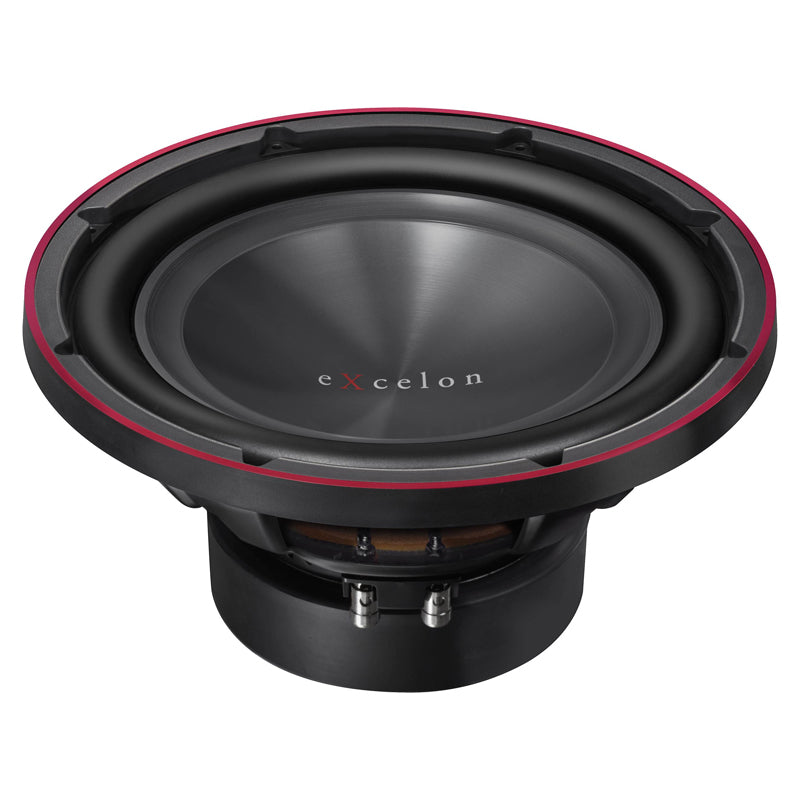

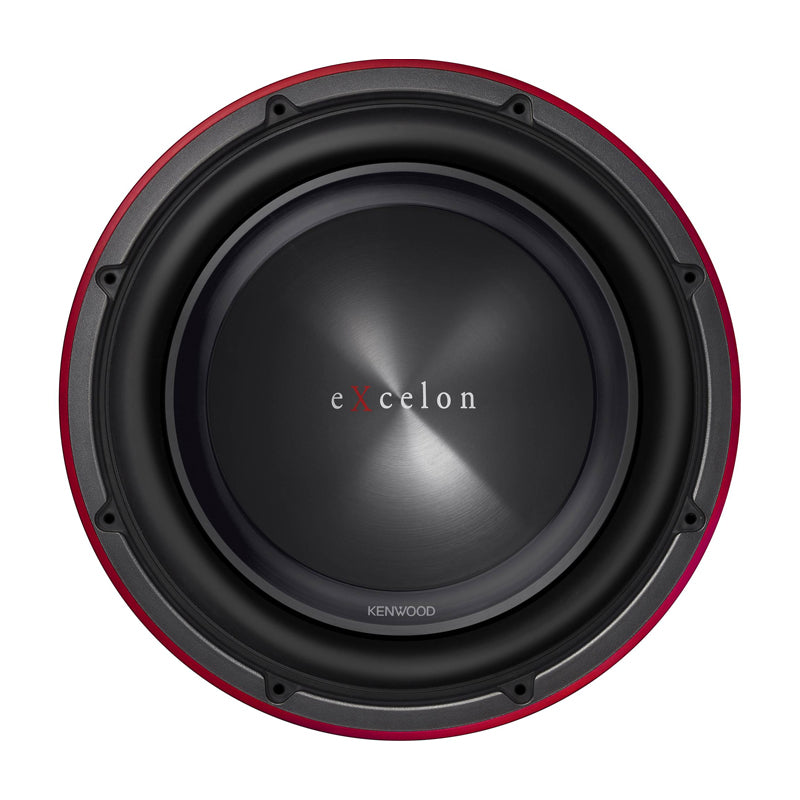

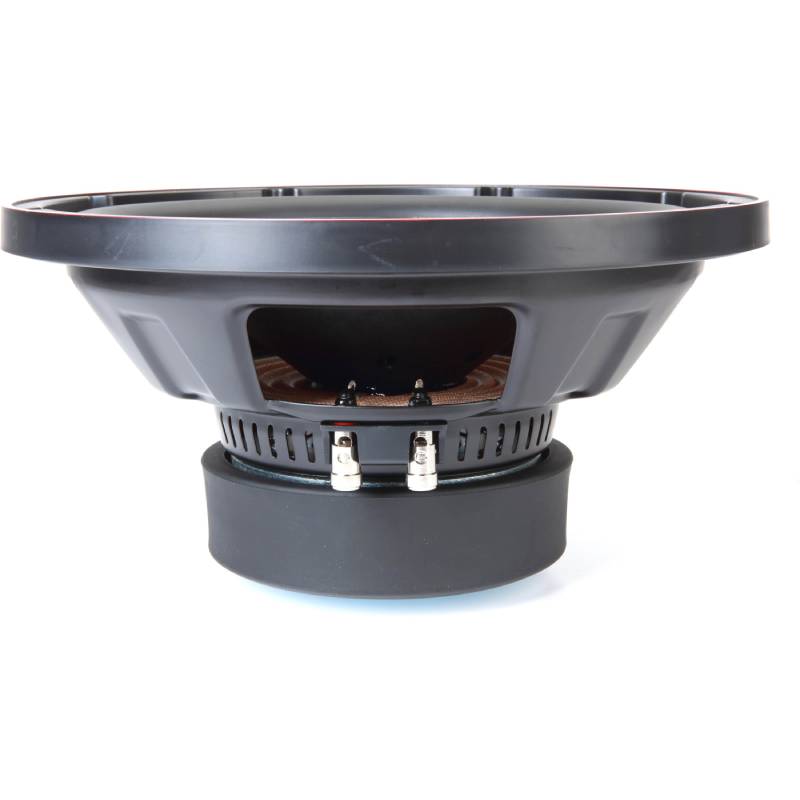

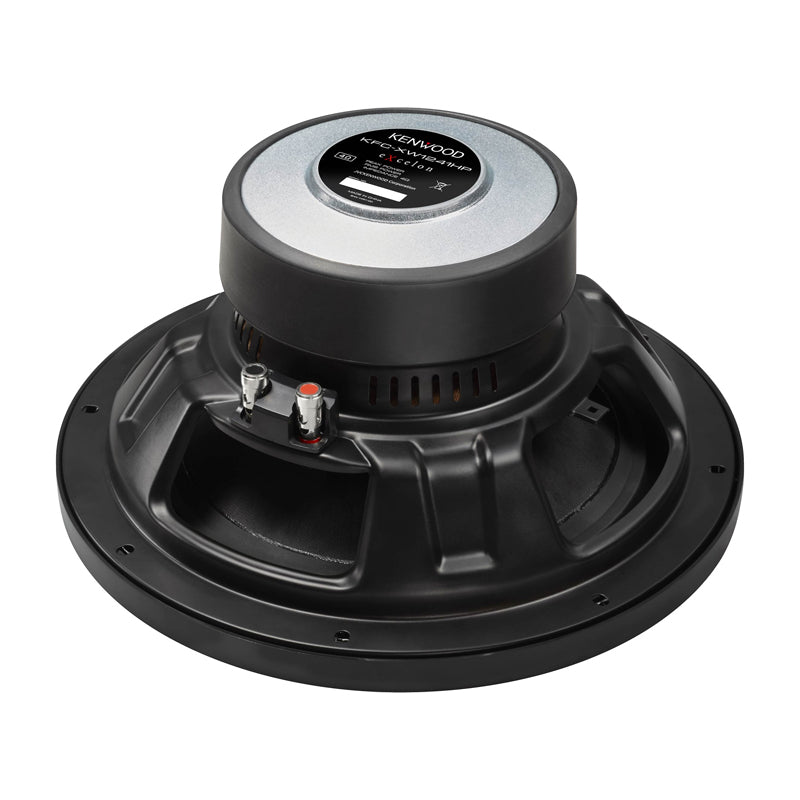

Kenwood KFC-XW1241HP Excelon Series 12" 500W RMS Subwoofer, 2000W Peak, 4-Ohm Single Voice Coil Component Car Subwoofer

Powerful and Accurate Bass Performance

The Kenwood Excelon KFC-XW1241HP is a 12-inch high-performance component subwoofer designed to deliver powerful, accurate bass for car audio systems. With 500 watts RMS power handling and 2000 watts peak power handling, it provides impactful low-frequency performance. Its frequency response of 26 Hz to 300 Hz supports deep bass reproduction across a wide range of low frequencies.

Injection-Molded Polypropylene Cone

The subwoofer features an injection-molded polypropylene cone designed for rigidity and low distortion. This construction helps reproduce bass with greater precision while delivering the depth and impact needed to enhance your favorite music.

Single Voice Coil Design

The single voice coil configuration provides flexibility when planning your car audio system. With appropriate amplifier matching and wiring, the KFC-XW1241HP can be integrated into different system designs to suit your desired bass performance.

Durable Construction and Heat Management

Built with a stamped steel basket and a large magnet structure, the KFC-XW1241HP is designed for durability and efficient power handling. A vented pole piece and heat-resistant voice coil help dissipate heat during demanding playback, supporting consistent performance during extended listening sessions.

Kenwood KFC-XW1241HP Key Features

12-Inch Subwoofer
Excelon Series component subwoofer

500W RMS Power
Handles continuous power for demanding bass performance

2000W Peak Power
High peak power handling capability

4-Ohm Impedance
Single voice coil configuration

26 Hz to 300 Hz
Frequency response for low-frequency reproduction

Polypropylene Cone
Injection-molded construction for rigidity and low distortion

Stamped Steel Basket
Durable construction for car audio installations

Heat Management
Vented pole piece and heat-resistant voice coil

Deep Bass. High Power. Excelon Performance.

Bring more depth and impact to your car audio system with the Kenwood KFC-XW1241HP Excelon Series 12-inch subwoofer. Its high power handling, rigid polypropylene cone, and durable construction are designed to deliver powerful, accurate bass for your custom audio setup.

Powerful 12-Inch Subwoofer: Adds deep, impactful bass to your car audio system with a 12-inch, 4-ohm component subwoofer.
High Power Handling: Delivers 500 watts RMS and up to 2,000 watts peak power for dynamic bass performance.
Rigid Polypropylene Cone: Features a two-piece polypropylene-over-paper cone designed to provide durability and controlled bass reproduction.
Durable Urethane Surround: Helps maintain cone movement for consistent performance during demanding listening sessions.
Deep Bass Response: Covers a frequency range of 26 Hz to 300 Hz to bring out powerful low-frequency details in your music.
Single Voice Coil Design: Uses a single 4-ohm voice coil for straightforward amplifier matching and system configuration.
Flexible Enclosure Options: Supports sealed and ported box designs, allowing you to tailor bass response to your listening preferences.
Optimized Sealed Enclosure: Recommended sealed box volume of 1.25 cubic feet for balanced, controlled bass.
Enhanced Ported Enclosure Performance: Recommended ported box volume of 1.5 cubic feet for a more forceful bass response.
Durable Construction: Features a stamped steel basket, substantial magnet structure, vented pole piece, and heat-resistant voice coil for reliable operation.
Installation-Friendly Design: Requires a 10 15/16-inch cutout diameter and approximately 5 7/8 inches of top-mount depth.

Additional Information

Brand	Kenwood
Model	KFC-XW1241HP
Condition	Brand New
Diameter	12
RMS Power Handling	500
Peak Power Handling	2000
Impedance	4
Frequency Response	26-300
Sensitivity	83
Number of Voice Coils	Single
Mounting Depth	5/13/2016

Subwoofer Size: 12 inches
Subwoofer Type: Component subwoofer
Impedance: 4 ohms
Voice Coil: Single voice coil
Cone Material: Polypropylene over paper
Surround Material: Urethane
RMS Power Handling: 500 watts
Peak Power Handling: 2,000 watts
Sensitivity: 83 dB (1 watt)
Frequency Response: 26 Hz–300 Hz
Top-Mount Depth: 5 7/8 inches
Cutout Diameter: 10 15/16 inches
Vas: 114 liters
Resonant Frequency (Fs): 20.5 Hz
Total Q (Qts): 0.268
Xmax: 7.8 mm

What's In The Box

• (1) 12" Subwoofer

• Trim ring

• (8) 1-3/8" Screws

• Adhesive backed foam gasket

• Connection guide

• Template on box lid

• Specs printed on the box

• Owner's Manual
