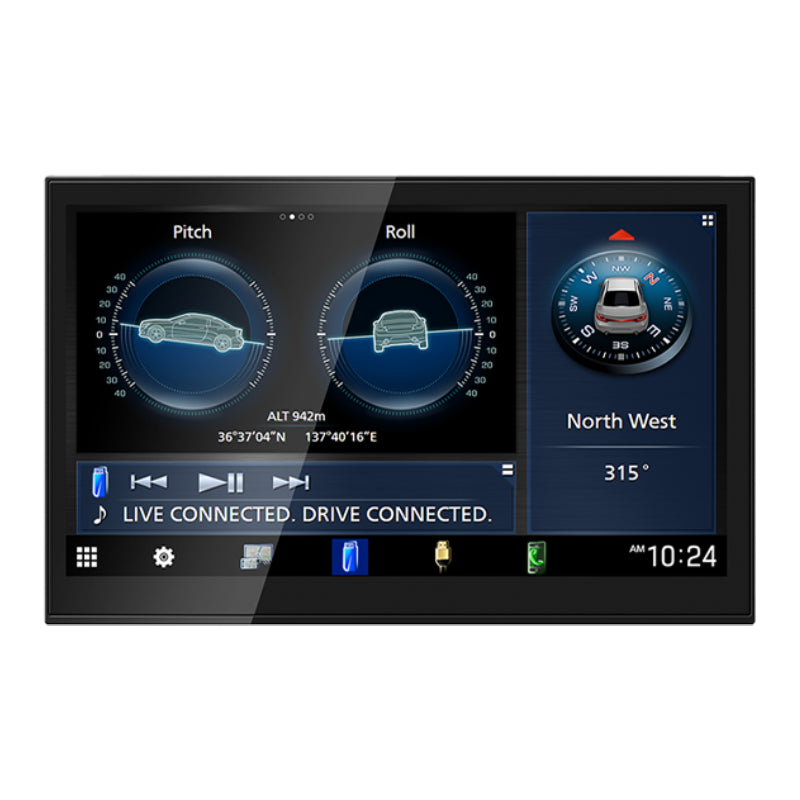

Kenwood DAX800XR

Name: Kenwood DAX800XR
Brand: Kenwood
SKU: DAX800XR
Price: 799.0 USD
Availability: InStock

In Stock

1-DIN Direct Replacement 8" Touchscreen Digital Multimedia Receiver with Wired/Wireless Apple CarPlay™ & Wired/Wireless Android Auto™, SiriusXM™ Ready, and Built-In Bluetooth®

Part No.-DAX800XR

$799.00

30 Days Returns Accepted.
Lifetime Tech Support Included.
Free Shipping up to $45.

Reserve Yours Now

Reserve yours from the next batch. Charged at checkout, shipped in order received.

Out of stock

One email the moment stock lands, nothing else.
Waitlist is notified in the order it was joined.
Unsubscribe from the email itself, one click.

SKU :DAX800XR

Brand :Kenwood

Fit Guide. Check if it will fit your car.
We Price Match! Call Us! +1 (310) 594-8918

Kenwood DAX800XR 1-DIN Direct Replacement Digital Multimedia Receiver with 8" HD Touchscreen, Wireless/Wired Apple CarPlay and Android Auto, SiriusXM Ready, and Built-In Bluetooth

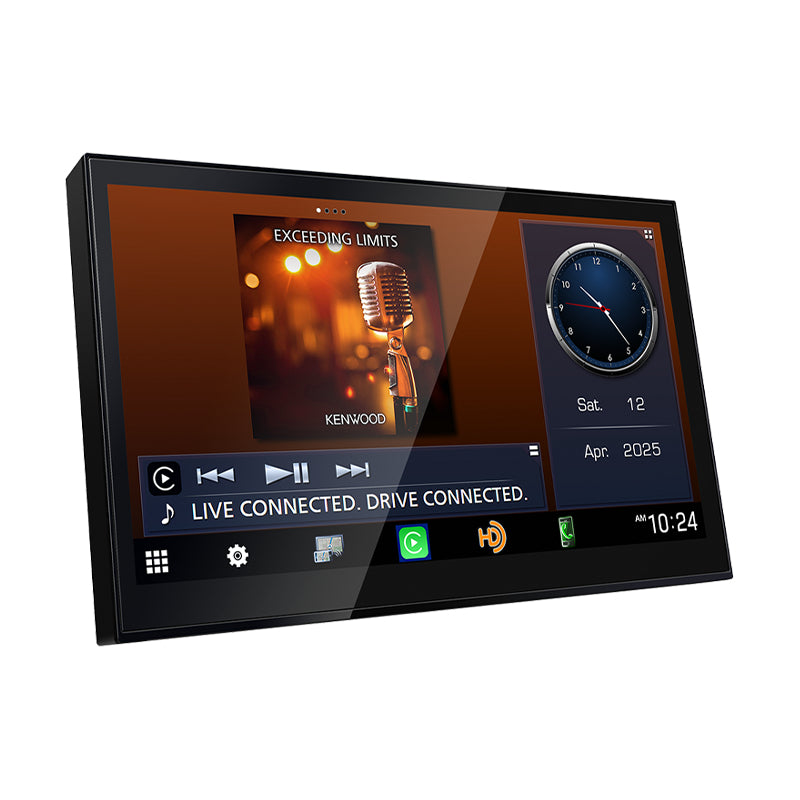

Flexible Installation and 8" HD Touchscreen

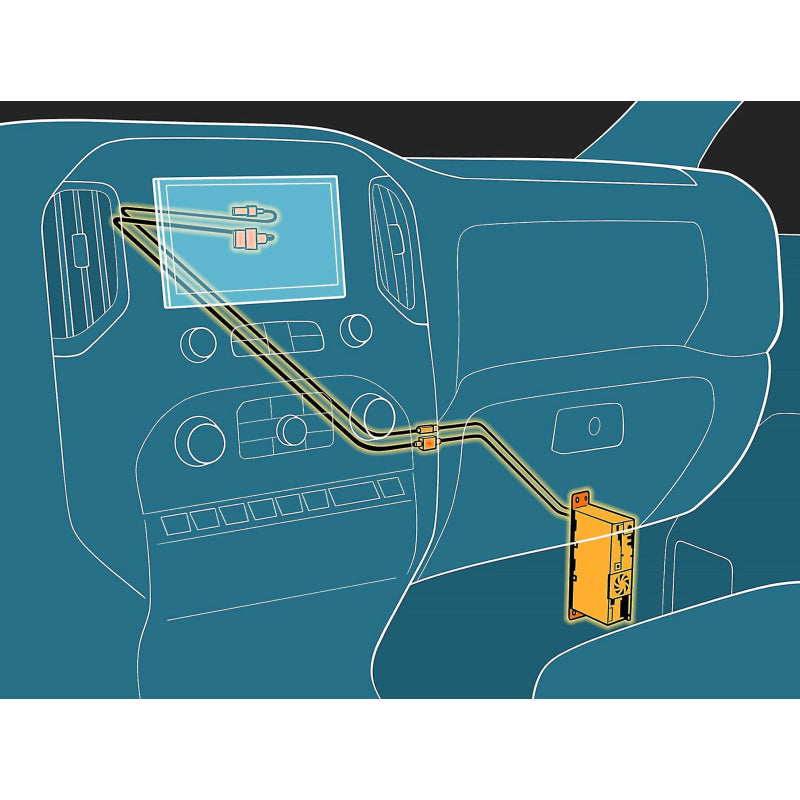

The Kenwood DAX800XR features a separated display and chassis design that supports flexible installation in vertical or horizontal orientations. Its 8-inch HD touchscreen offers a wide 170-degree viewing angle and anti-glare protection for convenient viewing. The display can also be extended using the optional 5-foot KCA-A150EX cable, sold separately.

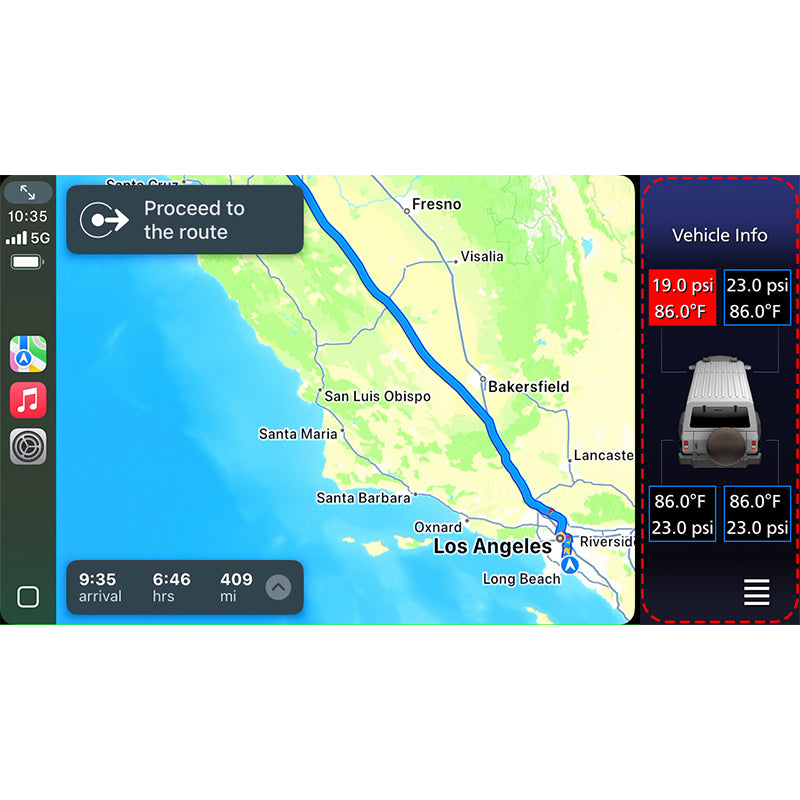

Wireless and Wired Apple CarPlay with Split-Screen Support

Connect your compatible iPhone using wireless or USB Apple CarPlay. Split-screen functionality allows you to view Apple CarPlay alongside a compatible Kenwood source, making it easier to access supported smartphone features while using your receiver.

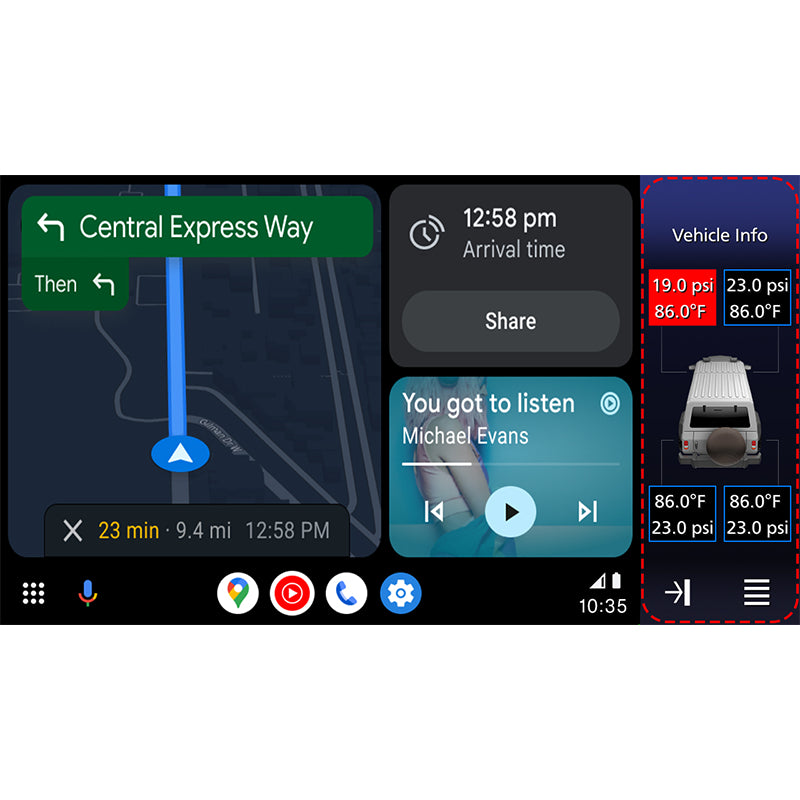

Wireless and Wired Android Auto with Split-Screen Support

The DAX800XR supports Android Auto through wireless or USB connections with compatible smartphones. Its split-screen functionality lets you view Android Auto alongside a Kenwood source, providing convenient access to supported navigation, communication, and entertainment features.

Smartphone Mirroring and Advanced Audio Tuning

Mirror and control supported smartphone apps wirelessly on select devices, or connect through HDMI using the optional KCA-HD200 cable. For audio customization, the receiver supports high-resolution Bluetooth audio streaming through LDAC, a 14-point parametric equalizer, a 13-band graphic equalizer, and time alignment to help fine-tune your listening experience.

Entertainment and Convenient Device Charging

Enjoy a range of entertainment options with SiriusXM 360L support and a built-in HD Radio tuner for digital AM and FM broadcasts. USB Type-C and USB Type-A ports provide charging capabilities up to 3.0A, while the included full-featured remote offers another convenient way to control the receiver.

Kenwood DAX800XR Key Features

Display
8-inch HD touchscreen

Installation
1-DIN design with separated display and chassis

Apple CarPlay
Wireless and wired connectivity with split-screen support

Android Auto
Wireless and wired connectivity with split-screen support

Bluetooth Audio
High-resolution LDAC streaming support

Audio Tuning
14-point parametric EQ, 13-band graphic EQ, and time alignment

Radio Entertainment
HD Radio tuner and SiriusXM 360L support

USB Connectivity
USB Type-C and USB Type-A with charging up to 3.0A

Viewing Experience
170-degree viewing angle and anti-glare protection

Included Accessory
Full-featured remote control

Flexible Installation. Smart Connectivity. Premium Audio.

Upgrade your dashboard with the Kenwood DAX800XR digital multimedia receiver. Featuring an 8-inch HD touchscreen, wireless and wired smartphone integration, split-screen functionality, advanced audio tuning, and versatile entertainment options, it brings convenient connectivity and personalized sound to your driving experience.

Flexible Installation: Separated display and chassis allows flexible vertical or horizontal installation
Extension Cable Option: KCA-A150EX 5ft extension cable available (sold separately)
High-Definition Display: 8" HD touchscreen with 1280 x 720 resolution and high luminance backlight
Wide Viewing Angle: 170° wide viewing angle with anti-glare protective film
Apple CarPlay® Wireless/USB: Wireless and USB Apple CarPlay® support
Apple CarPlay® Split Screen: Split-screen functionality with KENWOOD source
Android Auto™ Wireless/USB: Wireless and USB Android Auto™ support
Android Auto™ Split Screen: Split-screen functionality with KENWOOD source
Wireless Smartphone Mirroring: Display and control apps wirelessly on select smartphones
HDMI Smartphone Mirroring: HDMI mirroring via KCA-HD200 cable (sold separately)
Hi-Res Audio via Bluetooth: High-Resolution Audio Wireless via LDAC over Bluetooth
Parametric Equalizer: 14-point EQ with adjustable Q factor, slope, frequency, and gain
Graphic EQ & Time Alignment: 13-band graphic EQ with time alignment for enhanced staging
High-Quality Audio Components: Premium internal parts optimized for Hi-Res audio playback
Digital Optical Output: Connect DSP amplifiers for optimal sound performance
USB Multimedia Playback: Supports playback of audio and video in various formats
Vehicle Integration: Compatible with iDatalink Maestro RR/RR2 (sold separately)
Rear Camera Input: Includes adjustable parking guidelines
HD Camera Compatibility: Supports CMOS-740HD for 720P front/rear camera input
4 Camera Inputs: Connect rear, side, front, and dash cameras with smart switching options
Dash Cam Link: Compatible with DRV-N520 for Full HD recording and safety alerts
Customizable Home Screen: Driving Widget layout with EQ, compass, and album art display
SiriusXM Ready: Compatible with optional SiriusXM tuner (sold separately)
SiriusXM 360L Ready: Offers streaming content, sports, and personalized recommendations
Built-in HD Radio Tuner: Access CD-quality FM and FM-quality AM digital radio
USB Type-C Fast Charging: Includes USB-C and USB-A with 3.0A charging capability
Remote Control Included: Full-featured remote for convenient operation

Additional Information

Brand	Kenwood
Model	DAX800XR
Condition	Brand New

RMS Power (Manufacturer): 22 watts
RMS Power (CTA-2006): —
AUX Input: RCA (rear)
Audio/Video Input: Composite + RCA (rear), HDMI (rear)
USB Input: Rear (USB-C)
USB Port Power: 3A
Backup Camera Input: Yes
Second Camera Input: Yes
Camera Input (Marine): N/A
Preamp Outputs: 6-channel
Sub Preamp Outputs: Yes
Switchable Rear Preamp Outputs: No
Memory Card Slot: USB
iPhone Compatibility: iPhone 6S and newer
CarPlay: Wired or wireless
Siri Control: CarPlay only
Android Control: Yes
Android Auto: Wired or wireless
Alexa Voice Control: No
FM Sensitivity: 7.3 dBf
European Tuning: No
Seek/Scan: Seek
Radio Data System (RDS): Yes
Music File Playback: MP3, WMA, AAC, FLAC, WAV
High-Resolution Playback: WAV/FLAC (24-bit/192kHz)
Navigation Support: Apple CarPlay, Android Auto
Navigation Apps (iOS): Apple Maps, Google Maps, Waze
Navigation Apps (Android): Google Maps, Waze
Bluetooth Compatibility: Built-in
Bluetooth Version: 5.2
Satellite Radio Ready: SiriusXM 3.0 (360L)
HD Radio: Built-in
Video Screen: Yes
Preamp Voltage: 5V
Screen Size: 8"
Screen Type: Swipeable (Capacitive)
Display Color: —
Key Button Color: N/A
EQ Bands: 13
Wireless Remote: No
Steering Wheel Control Compatible: Adapter required

What's In The Box

• 8" Touchscreen Digital Multimedia Receiver

• Compatible Vehicle List

• Owner's Manual
