DRVN Series 4-Channel 600W Max Power, Class-D Compact Digital Amplifier featuring Bluetooth for Compact Car, Marine, UTV, and Motorcycle

Part No.-KS-DR2104DBT

$399.00

30 Days Returns Accepted.
Lifetime Tech Support Included.
Free Shipping up to $45.

Reserve Yours Now

Reserve yours from the next batch. Charged at checkout, shipped in order received.

Out of stock

One email the moment stock lands, nothing else.
Waitlist is notified in the order it was joined.
Unsubscribe from the email itself, one click.

SKU :KS-DR2104DBT

Brand :JVC

Fit Guide. Check if it will fit your car.
We Price Match! Call Us! +1 (310) 594-8918

JVC KS-DR2104DBT DRVN Series 4-Channel Class-D Compact Digital Amplifier with Bluetooth, 75W RMS x 4 at 2 Ohms, 600W Max Power

Compact amplification with wireless music streaming for car, marine, UTV, and motorcycle audio systems.

Compact Amplifier with Built-In Bluetooth

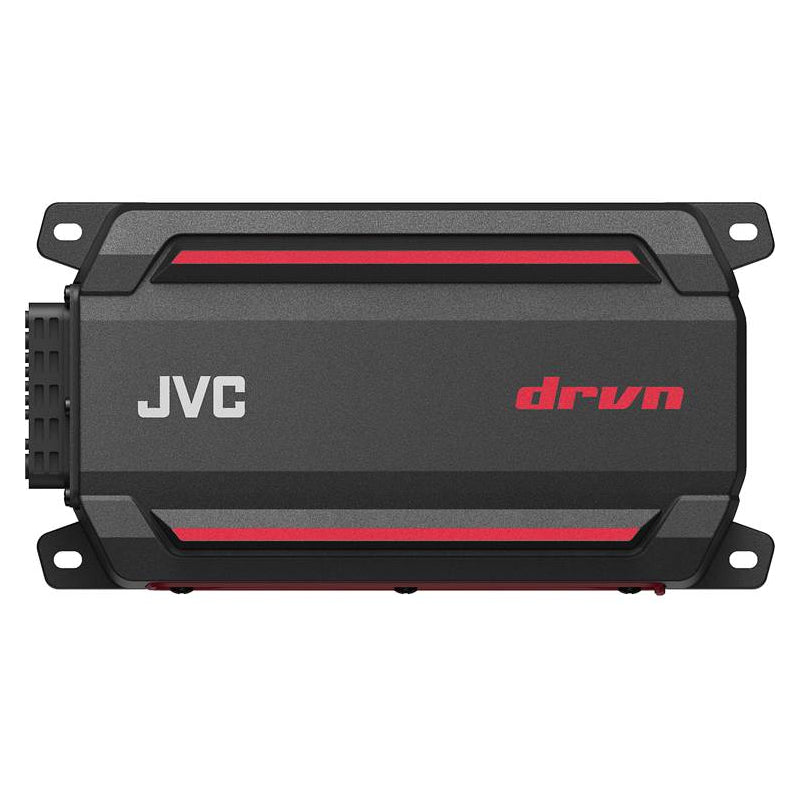

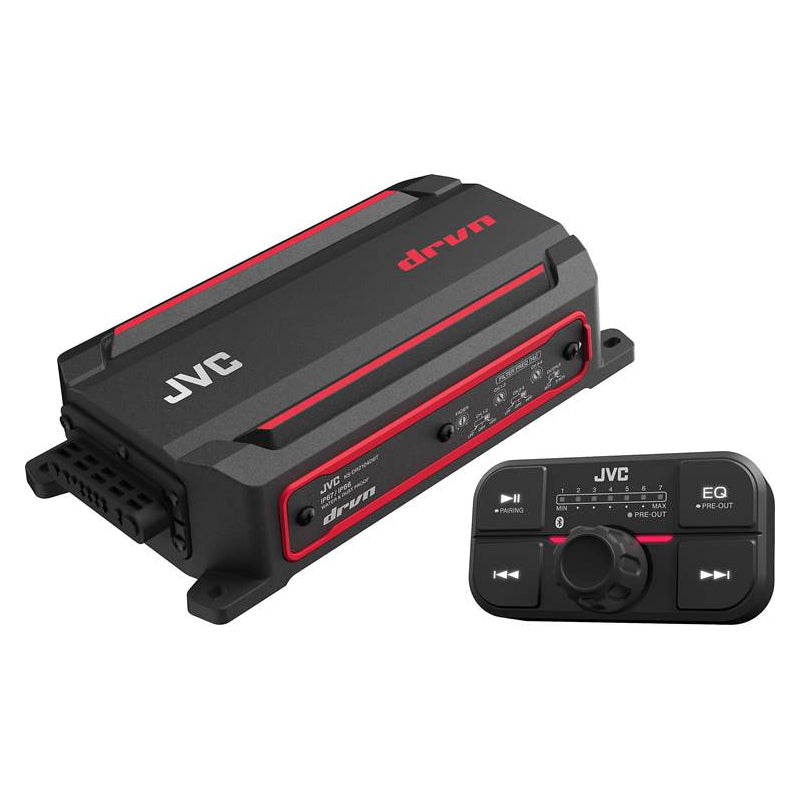

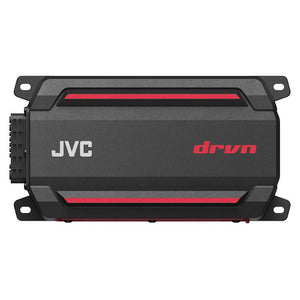

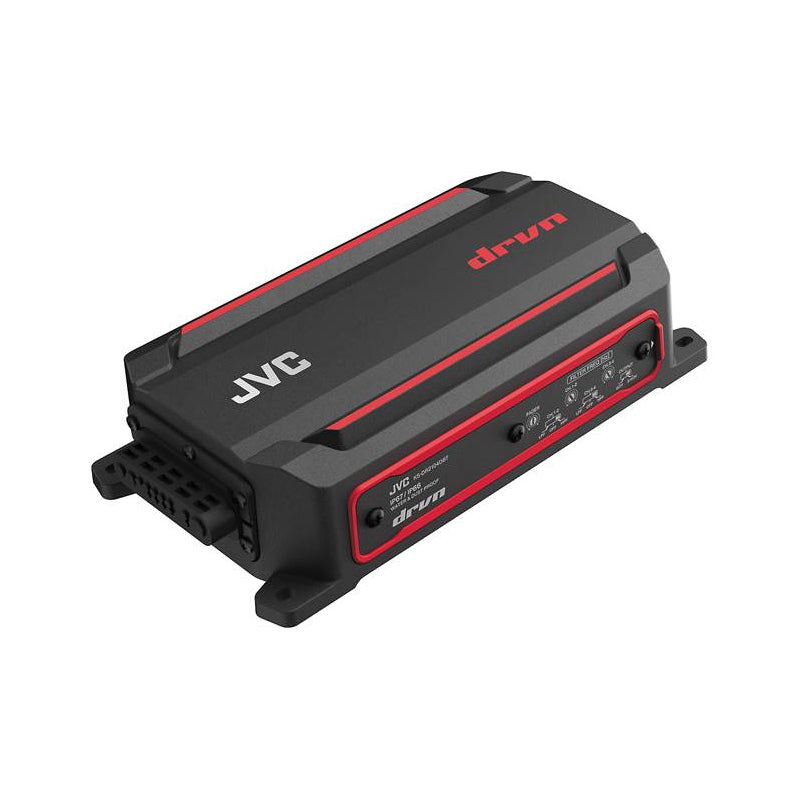

The JVC KS-DR2104DBT is a 4-channel Class-D amplifier from JVC's DRVN Series, designed to deliver powerful audio performance in a compact package. Its built-in Bluetooth allows compatible smartphones and other devices to connect wirelessly for convenient music streaming without requiring a separate wired audio connection.

Compact Design for Versatile Installation

Its compact design makes the KS-DR2104DBT suitable for installations where space is limited, including car, marine, UTV, and motorcycle audio systems. The amplifier is described as waterproof, dustproof, and rustproof, helping it withstand demanding environments.

Four-Channel Power Output

With a rated output of 75 watts RMS per channel at 2 ohms and 600 watts maximum power, this amplifier provides power for compatible multi-speaker audio configurations. Its four-channel design offers flexibility for building or upgrading a vehicle audio system.

Wireless Music Streaming

Stream your favorite music directly from a compatible Bluetooth-enabled smartphone or device. Built-in Bluetooth adds convenience to your audio setup by reducing the need for additional cables for music playback.

Adjustable Sound Settings

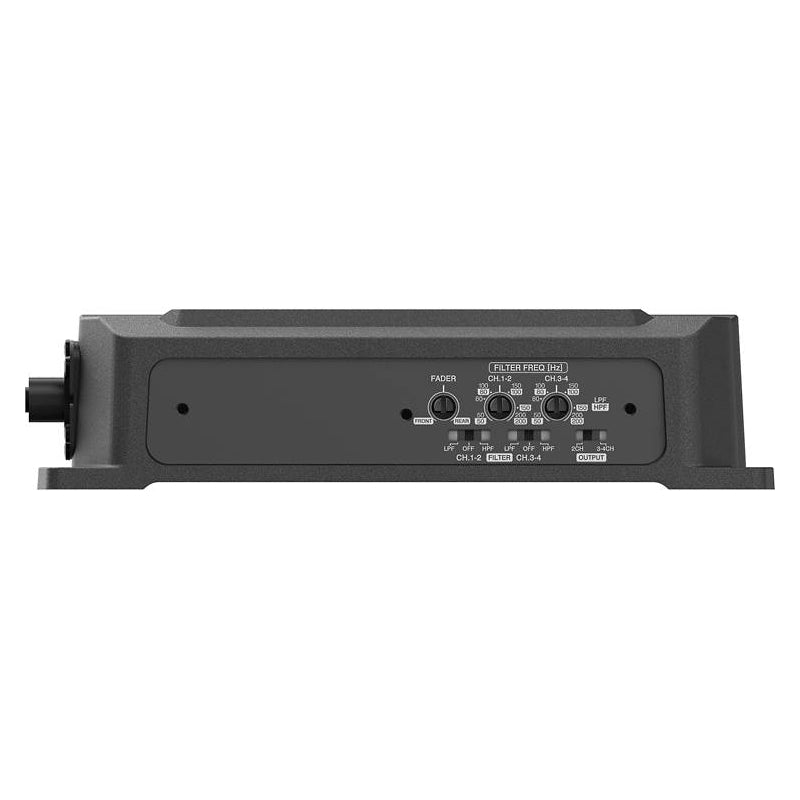

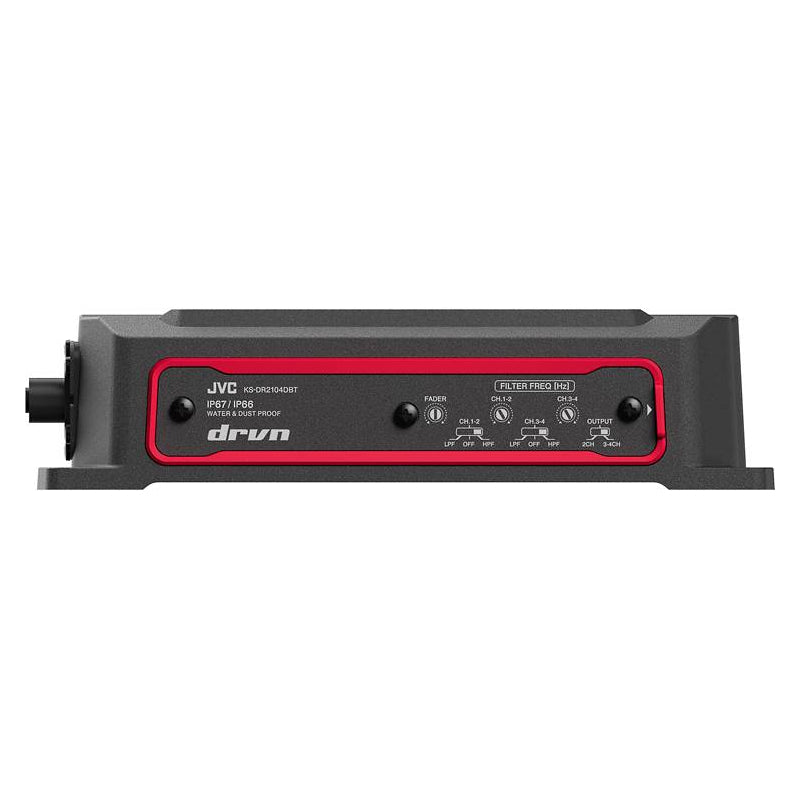

Variable high-pass and low-pass filters let you adjust the amplifier's output to suit your speaker configuration. These controls provide flexibility when tuning your system for your preferred sound and component setup.

JVC KS-DR2104DBT Key Features

Amplifier Type
4-channel Class-D digital amplifier

RMS Power
75W x 4 at 2 Ohms

Maximum Power
600W

Wireless Connectivity
Built-in Bluetooth

Sound Adjustment
Variable high-pass and low-pass filters

Compact Construction
Designed for space-conscious installations

Applications
Car, marine, UTV, and motorcycle audio

Environmental Protection
Described as waterproof, dustproof, and rustproof

Compact Power. Wireless Convenience. Versatile Performance.

Upgrade your vehicle audio system with the JVC KS-DR2104DBT DRVN Series amplifier. With four-channel power, built-in Bluetooth, adjustable sound filters, and a compact design, it delivers flexible audio performance for compatible car, marine, UTV, and motorcycle installations.

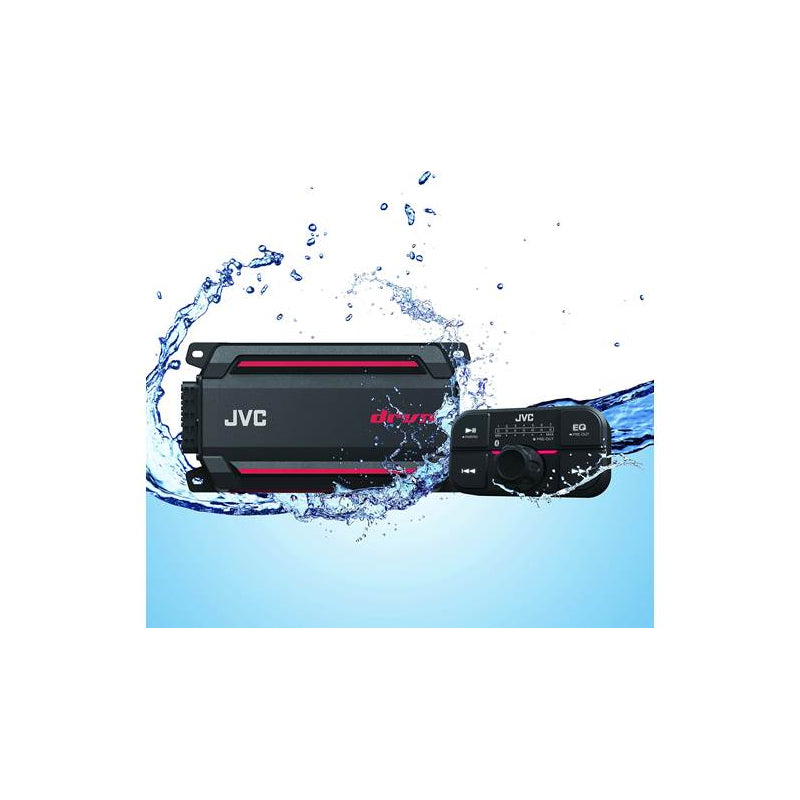

IPX6 Water Resistance: Protects against powerful water jets (up to 12.5mm) from any direction.
IPX7 Water Resistance: Safeguards against immersion in water up to 1 meter (3 feet, 3 inches) under defined pressure and time conditions.
IP6X Dust Resistance: Dust-tight design prevents dust entry, protecting internal components.
Drain Tunnel Structure: Creates a gap between the amplifier and the installation surface, preventing the accumulation of saltwater and sand for enhanced corrosion protection.
Salt-Spray Proof: Passes ASTM B117 salt spray (salt fog) corrosion test. Corrosion-resistant sealed cast aluminum chassis and stainless-steel screws provide maximum durability.
Vibration-Proof Design: Passes a 3-axis multi-frequency vibration test. The 15/64-inch die-cast mounting section, thick heat-transfer sheet, and aluminum die-cast heat sink minimize substrate vibration and resist damage.
Enhanced Power Output: Thicker terminal connections and increased wire size enable maximum current flow for better low-frequency response and cleaner output.
High-Quality Sound Components: PMLCAP (Polymer Multi-Layer Capacitors) reduce distortion for superior sound clarity at high volumes. Magnetic shielding for output coils minimizes radiated noise for smooth and accurate sound.

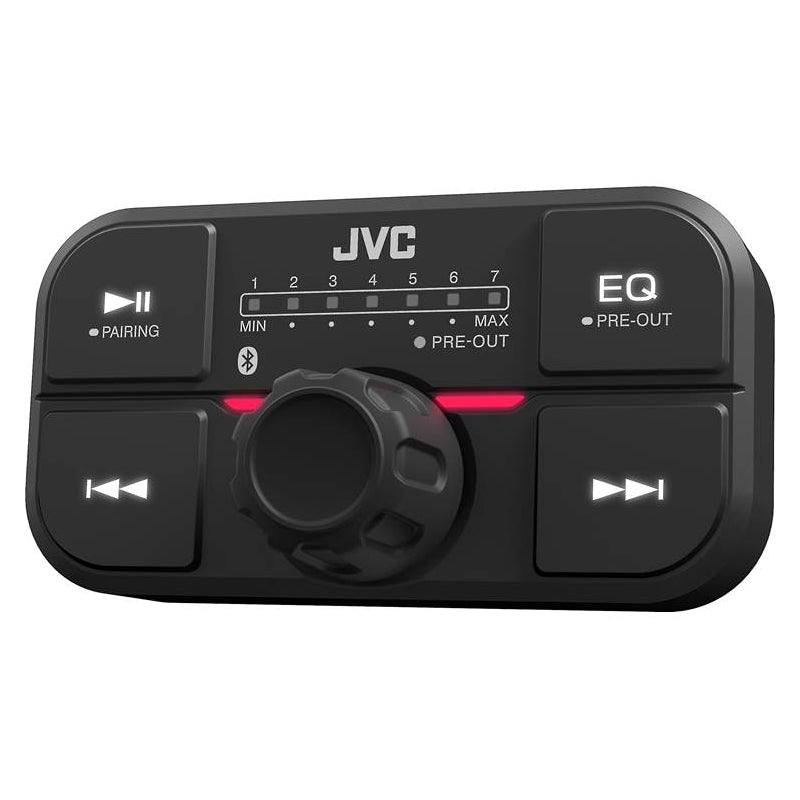

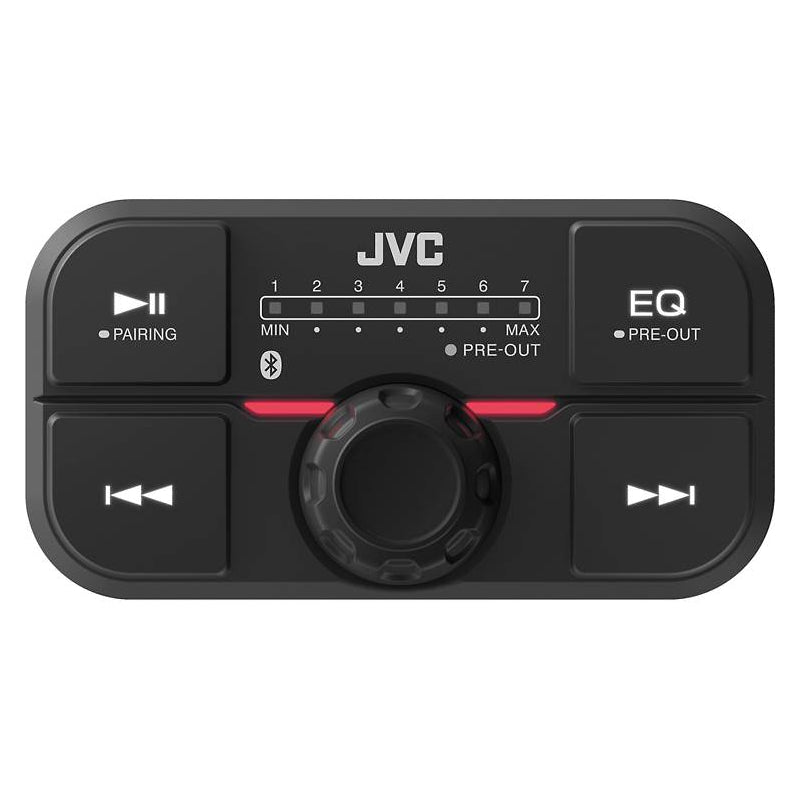

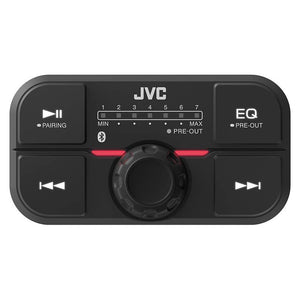

Premium Bluetooth Audio: Bluetooth antenna is integrated into the remote control for extended connectivity range and stable playback. Supports aptX and AAC codecs for high-quality wireless audio performance.

Additional Information

Brand	JVC
Model	KS-DR2104DBT
Condition	Brand New
RMS Power Handling	4x75
Maximum Power	600
Frequency Response	20-20000
Number of Channels	4
Amplifier Class	D
Fuse Rating	40

RMS Power Output (Watts x Channels): 50 x 4
Frequency Response at Rated RMS Power: 20-20,000 Hz
THD at Rated RMS Power: 1%
Signal-to-Noise Ratio: 74 dB
Input Voltage: 14.4v
Peak Power Output (Watts x Channels): 150 x 4
Power at 2 Ohms (Watts x Channels): 75 x 4
Bridged Power (Watts x Channels): 150 x 2
Minimum Impedance (Bridged): 4 Ohms
Minimum Impedance (Unbridged): 2 Ohms
Amplifier Class: D
Low-Pass Crossover Frequency: 50-200 Hz
Low-Pass Slope: 12 dB/octave
High-Pass Crossover Frequency: 50-200 Hz
High-Pass Slope: 12 dB/octave
Bass Boost: No
Bass Boost Frequency: N/A
Fan Cooled: No
Fuse Rating: 40
Speaker Level Inputs: No
Preamp Outputs: 2
Height: 2 inches
Width: 9 inches
Depth: 4 inches

Download Owner's Manual

What's In The Box

• 4-Channel Marine/MotorSports amplifier

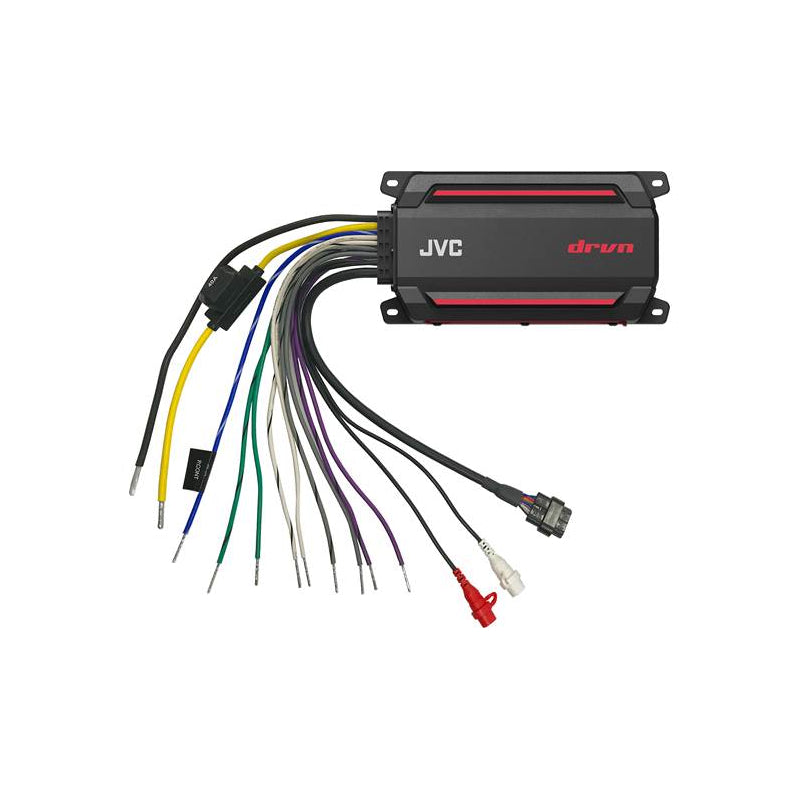

• Attached 12" Power/ ground/ input-output harness w/ inline fuse holder

• 40-amp ATO fuse (installed)

• Wired remote control w/ 8' cable attached

• Flush-mount bracket for remote

• (4) 5/8" screws

• 5/16" screw

• Double-sided adhesive pad

• Owner's Manual
