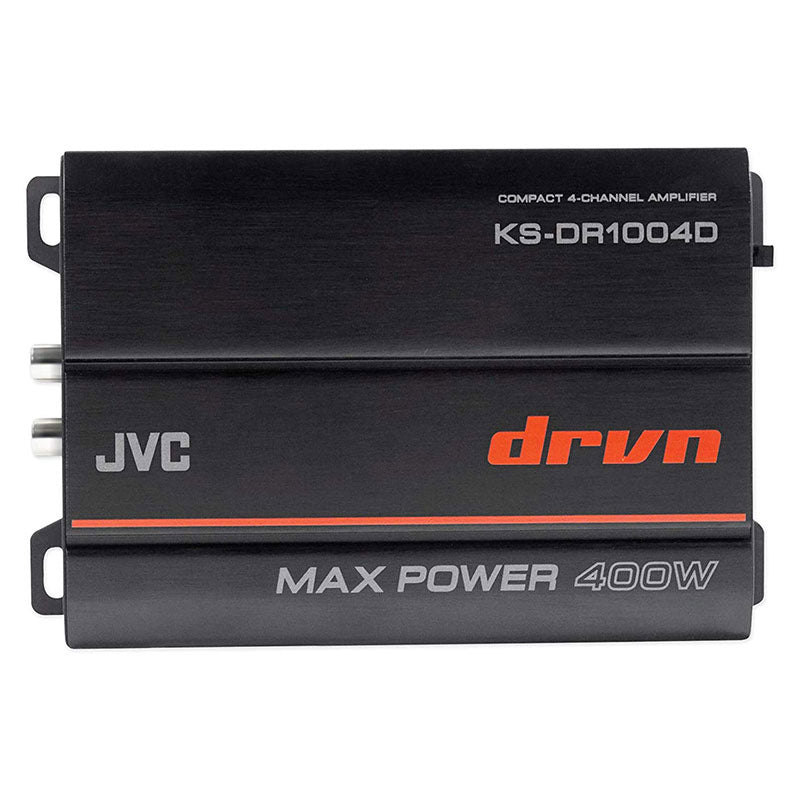

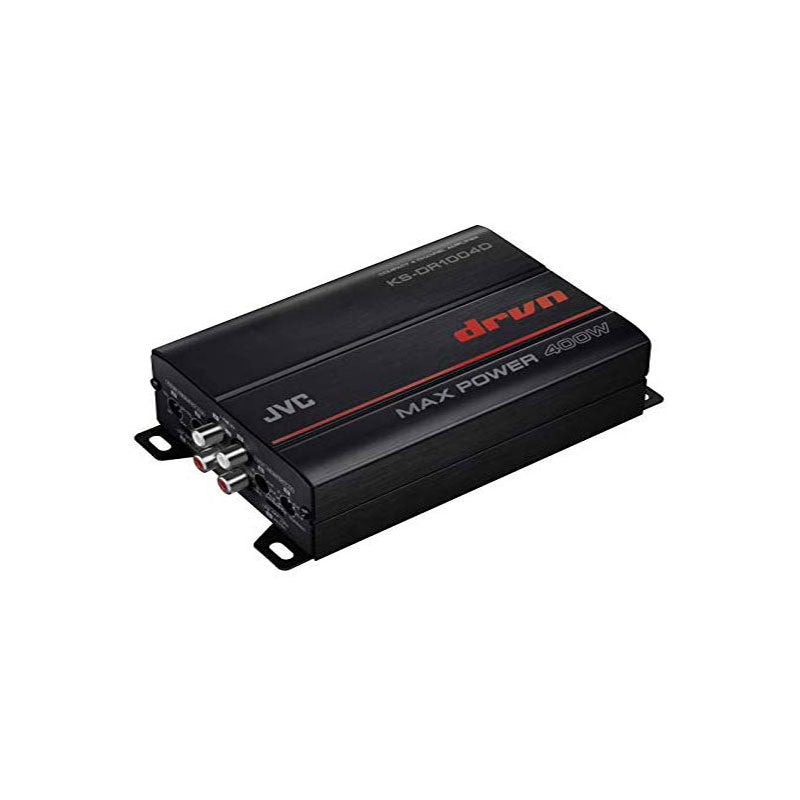

JVC KS-DR1004D

Name: JVC KS-DR1004D
Brand: JVC
SKU: KS-DR1004D
Price: 177.65 USD
Availability: InStock

In Stock

DRVN Series 400 Max Power, 4-Channel Compact Amplifier for Compact Car, Marine, UTV and Motorcycle, Class-D

Part No.-KS-DR1004D

$177.65

30 Days Returns Accepted.
Lifetime Tech Support Included.
Free Shipping up to $45.

Reserve Yours Now

Reserve yours from the next batch. Charged at checkout, shipped in order received.

Out of stock

One email the moment stock lands, nothing else.
Waitlist is notified in the order it was joined.
Unsubscribe from the email itself, one click.

SKU :KS-DR1004D

Brand :JVC

Fit Guide. Check if it will fit your car.
We Price Match! Call Us! +1 (310) 594-8918

JVC KS-DR1004D DRVN Series 4-Channel Compact Class-D Amplifier

Compact Power with Clear, Impactful Sound

The JVC KS-DR1004D DRVN Series amplifier adds clarity and impact to your vehicle's audio system without taking up excessive space. Designed for cars, marine applications, UTVs, and motorcycles, this compact 4-channel Class-D amplifier fits into installations where space is limited. It delivers 45 watts RMS per channel to provide a noticeable power upgrade over many factory radios and aftermarket marine receivers.

Flexible 4-Channel and Bridged Operation

Configure the KS-DR1004D for a variety of speaker setups. Its bridged 2-channel mode can deliver up to 90 watts RMS per channel to a pair of compatible high-performance speakers. Separate front and rear low-pass and high-pass filters let you tailor the output for full-range, midrange, or low-frequency speakers to suit your audio system.

Moisture Protection for Marine and Powersports Use

Built for demanding environments, the KS-DR1004D features conformal-coated printed circuit boards that help protect sensitive electronics from moisture, condensation, and dirt. Its compact design supports versatile installation in marine and motorsports applications where exposure to outdoor elements is a concern.

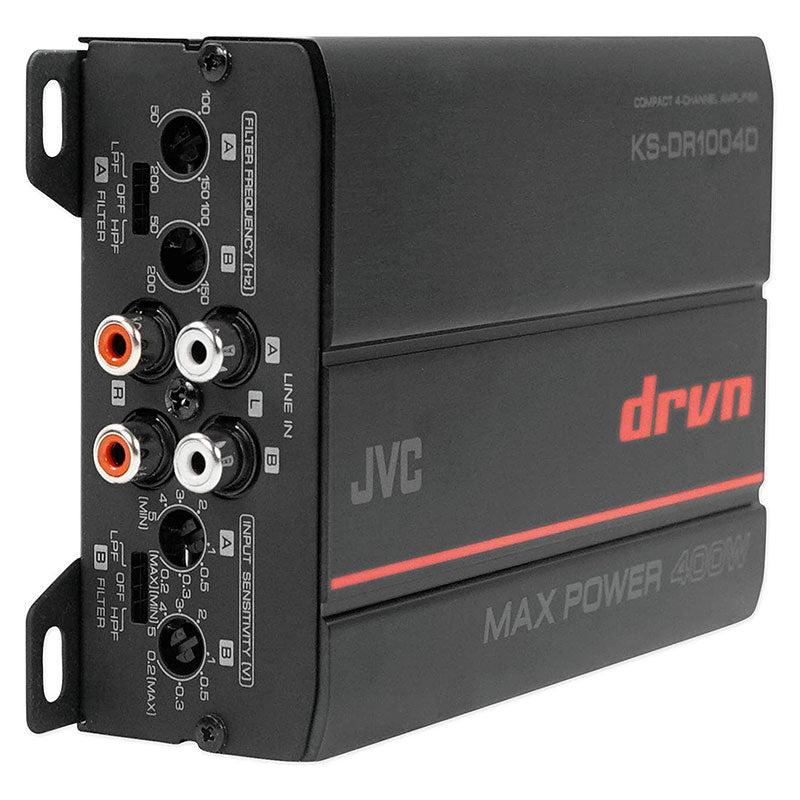

Precise Sound Tuning for Your Setup

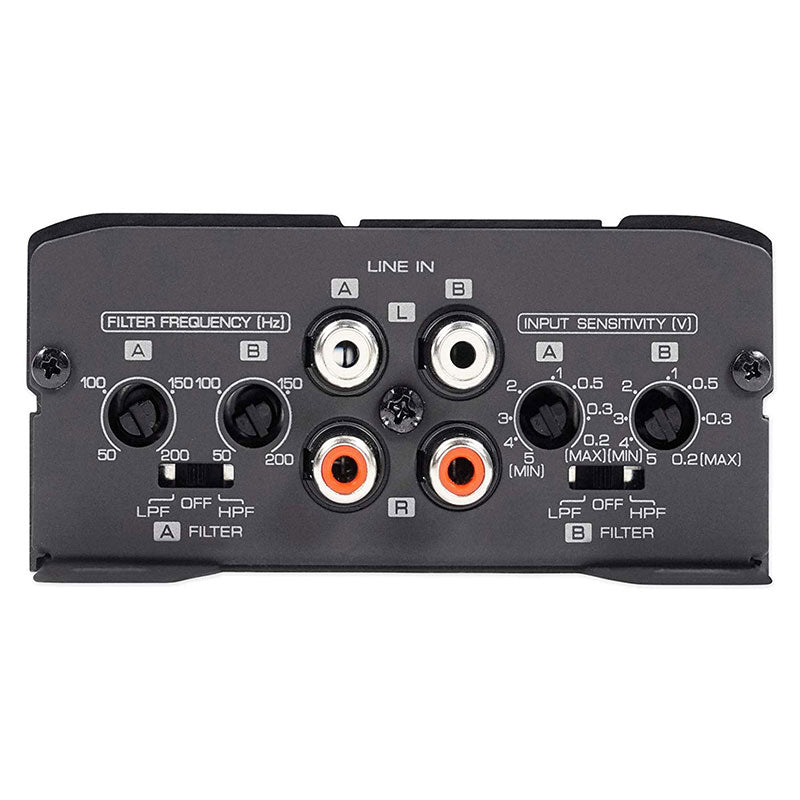

Rotary high-pass and low-pass filter controls allow fine adjustments to help match the amplifier's output to your speakers and listening preferences. This adjustable crossover design offers more precise sound tuning than fixed switching options, helping you configure your system for a more balanced listening experience.

JVC KS-DR1004D Key Features

4-Channel Class-D
Compact amplifier for versatile audio system configurations

45W RMS per Channel
Four-channel power for improved audio performance

Bridged Output
Up to 90W RMS per channel for a pair of speakers

Adjustable Crossovers
Separate front and rear high-pass and low-pass filters

Conformal-Coated Circuit Boards
Added protection against moisture, condensation, and dirt

Compact Installation
Suitable for cars, marine systems, UTVs, and motorcycles

Compact Design. Powerful Output. Flexible Sound Control.

Upgrade your audio system with the JVC KS-DR1004D DRVN Series amplifier. Combining compact Class-D performance, flexible speaker configurations, adjustable sound controls, and moisture protection, it delivers a versatile amplification solution for vehicles and marine or powersports audio systems.

Compact 4-Channel Class-D Amplifier:Delivers powerful audio performance in a space-saving design ideal for cars, marine applications, UTVs, and motorcycles.
400W Maximum Power Output: Provides up to 400 watts of maximum power for an enhanced listening experience.
Conformal-Coated Circuit Board:Helps protect internal electronics from moisture, condensation, salt spray, and environmental contaminants.
Variable High-Pass Filter (HPF): Adjustable from 50Hz to 200Hz with a 12dB/octave slope for precise sound tuning.
Variable Low-Pass Filter (LPF): Adjustable from 50Hz to 200Hz to help customize audio output for compatible speakers and subwoofers.
High-Level Input Support:Connects directly to compatible speaker-level outputs when RCA connections are unavailable.
Signal-Sensing Auto Turn-On:Automatically powers on when an audio signal is detected through supported high-level inputs.
Dual RCA Input Channels: Supports A-channel and B-channel left/right RCA inputs for flexible system integration.
Circuit Separation Construction: Separates pre-amplifier and power-amplifier circuit boards to help reduce unwanted radiation noise.
Large LPF Coil: Designed to support stable, high-quality sound reproduction at higher volume levels.
Flexible Installation: Compact dimensions allow convenient mounting in tight spaces and a variety of vehicle audio setups.

Additional Information

Brand	JVC
Model	KS-DR1004D
Condition	Brand New
RMS Power Handling	4x45
Maximum Power	400
Number of Channels	4
Amplifier Class	D

Maximum Power Output: 400 watts
RMS Power Output (4 Ohms): 45W × 4
RMS Power Output (2 Ohms): 45W × 4
Bridged RMS Power Output (4 Ohms): 90W × 2
Amplifier Class: Class-D
Speaker Impedance: 2–8 ohms
Signal-to-Noise Ratio: Greater than 98 dB
RCA Inputs: A-Channel L/R, B-Channel L/R
High-Level Input: Yes
Signal-Sensing Auto Turn-On: Yes
Input Sensitivity: 0.2–5.0V
High-Pass Filter (HPF): 50–200Hz, variable, -12dB/octave
Low-Pass Filter (LPF): 50–200Hz, variable, -12dB/octave
Dimensions (W × H × D): 5-11/16" × 1-3/4" × 3-7/8" (145 × 45 × 99 mm)

What's In The Box

• 4-Channel amplifier

• 5' Power/output harness

• Two 40" RCA cables

• Two 15" wire ties

• Two 4" wire ties

• Four 5/8" screws

• 4 Control covers

• Owner's Manual
