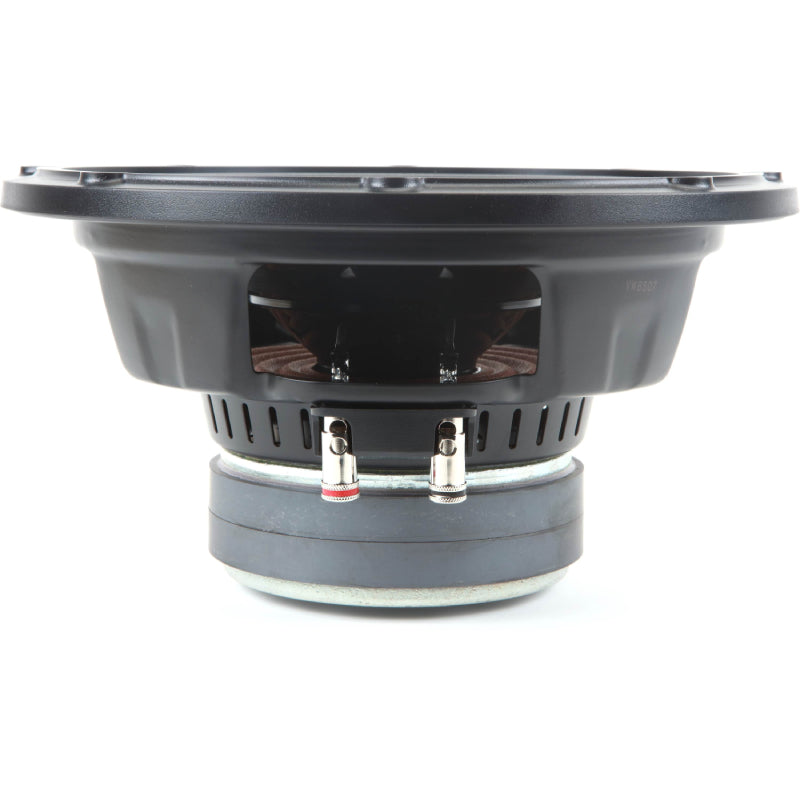

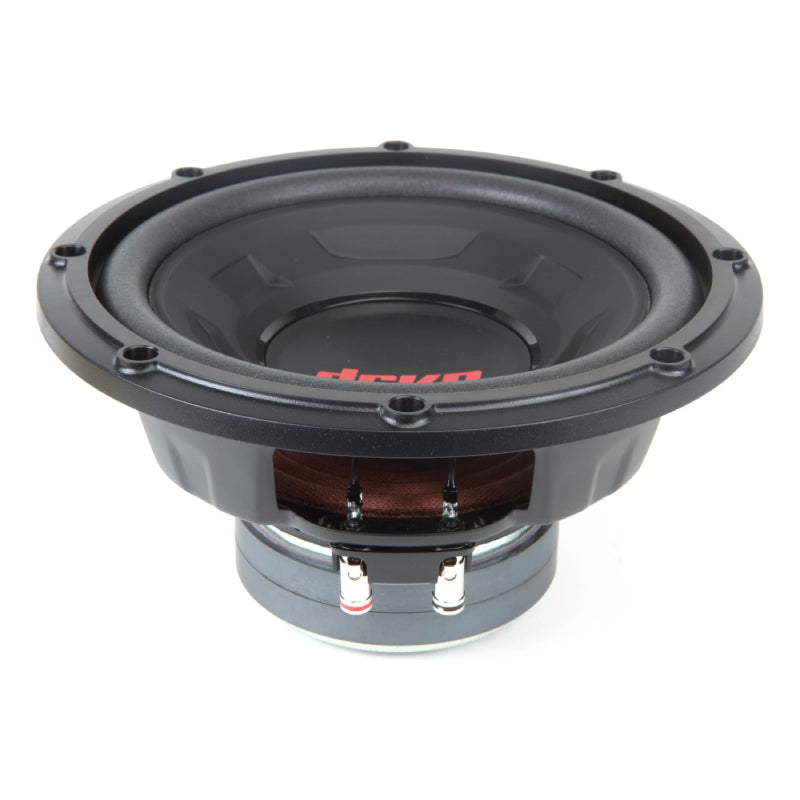

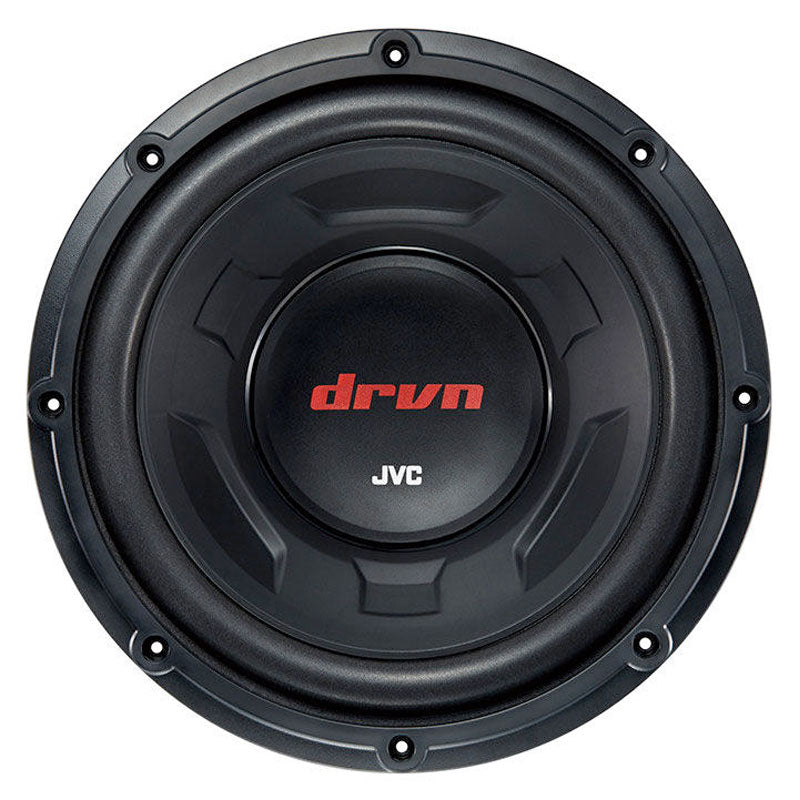

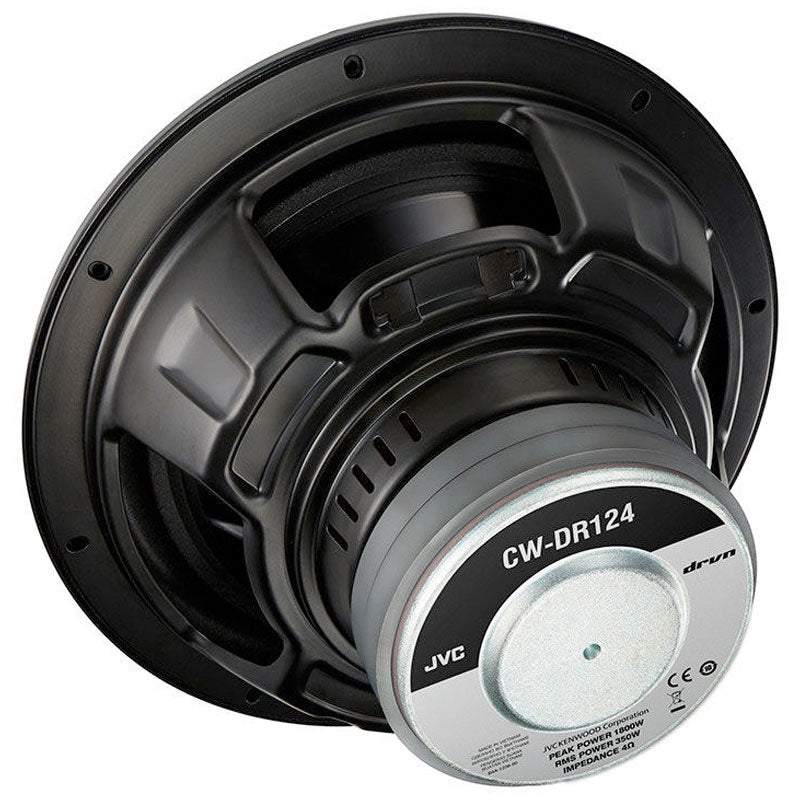

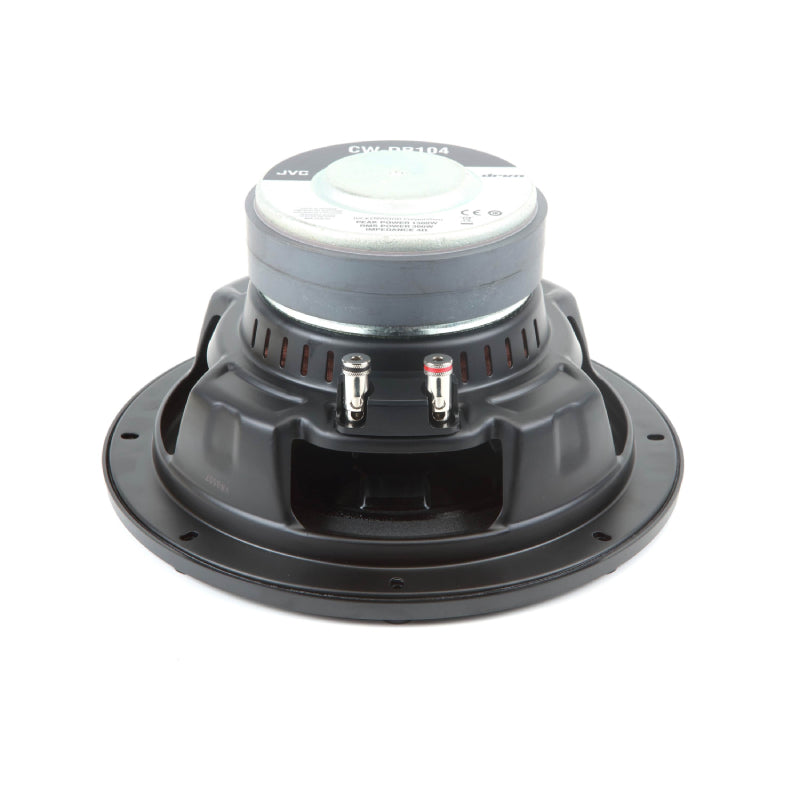

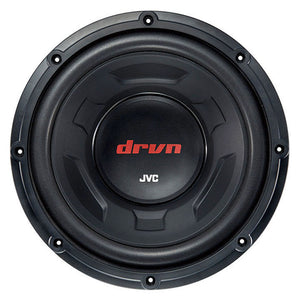

JVC CW-DR124

Name: JVC CW-DR124
Brand: JVC
SKU: CW-DR124
Price: 92.4 USD
Availability: InStock

In Stock

DRVN Series 12" 1800W Peak Power Handling 4 Ohms, Single Voice Coil Component Car Subwoofer

Part No.-CW-DR124

$92.40

30 Days Returns Accepted.
Lifetime Tech Support Included.
Free Shipping up to $45.

Reserve Yours Now

Reserve yours from the next batch. Charged at checkout, shipped in order received.

Out of stock

One email the moment stock lands, nothing else.
Waitlist is notified in the order it was joined.
Unsubscribe from the email itself, one click.

SKU :CW-DR124

Brand :JVC

Fit Guide. Check if it will fit your car.
We Price Match! Call Us! +1 (310) 594-8918

JVC CW-DR124 - DRVN Series 12" 1800W Peak Power Handling, 4-Ohms Car Subwoofer

We are a JVC authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

What's Inside?

•(1) 12" Subwoofer
•Instructions (English/ Spanish/ French/ German/ Italian/ Portuguese/ 6 Others)
•Specifications and Template on box
•Owner's Manual

The Ultimate in Deep Bass

Deep Bass is achieved by focusing the speakers output to a lower frequency range than most conventional subwoofers. A large 61.4 oz. magnet helps produce these powerful low frequencies.

Durable Design

A newly incorporated 6- layer copper voice coil with aluminum former, improves heat resistance. The air convection generated from the vibration of the diaphragm is effectively used to cool the voice coil, contributing to the speakers power handling and ability to dissipate heat.

12" 4-Ohm Subwoofer: Designed to deliver deep, powerful bass and enhance the low-frequency performance of your car audio system.
Polypropylene Cone: Features a durable PP cone designed to provide reliable bass reproduction and consistent audio performance.
Foam Surround: Allows controlled cone movement to support smooth, responsive bass output during playback.
350W RMS Power Handling: Handles up to 350 watts of continuous power for strong, consistent low-frequency performance.
1,800W Peak Power Handling: Supports high power levels during demanding musical passages for impactful bass reproduction.
61.4 oz Ferrite Magnet: Uses a substantial ferrite magnet to help generate powerful bass and support the subwoofer's overall performance.
6-Layer Copper Voice Coil: Features a multilayer copper voice coil designed to improve heat resistance and support reliable power handling.
Aluminum Voice Coil Former: Helps manage heat generated during operation, contributing to improved thermal performance.
Graduated Pleat Damper: Specially designed to distribute mechanical stress more evenly, helping reduce wear and improve long-term durability.
Deep Bass Frequency Response: Covers a frequency range of 38–300 Hz to reproduce low-frequency sounds with impactful bass output.
Flexible Enclosure Compatibility: Supports sealed and ported enclosure designs, allowing you to choose a suitable box configuration for your installation.
Compact Mounting Design: Features a 6-3/16-inch mounting depth for easier integration into compatible subwoofer enclosures.

Additional Information

Brand	JVC
Model	CW-DR124
Condition	Brand New
Sold As	Single
Diameter	12
RMS Power Handling	350
Peak Power Handling	1800
Impedance	4
Frequency Response	38-300
Sensitivity	82
Number of Voice Coils	Single
Shallow Mount	No

Cone Size: 12" (30 cm)
Cone Material: Polypropylene (PP)
Surround Material: Foam
Power Handling (RMS): 350 watts
Power Handling (Peak): 1,800 watts
Impedance: 4 ohms
Frequency Response: 38–300 Hz
Sensitivity: 82 dB
Magnet Type: Ferrite
Magnet Weight: 61.4 oz (1,740 g)
Voice Coil: 6-layer copper
Voice Coil Former: Aluminum
Sealed Enclosure Volume: 1.0 cubic foot
Ported Enclosure Volume: 1.5 cubic feet
Top-Mount Depth: 6-3/16" (157 mm)
Dimensions (W × H × D): 12-13/16" × 12-13/16" × 6-7/8" (326 × 326 × 174.3 mm)
Subwoofer Grille: Not included

What's In The Box

• DRVN Series 12" Car Subwoofer

• Instructions (English/ Spanish/ French/ German/ Italian/ Portuguese/ 6 Others)

• Specifications and Template on box

• Owner's Manual
