JL Audio XMD-3.5MM-PNL

Name: JL Audio XMD-3.5MM-PNL
Brand: JL Audio
SKU: XMD-3.5MM-PNL
Price: 55.24 USD
Availability: InStock

In Stock

Marine Series 3.5 mm Audio Jack for Panel-Mounting - 20 Inches

Part No.-XMD-3.5MM-PNL

$55.24 _$79.99 SAVE $24.75

Reserve Yours Now

Reserve yours from the next batch. Charged at checkout, shipped in order received.

Out of stock

One email the moment stock lands, nothing else.
Waitlist is notified in the order it was joined.
Unsubscribe from the email itself, one click.

30 Days Returns Accepted.
Lifetime Tech Support Included.
Free Shipping on Orders $49 and Up

SKU :XMD-3.5MM-PNL

Brand :JL Audio

Fit Guide. Check if it will fit your car.
We Price Match! Call Us! +1 (310) 594-8918

Vehicle Fitment

Checking your selected vehicle…

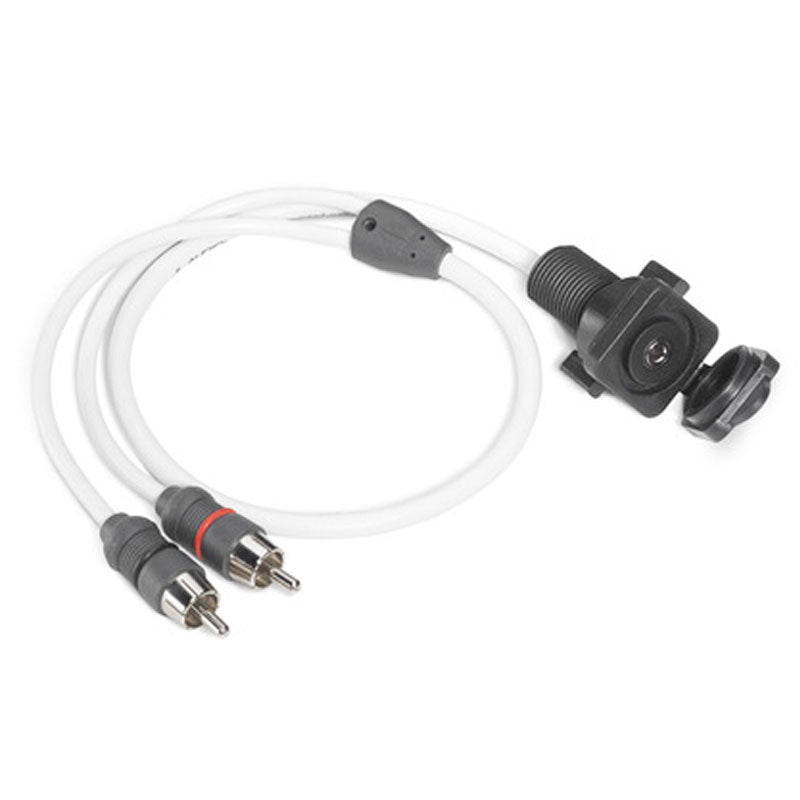

JL Audio XMD-3.5MM-PNL Marine Series 3.5 mm Audio Jack for Panel-Mounting - 20 Inches

Convenient Connection for Portable Audio Sources

The JL Audio XMD-3.5MM-PNL creates a convenient, permanent connection point for a wide variety of portable audio devices. Its panel-mounted 3.5 mm jack accepts an analog stereo plug and routes audio through a pair of male RCA connectors for connection to a compatible audio system.

20-Inch Minijack-to-RCA Cable

The included 20-inch cable features a female 3.5 mm panel-mount jack on one end and male stereo RCA connectors on the other. This setup provides a practical way to connect portable audio sources to compatible marine audio equipment.

Simple Panel-Mount Installation

Designed for mounting on flat surfaces up to 1 inch thick, this audio jack requires a 0.75-inch mounting hole. The included plastic wing-nut secures the jack from the opposite side of the mounting surface for a straightforward installation.

Protective Rubber Cover

A labeled rubber cover with a tight-fitting seal helps protect the connection against the elements when not in use. The pre-installed cover adds practical protection for marine environments.

Add Convenient Audio Connectivity to Your Boat

Choose the JL Audio XMD-3.5MM-PNL Marine Series Audio Jack for a clean panel-mounted connection, easy integration with compatible audio equipment, and a protective cover designed for marine use.

Convenient Plug-In Access: Create a dedicated audio connection point for smartphones, portable media players, and other devices with a standard 3.5 mm stereo output.
Seamless RCA Audio Integration: Connect portable audio sources to compatible sound systems through male RCA stereo outputs with marine-grade connectors for dependable audio connectivity.
Weather-Ready Protective Cover: Help shield the connection from the elements with a labeled rubber cover featuring a snug, tight-fitting seal.
Clean, Secure Panel Installation: Mount the jack on a flat surface up to 1 inch thick for a neat, integrated appearance that keeps your audio connection within easy reach.
Straightforward Installation Design: Install using a 0.75-inch mounting hole and the included-style plastic wing-nut fastening design for a secure fit without complicated mounting hardware.

Additional Information

Brand	JL Audio
Model	XMD-3.5MM-PNL
Condition	Brand New

Product Type: Marine Series panel-mount 3.5 mm audio jack
Audio Input: 3.5 mm analog stereo
Audio Output: Dual male RCA plugs
Cable Length: 20 inches
Mounting Type: Panel mount
Mounting Hole Size: 0.75 inch
Maximum Mounting Surface Thickness: 1 inch
Mounting Hardware: Plastic wing nut
Protective Cover: Labeled rubber cover with a tight-fitting seal
Application: Marine audio systems and portable audio source connectivity

What's In The Box

• Marine Series Panel-Mounting

• 20" Minijack-to-RCA cable (with a panel-mount female 3.5mm jack on one end and male stereo RCA connectors on other end)

• Plastic wing-nut (pre-installed)

• Rubber cover (pre-installed)

• Owner's Manual
