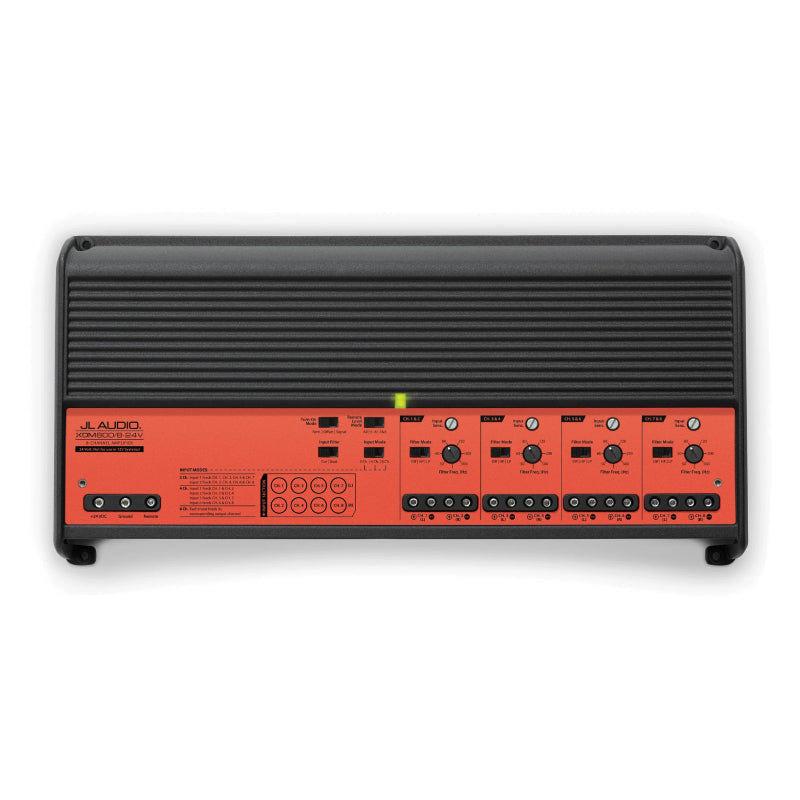

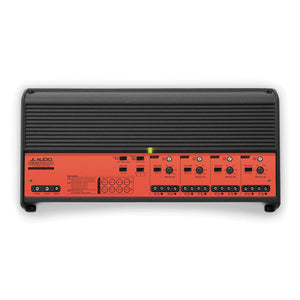

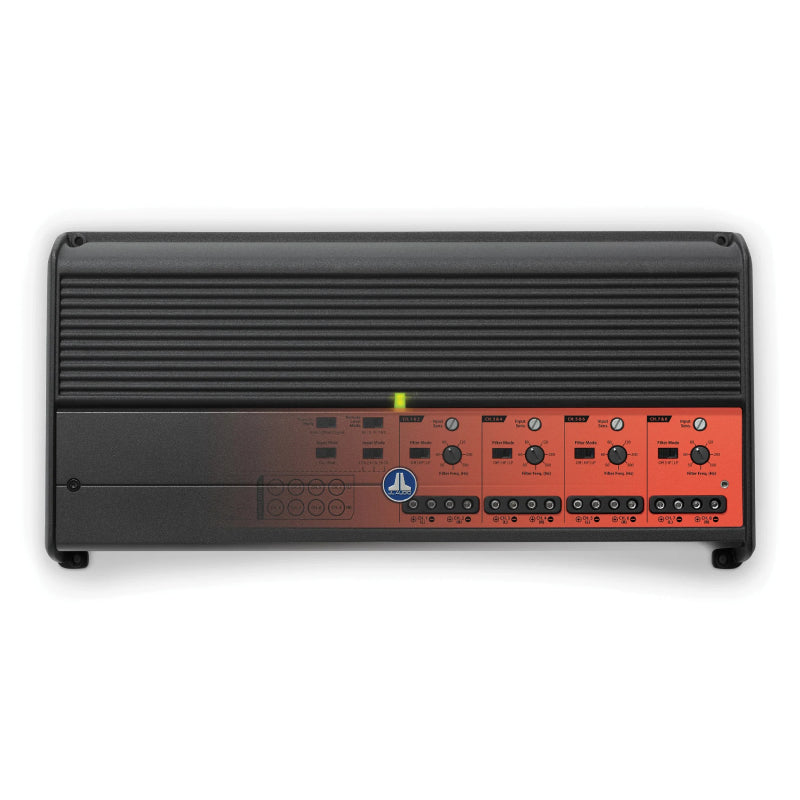

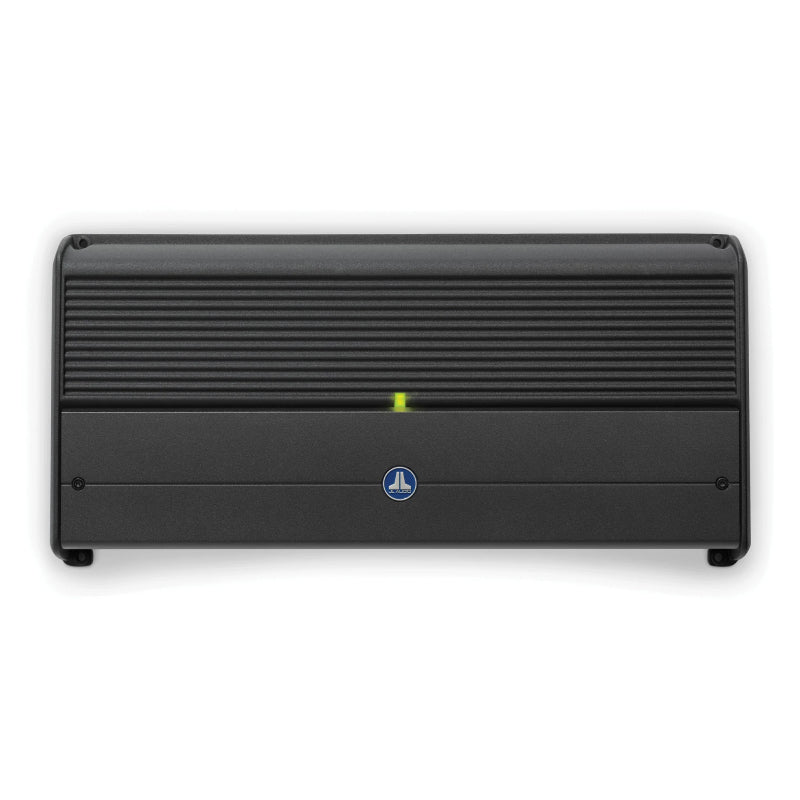

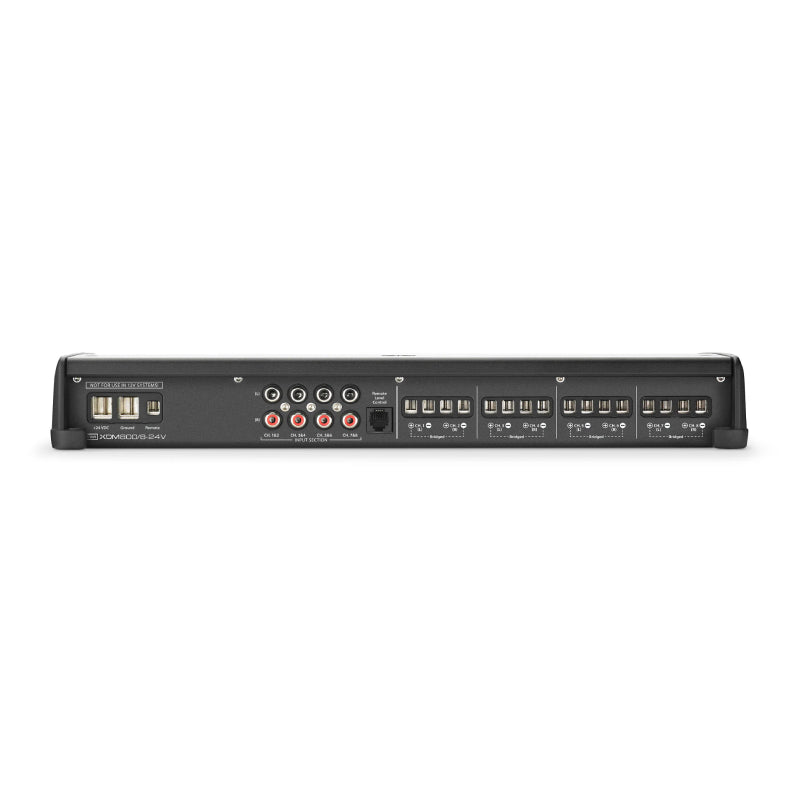

JL Audio XDM800/8-24V

Name: JL Audio XDM800/8-24V
Brand: JL Audio
SKU: XDM800/8-24V
Price: 977.49 USD
Availability: InStock

In Stock

XDM Series 8-Channel 100W RMS x 8 at 2 Ohms, Class D Full-Range Car/Marine Amplifier for 24V Systems

Part No.-XDM800/8-24V

$977.49

Reserve Yours Now

Reserve yours from the next batch. Charged at checkout, shipped in order received.

Out of stock

One email the moment stock lands, nothing else.
Waitlist is notified in the order it was joined.
Unsubscribe from the email itself, one click.

30 Days Returns Accepted.
Lifetime Tech Support Included.
Free Shipping on Orders $49 and Up

SKU :XDM800/8-24V

Brand :JL Audio

Fit Guide. Check if it will fit your car.
We Price Match! Call Us! +1 (310) 594-8918

JL Audio XDM800/8-24V XDM Series 8-Channel Class D Full-Range Car and Marine Amplifier for 24V Systems

Powerful 8-Channel Audio Performance

The JL Audio XDM800/8-24V delivers versatile audio amplification for compatible 24V vehicle and marine systems. Its eight-channel design provides 100 watts RMS per channel at 2 ohms or 75 watts RMS per channel at 4 ohms, making it suitable for systems that require multiple speaker outputs from a single amplifier.

Efficient NexD™ Class D Technology

JL Audio NexD™ switching technology is designed to provide efficient amplification with low distortion. The full-range design supports a variety of compatible speaker configurations, allowing you to build a multi-channel audio system for your vehicle or boat.

Flexible System Configuration

With eight independent channels, the XDM800/8-24V can power multiple speakers or support a combination of compatible speakers and subwoofers. Its configurable channel arrangement provides flexibility for different audio system layouts, including bridged configurations when the connected loads meet JL Audio's specifications.

Customizable Filtering and Convenient Controls

Advanced signal processing and customizable 12 dB-per-octave filters help tailor audio output to your system. Automatic turn-on capability supports convenient integration, while compatibility with remote level control provides an additional way to adjust system levels from the driver's seat or cockpit.

Designed for 24V Vehicle and Marine Systems

Built for compatible 24V electrical systems, this amplifier is designed for demanding car and marine audio applications. Its compact design and protected finish support practical installation, while proper mounting, ventilation, grounding, and speaker impedance help maintain reliable operation.

Upgrade Your 24V Audio System with JL Audio

Choose the JL Audio XDM800/8-24V for eight-channel amplification, efficient NexD™ technology, and flexible system configuration. Enjoy powerful, customizable audio performance in a compatible 24V vehicle or marine installation.

High-Output Power Across Eight Channels:Bring your sound system to life with the JL Audio XDM800/8-24V, delivering 100 watts RMS x 8 at 2 ohms or 75 watts RMS x 8 at 4 ohms at 28.8V, giving you powerful, detailed audio for demanding automotive and marine setups.
Advanced NexD™ Class D Technology:Enjoy efficient power delivery with low distortion thanks to high-speed switching technology engineered to produce clean, consistent sound while making the most of available electrical power.
Flexible System Design for Custom Audio Builds:Configure the eight-channel amplifier for multiple speaker and subwoofer arrangements, including bridged four-channel operation at 200 watts RMS x 4 at 4 ohms, making it a versatile foundation for sophisticated multi-zone audio systems.
Marine-Ready Construction with Smart Protection:Built with marine-grade materials, a durable black powder-coated finish, and a gasketed removable cover that protects adjustment controls while keeping them accessible for convenient system tuning.
Precise Tuning and Easy System Integration: Fine-tune your sound with adjustable 50–500 Hz high-pass or low-pass filters, 12 dB/octave slopes, and automatic signal-sensing or DC-offset turn-on. Optional HD-RLC and water-resistant MHD-RLC remote controls let you adjust supported channel levels from the driver's seat or cockpit.

Additional Information

Brand	JL Audio
Model	XDM800/8-24V
Condition	Brand New
Frequency Response	12-22000
Number of Channels	8
Amplifier Class	D
Fuse Rating	40

Model: XDM800/8-24V
Amplifier Type: Full-Range Car/Marine Amplifier
Amplifier Class: Class D
Number of Channels: 8
Rated Electrical System: 24V, Negative Ground

Power Specifications:

RMS Power @ 28.8V, 4 Ohms: 75W x 8 Channels
RMS Power @ 28.8V, 2 Ohms: 100W x 8 Channels
Bridged RMS Power @ 28.8V, 4 Ohms: 200W x 4 Channels
RMS Power @ 25V, 4 Ohms: 60W x 8 Channels
RMS Power @ 25V, 2 Ohms: 90W x 8 Channels
Bridged RMS Power @ 25V, 4 Ohms: 180W x 4 Channels

Audio and Signal Processing:

Frequency Response: 12 Hz–22 kHz (+0, −1 dB)
Signal-to-Noise Ratio at Highest Rated Power: Greater than 104 dB (A-weighted)
Signal-to-Noise Ratio at 1W: Greater than 84 dB (A-weighted)
THD+N at Rated Power: Less than 1% at 2 ohms per channel
Damping Factor @ 4 Ohms: Greater than 150 at 50 Hz
Damping Factor @ 2 Ohms: Greater than 75 at 50 Hz
RCA Input Voltage Range: 200 mV–4V RMS
Filter Modes: High-Pass or Low-Pass
Filter Slope: 12 dB/Octave
Filter Frequency Range: 50–500 Hz
Detented, Calibrated Filter Controls: Yes
Filter Defeat Function: Yes
Channel Input Mode Switch: 2, 4, 6, or 8 Channels
Remote Level Control Compatibility: Optional HD-RLC or water-resistant MHD-RLC
Remote Level Modes: 2, 4, or All Channels
Pass-Through Preamp Output: None

Electrical Specifications:

Minimum Power/Ground Wire Gauge: 4 AWG Copper
Fuse Rating: 80A
Compatible Fuse Types: AFS, AGU, or MaxiFuse™

Physical Specifications:

Height: 2.05 in (52 mm)
Width: 14.73 in (374 mm)
Depth: 7.09 in (180 mm)
Finish: Black Powder-Coated
Top Cover: Gasketed, Removable

Download Owner's Manual

What's In The Box

• XDM Series 8-Channel Class D Full-Range Car/Marine Amplifier

• Owner's Manual
