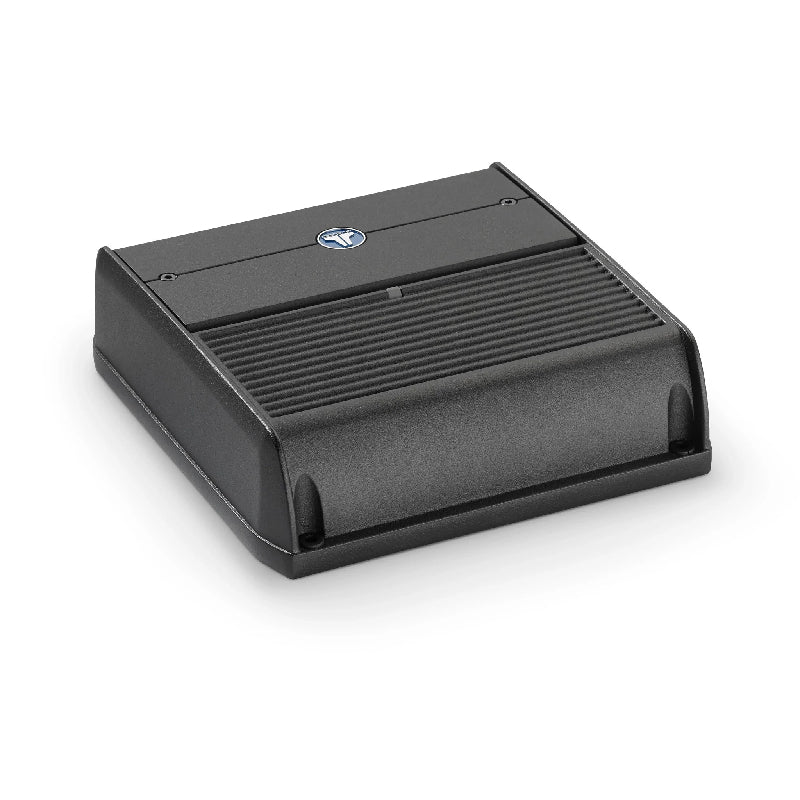

JL Audio XDM300/1

Name: JL Audio XDM300/1
Brand: JL Audio
SKU: XDM300/1
Price: 450.49 USD
Availability: InStock

In Stock

XDM Series 300W RMS x 1 at 2 Ohms, Class-D Mono Subwoofer Car/Marine Amplifier with NEXD™ Switching Technology

Part No.-XDM300/1

$450.49

Reserve Yours Now

Reserve yours from the next batch. Charged at checkout, shipped in order received.

Out of stock

One email the moment stock lands, nothing else.
Waitlist is notified in the order it was joined.
Unsubscribe from the email itself, one click.

30 Days Returns Accepted.
Lifetime Tech Support Included.
Free Shipping on Orders $49 and Up

SKU :XDM300/1

Brand :JL Audio

Fit Guide. Check if it will fit your car.
We Price Match! Call Us! +1 (310) 594-8918

JL Audio XDM300/1 XDM Series 300W RMS Monoblock Class D Car and Marine Subwoofer Amplifier with NexD™ Technology

Powerful, Dedicated Subwoofer Performance

The JL Audio XDM300/1 is a monoblock amplifier designed to deliver dedicated power to your subwoofer in compatible car and marine audio systems. With 300 watts RMS at 2 ohms, it provides a compact solution for adding impactful bass to your listening experience.

Efficient NexD™ Class D Technology

JL Audio NexD™ switching technology helps deliver high output from a compact chassis while reducing current draw and heat. Differential-balanced inputs and a dual-mode input filter help reject unwanted noise, supporting clean bass reproduction in vehicle and marine environments.

Adjustable Audio Control

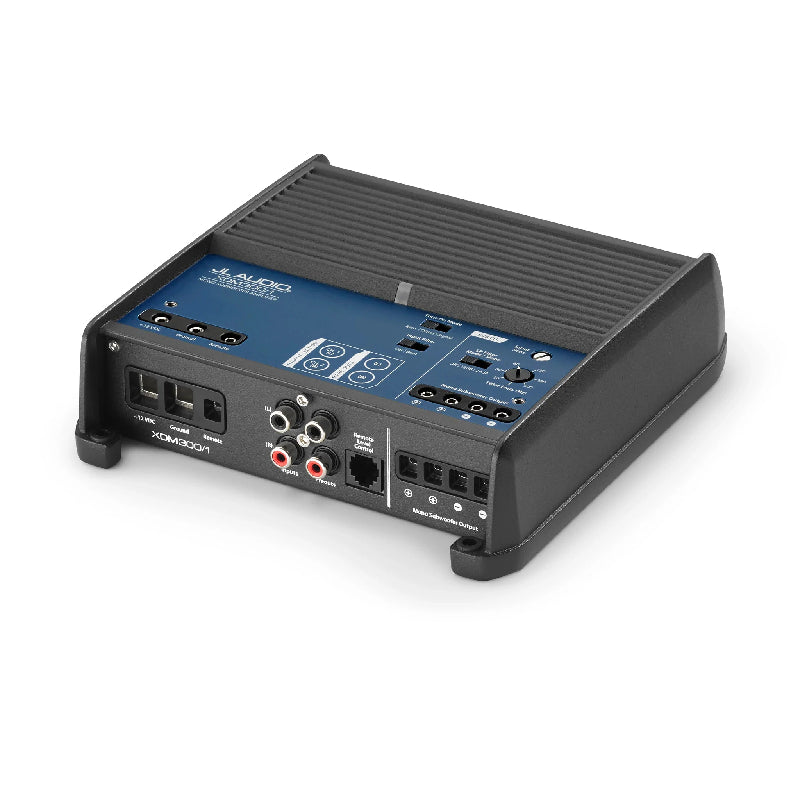

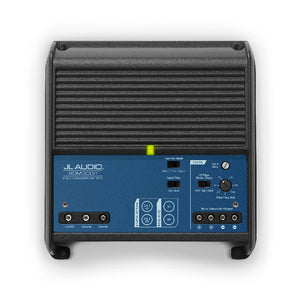

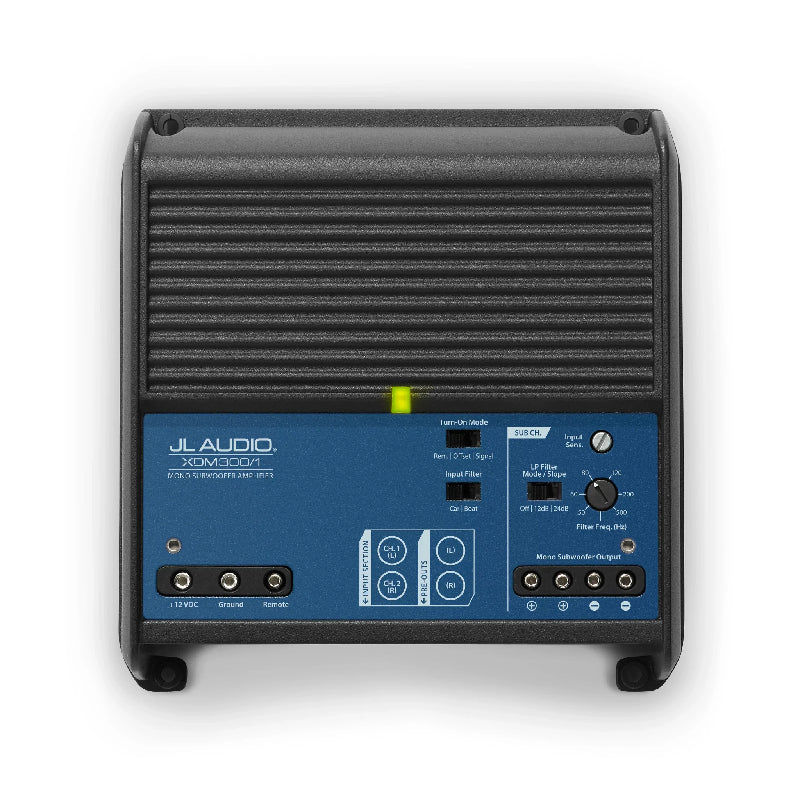

Studio-grade signal processing, fully variable filters, and calibrated potentiometers give you flexibility when configuring your subwoofer output. The controls are located beneath a sealed security cover to help protect the settings from environmental exposure.

Flexible Turn-On and Thermal Protection

The XDM300/1 supports automatic turn-on through signal sensing, DC-offset sensing, or a conventional +12V remote turn-on lead. Advanced rollback protection helps manage thermal conditions during demanding operation, while the all-aluminum, powder-coated housing is designed to resist corrosion.

Designed for Car and Marine Audio Systems

With its compact construction and dedicated mono output, this amplifier is designed to integrate into compatible car and marine audio setups. Proper speaker impedance, secure wiring, suitable grounding, and adequate ventilation help support reliable performance.

Add Powerful Bass with JL Audio

Upgrade your compatible audio system with the JL Audio XDM300/1. Its 300-watt RMS output at 2 ohms, efficient NexD™ technology, and adjustable signal processing make it a versatile choice for dedicated subwoofer amplification.

FIDELITY FOR ALL: Our exclusive dual-mode input filter and differential-balanced inputs provide outstanding noise rejection and crystal-clear audio performance in boats or cars.
EQUIPPED WITH NexD™: Advanced switching technology ensures exceptional efficiency, reducing current draw and heat while delivering reliable high-power output from a compact chassis.
STUDIO-GRADE SIGNAL PROCESSING: Each XDM amplifier features audiophile-grade signal processing with fully variable filters and calibrated potentiometers, all under a sealed security cover.
ADVANCED ROLLBACK PROTECTION: Innovative circuit design prevents shutdown due to thermal overload, keeping your music playing even under demanding conditions.
AUTO TURN-ON CAPABILITIES: Choose from three options: auto signal sensing with +12V remote out, auto DC-offset sensing with +12V remote out, or conventional +12V turn-on lead.
BUILT TOUGH: All-aluminum, powder-coated housing resists corrosion, and a sealed security cover protects controls from the elements.
FULL-RANGE STEREO: Available in 2, 4, 6, and 8 channel variants to suit your system needs.
SYSTEM AMPLIFIERS: Three models provide 2 or 4 full-range outputs plus a subwoofer output for complete system setups.
MONOBLOCK: Three models available with 300W, 600W, and 1000W outputs.
24-VOLT OPTIONS: Available in 6 and 8 channel variants for high-voltage applications.

Additional Information

Brand	JL Audio
Model	XDM300/1
Condition	Brand New
Sold As	Single
RMS Power Handling	300
Frequency Response	10-1000
Number of Channels	1
Amplifier Class	D

RMS Power Output: 200 W x 1 channel
Peak Power Output: N/A
Power at 2 Ohms: 300 W x 1 channel
Power at 1 Ohm: N/A
Bridged Power: N/A
Minimum Impedance Unbridged: 2 Ω
Best Frequency Response: 10 Hz – 1 kHz
THD at Rated RMS Power: 1%
Signal to Noise Ratio: 100 dB
Input Voltage: 14.4 V
Amplifier Class: D
Built-in DSP: No
Remote Control: Optional
Low-Pass Crossover Frequency: 50–500 Hz
Low-Pass Slope: 12 or 24 dB/octave, Off
High-Pass Crossover Frequency: N/A
High-Pass Slope: N/A
Bass Boost: No
Fan Cooled: No
Fuse Rating: 30 A
Speaker Level Inputs: Yes
Preamp Outputs: 2
Dimensions (W x H x D): 6-7/8" x 2" x 7-1/8"

Download Owner's Manual

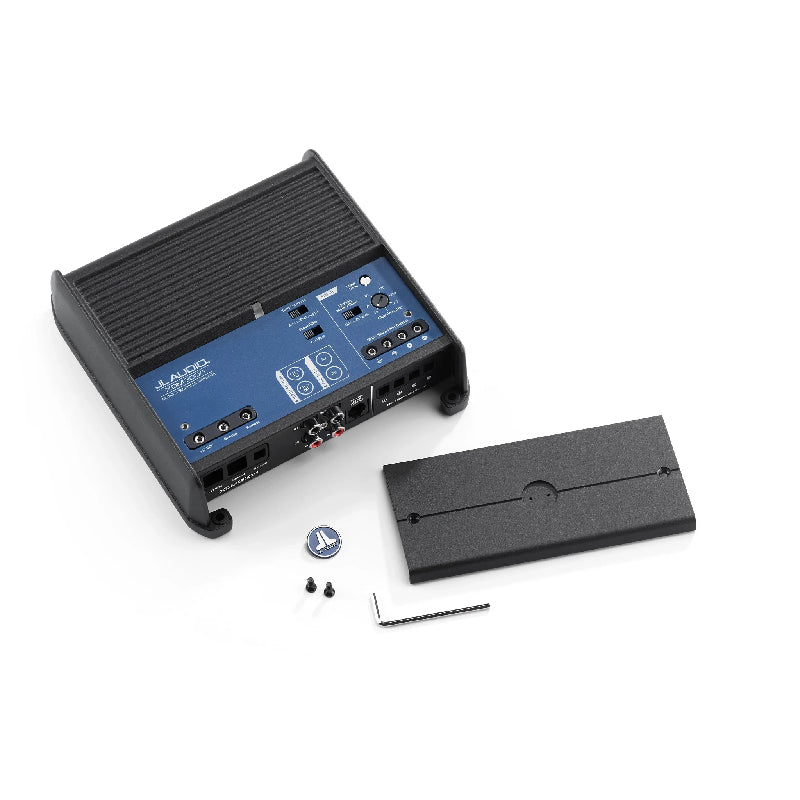

What's In The Box

• Mono car/marine amplifier

• Self-adhesive JL Audio badge

• 2.5mm Allen wrench

• Warranty information

• Owner's Manual
