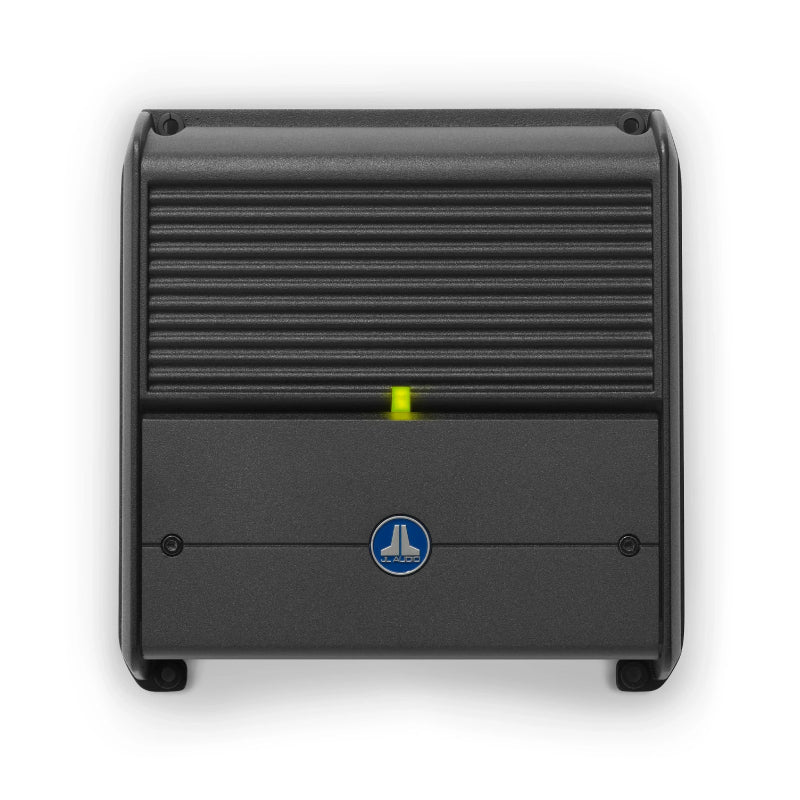

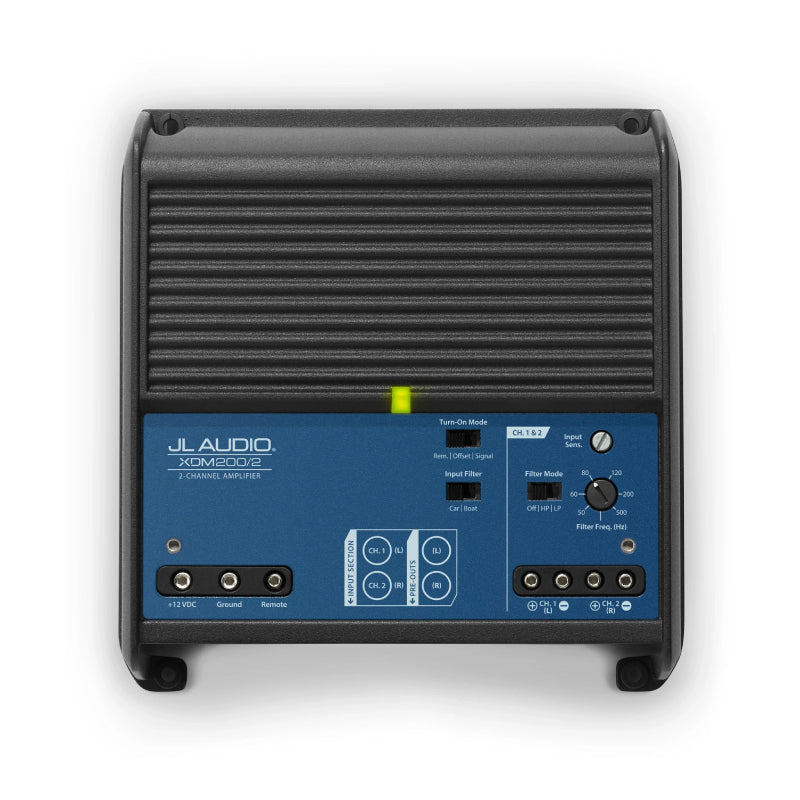

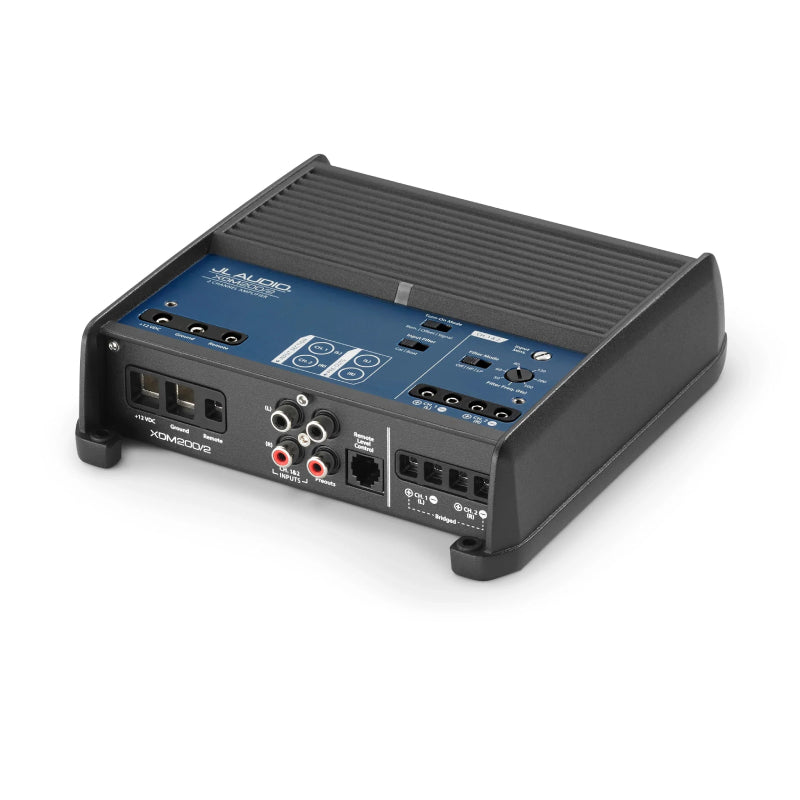

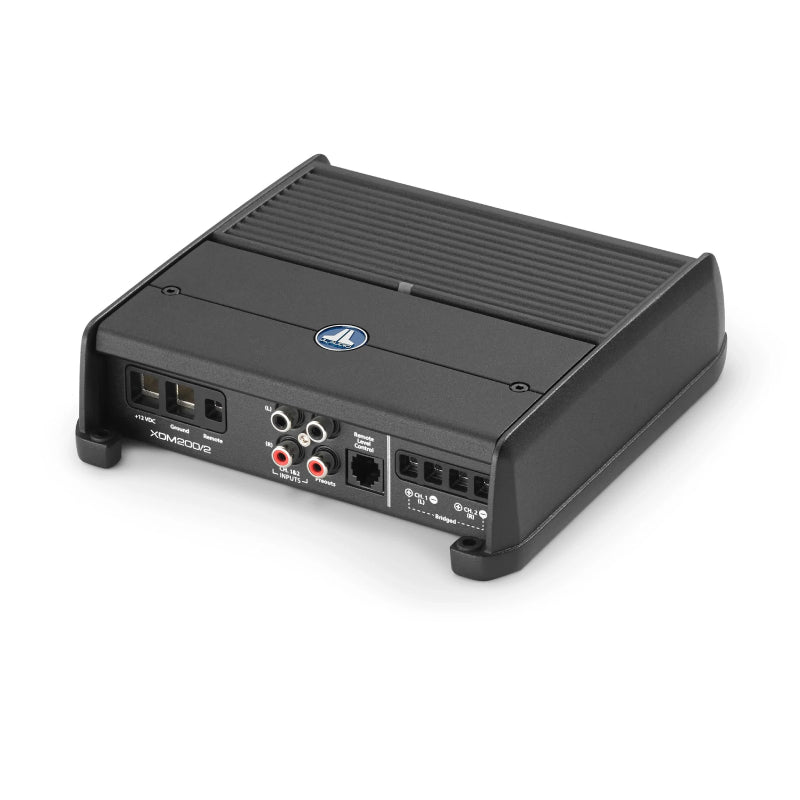

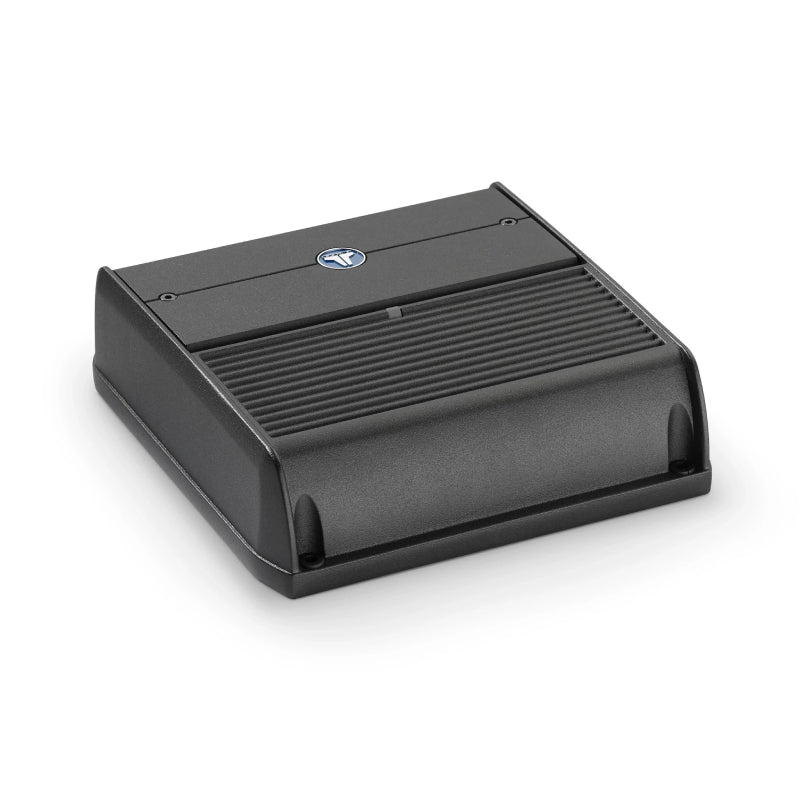

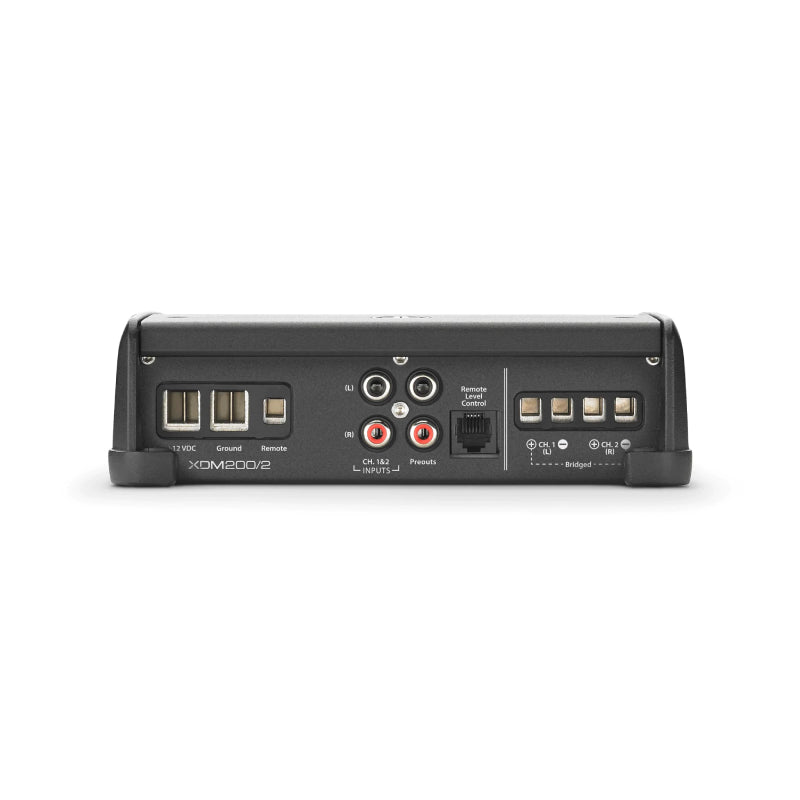

JL Audio XDM200/2

Name: JL Audio XDM200/2
Brand: JL Audio
SKU: XDM200/2
Price: 450.49 USD
Availability: InStock

In Stock

XDM Series 2-Channel 100W RMS x 2 at 2 Ohms, Class-D Full Range Car/Marine Amplifier with NEXD™ Switching Technology

Part No.-XDM200/2

$450.49

Reserve Yours Now

Reserve yours from the next batch. Charged at checkout, shipped in order received.

Out of stock

One email the moment stock lands, nothing else.
Waitlist is notified in the order it was joined.
Unsubscribe from the email itself, one click.

30 Days Returns Accepted.
Lifetime Tech Support Included.
Free Shipping on Orders $49 and Up

SKU :XDM200/2

Brand :JL Audio

Fit Guide. Check if it will fit your car.
We Price Match! Call Us! +1 (310) 594-8918

JL Audio XDM200/2 XDM Series 2-Channel Class D Full-Range Car and Marine Amplifier

Powerful Two-Channel Audio Performance

The JL Audio XDM200/2 delivers up to 100 watts RMS per channel at 2 ohms, providing powerful amplification for compatible car and marine audio systems. Its two-channel configuration offers a versatile solution for driving a pair of speakers or supporting a compatible bridged setup.

Efficient NexD™ Switching Technology

JL Audio NexD™ switching technology is designed to deliver high output from a compact amplifier while reducing current draw and heat. Differential-balanced inputs and a dual-mode input filter help reject unwanted noise, supporting clear and consistent sound reproduction in vehicle and marine environments.

Fine-Tune Your Audio

Studio-grade signal processing, fully variable filters, and calibrated potentiometers provide flexible sound adjustment for your audio system. The controls are positioned beneath a sealed security cover to help protect them from environmental exposure.

Flexible Automatic Turn-On and Thermal Management

The XDM200/2 supports automatic turn-on through signal sensing, DC-offset sensing, or a conventional +12V remote turn-on lead. Advanced rollback protection helps manage thermal conditions during demanding operation, while the all-aluminum, powder-coated housing is designed to resist corrosion.

Versatile Installation for Car and Marine Systems

Designed for compatible car and marine audio applications, this amplifier supports flexible system configurations, including bridged operation when the connected load meets JL Audio's specifications. Proper wiring, grounding, speaker impedance, and ventilation help support reliable performance.

Upgrade Your Audio System with JL Audio

Choose the JL Audio XDM200/2 for efficient Class D amplification, adjustable audio processing, and flexible two-channel performance. It is a practical upgrade for compatible car and marine audio systems seeking powerful, clear sound in a compact design.

FIDELITY FOR ALL: Our exclusive dual-mode input filter and differential-balanced inputs result in outstanding noise rejection and crystal-clear audio performance in boats or cars.
EQUIPPED WITH NexD™: Advanced switching technology for exceptional efficiency reduces current draw and heat, permitting reliable high-power output from a compact and easy-to-install chassis.
STUDIO-GRADE SIGNAL PROCESSING: Beneath every XDM amplifier’s sealed security cover, you’ll find audiophile-grade signal processing with fully variable filters and calibrated potentiometers.
ADVANCED ROLLBACK PROTECTION: Innovative circuit design ensures the amplifier will never shut down due to thermal overload and keeps the music playing, even under the most demanding conditions.
AUTO TURN-ON CAPABILITIES: Choose from 3 options: auto signal sensing with +12-volt remote out; auto DC-offset sensing with +12-volt remote out; or conventional +12 volt turn-on lead.
BUILT TOUGH: The all-aluminum, powder-coated housing inhibits corrosion, and a sealed security cover protects controls from the elements.
FULL-RANGE STEREO: These amplifiers are available in 2, 4, 6 and 8 channel variants.
SYSTEM AMPLIFIERS: There are 3 models to power a whole system with 2 or 4 full-range outputs plus a subwoofer output.
MONOBLOCK: Three models are available with 300, 600 and 1000 watts.
24-VOLT OPTIONS: These amplifiers are available in 6 and 8 channel variants.

Additional Information

Brand	JL Audio
Model	XDM200/2
Condition	Brand New
Sold As	Single
RMS Power Handling	100
Maximum Power	200
Frequency Response	12-22000
Number of Channels	2
Amplifier Class	D
Fuse Rating	20

RMS Power Output (Watts x Channels): 75 x 2
Peak Power Output (Watts x Channels): ---
Power at 2 Ohms (Watts x Channels): 100 x 2
Power at 1 Ohm (Watts x Channels): ---
Bridged Power (Watts x Channels): 200 x 1
Minimum Impedance Bridged: 4
Minimum Impedance Unbridged: 2
Best Frequency Response: 12Hz–22k Hz
THD at Rated RMS Power: 1%
Signal to Noise Ratio: 104 dB
Input Voltage: 14.4v
Amplifier Class: D
Built-in DSP: No
Remote Control: Optional
Low-Pass Crossover Frequency: 50–500 Hz
Low-Pass Slope (dB/octave): 12 dB/octave
High-Pass Crossover Frequency: 50–500 Hz
High-Pass Slope (dB/octave): 12 dB/octave
Bass Boost: No
Bass Boost Frequency: N/A
Fan Cooled: No
Fuse Rating: 20
Speaker Level Inputs: Yes
Preamp Outputs: 2
Width (inches): 6-7/8
Height (inches): 2
Depth (inches): 7-1/8

Download Owner's Manual

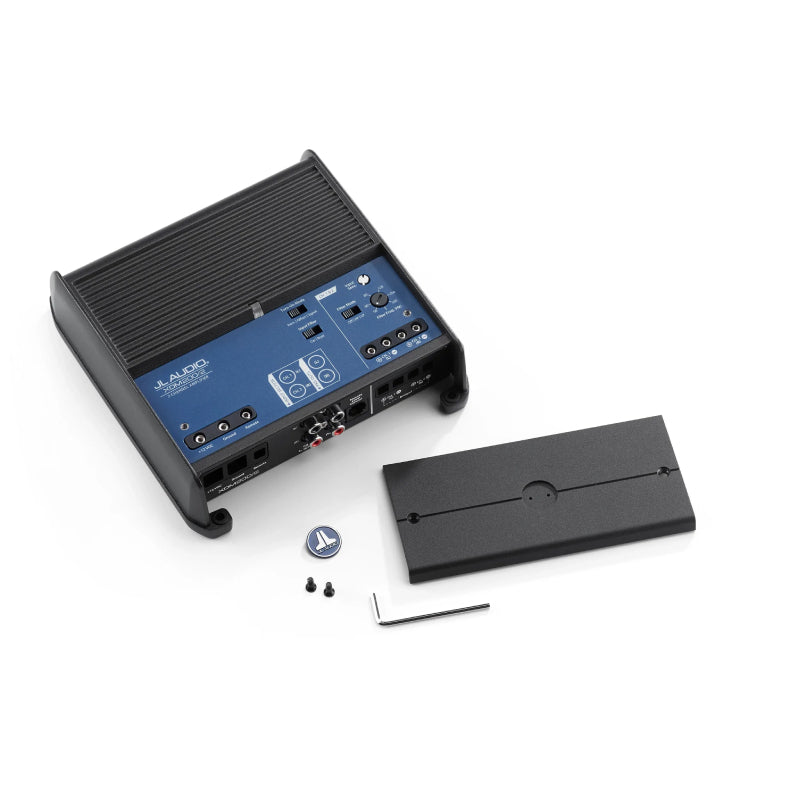

What's In The Box

• 2-Channel car/marine amplifier

• 2.5 mm Allen wrench

• Self-adhesive JL Audio badge

• Warranty information

• Owner's Manual
