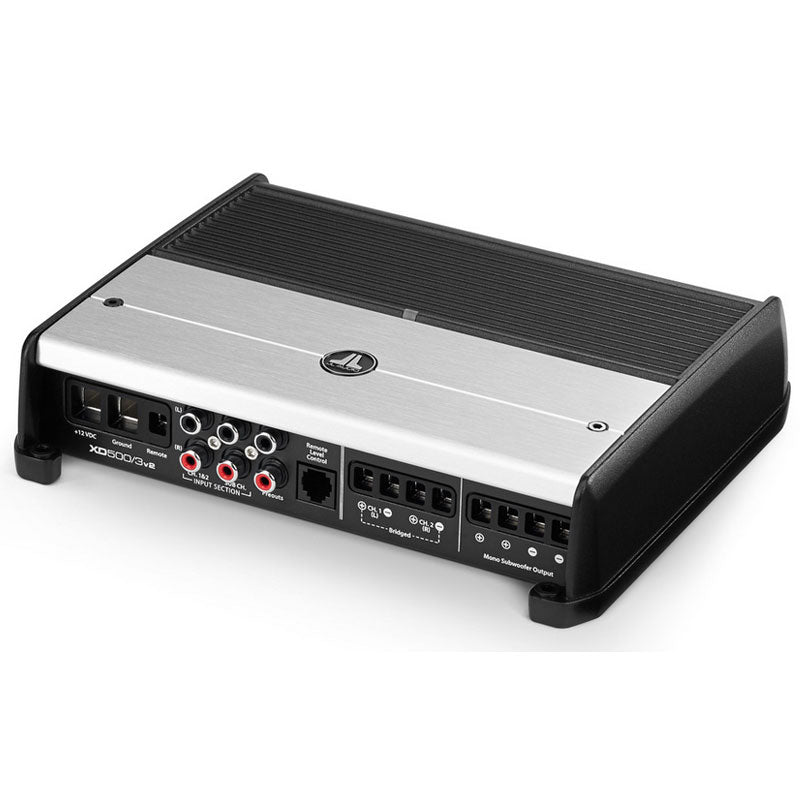

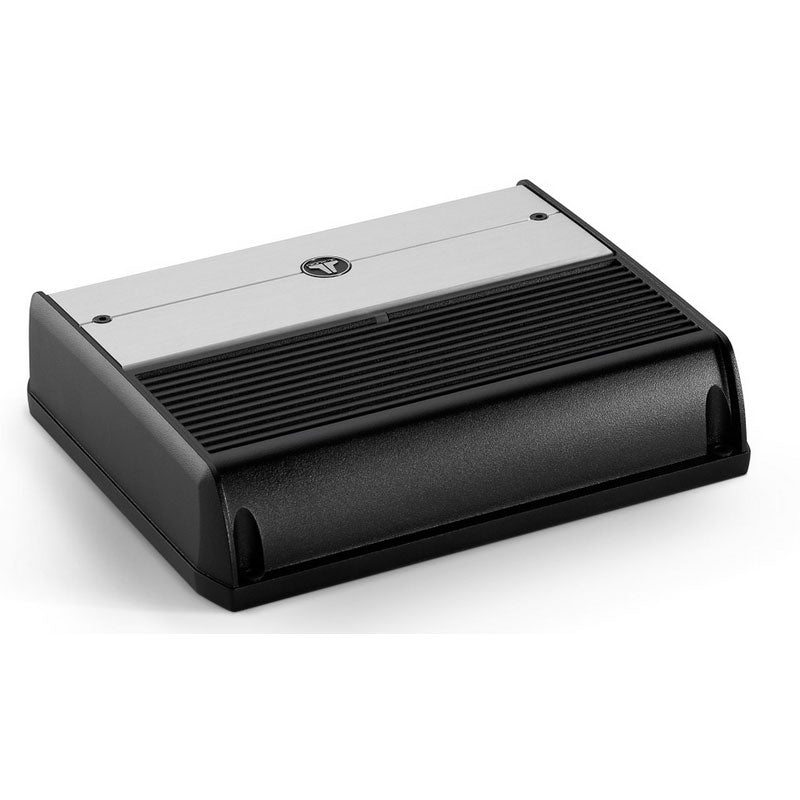

JL Audio XD500/3v2 Class D 3-Channel Car Amplifier

Power Your Speakers and Subwoofer

The JL Audio XD500/3v2 combines two full-range amplifier channels with a dedicated mono subwoofer channel in one compact unit. It delivers 75 watts RMS per main channel and 180 watts RMS to the subwoofer channel at 4 ohms, or 100 watts RMS per main channel and 300 watts RMS to the subwoofer channel at 2 ohms. This three-channel design offers a convenient way to power a pair of speakers and a subwoofer from a single amplifier.

Efficient NexD™ Switching Technology

JL Audio NexD™ switching technology uses an advanced self-oscillating modulator designed to help reduce power supply voltage fluctuation noise. This efficient amplifier design helps deliver strong audio output while managing heat and power consumption in a compact chassis.

Advanced Rollback Protection

Advanced Rollback Protection helps regulate peak power output when the amplifier approaches elevated operating temperatures. Rather than immediately shutting down under thermal stress, the system reduces output to help maintain operation until temperatures return to safer levels.

Differential-Balanced Inputs for Noise Rejection

Differential-balanced inputs help protect the audio signal from unwanted noise induced through signal cables. The amplifier also supports automatic turn-on when an audio signal is detected, providing added convenience for compatible installations.

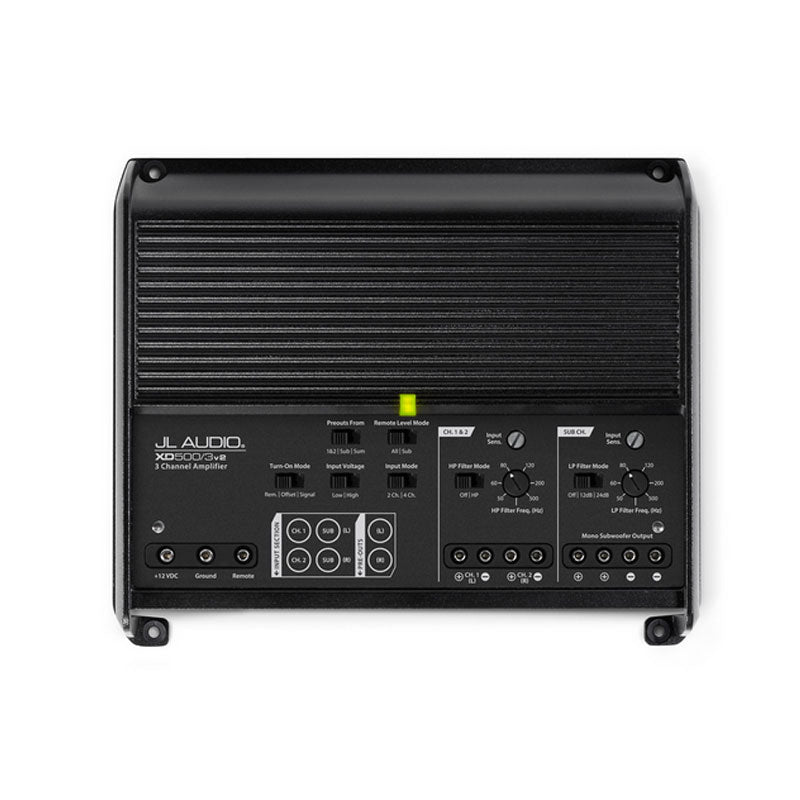

Adjustable Filters for Refined Sound

Variable high-pass, band-pass, and low-pass filter options help tailor the amplifier's output to your speaker and subwoofer setup. These adjustment capabilities provide greater control over frequency response, helping create a more balanced and defined listening experience.

Upgrade Your Car Audio with JL Audio

Choose the JL Audio XD500/3v2 for versatile three-channel amplification, efficient NexD™ technology, and adjustable filtering. Power your speakers and subwoofer with one compact amplifier designed to deliver dynamic, well-balanced audio performance.

Power Your Entire Sound System with One Amplifier: The JL Audio XD500/3v2 combines two speaker channels and one dedicated subwoofer channel in a compact 3-channel design, delivering 75W RMS x 2 plus 180W RMS x 1 at 4 ohms or 100W RMS x 2 plus 300W RMS x 1 at 2 ohms for an exciting, balanced listening experience.
Class D Efficiency with NexD™ Technology: Engineered with advanced NexD™ switching amplifier technology, this amplifier delivers impressive power with efficient operation, helping your speakers and subwoofer perform at their best without taking up excessive installation space.
Dial In Your Sound with Independent Filters: Customize your system using variable 50–500 Hz high-pass filtering for the front channels and adjustable 50–500 Hz low-pass filtering for the subwoofer channel, with selectable 12 or 24 dB/octave subwoofer filter slopes for greater control over your sound.
Reliable Performance When the Music Gets Loud: Advanced Rollback Protection helps manage output as operating temperatures rise, reducing the risk of thermal shutdown, while differential-balanced inputs help minimize noise from your vehicle's electrical system for cleaner playback.
Flexible Connections for a Custom Audio Upgrade: Featuring preamp inputs and outputs, speaker-level input compatibility, automatic turn-on through signal sensing or DC-offset sensing, and an optional wired remote for subwoofer or system-level adjustment, this amplifier makes integrating an aftermarket audio system more convenient.

Additional Information

Brand	JL Audio
Model	XD500/3v2
Condition	Brand New
Sold As	Single
Maximum Power	500
Frequency Response	12-22000
Number of Channels	3
Amplifier Class	D
Fuse Rating	50

Model: XD500/3v2
Amplifier Type: Car Audio Amplifier
Amplifier Class: Class D
Number of Channels: 3
Maximum Power Rating: 500W Max Power

Power Specifications:

RMS Power at 4 Ohms: 75W x 2 Channels + 180W x 1 Subwoofer Channel
RMS Power at 2 Ohms: 100W x 2 Channels + 300W x 1 Subwoofer Channel
Bridged Configuration: 200W RMS x 1 at 4 Ohms + 300W RMS x 1 at 2 Ohms

Audio and Signal Processing:

Front Channel Filter: Variable High-Pass
Front Channel Filter Frequency: 50–500 Hz
Front Channel Filter Slope: 12 dB/Octave
Subwoofer Channel Filter: Variable Low-Pass
Subwoofer Filter Frequency: 50–500 Hz
Subwoofer Filter Slope: 12 or 24 dB/Octave
Amplifier Technology: NexD™ Switching Amplifier Technology
Input Noise Reduction: Differential-Balanced Inputs
Thermal Protection: Advanced Rollback Protection System
Remote Control Compatibility: Optional Wired Remote for Subwoofer or System-Level Control

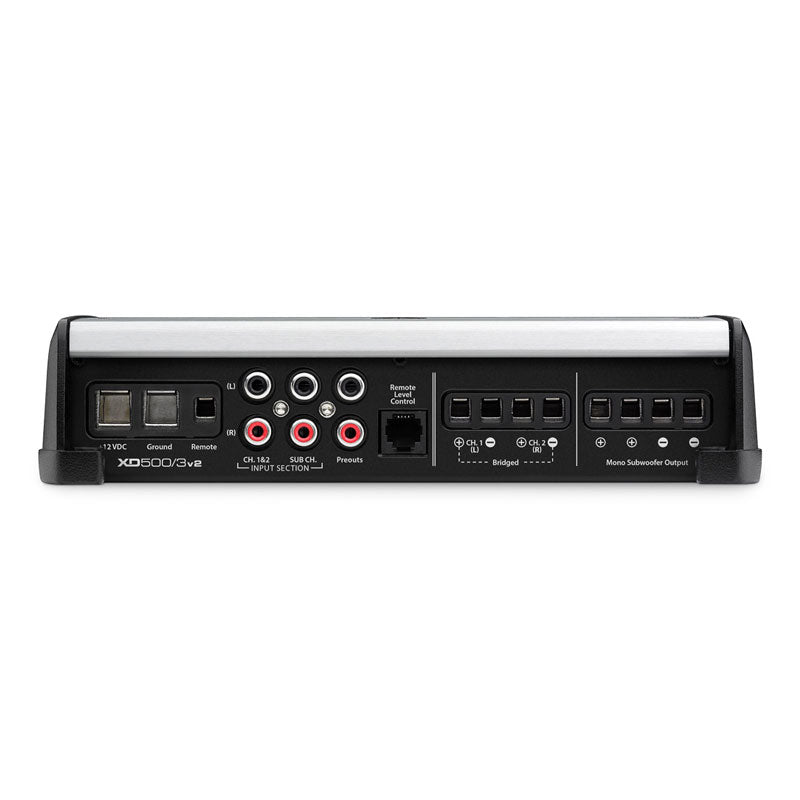

Connection Specifications:

Preamp Inputs: Yes
Preamp Outputs: Yes
Speaker-Level Inputs: Yes
Maximum High-Level Input: 8V RMS
Automatic Turn-On: Signal Sensing or DC-Offset Sensing
Recommended Power Wire Gauge: 4 AWG
Recommended Fuse Rating: 50A
Onboard Fuses: None
Installation Hardware and Wiring: Not Included

Physical Specifications:

Width: 8-9/16 in
Height: 2 in
Depth: 7-1/8 in

What's In The Box

• 3-Channel Car Amplifier

• 2.5mm Allen wrench

• Self-adhesive JL Audio badge

• Owner's Manual
