JL Audio VXi-HUB Command and Optical Audio Network Hub for VXi Series Amplifiers

Simplified Control for Multiple VXi Amplifiers

The JL Audio VXi-HUB simplifies the setup and management of networked VXi amplifiers. It allows multiple amplifiers to appear in a single TüN™ software session, making it easier to configure and tune a flexible audio system with integrated digital signal processing.

Network Up to Six VXi Amplifiers

The VXi-HUB features one Master and five Slave JLid-COMM connections, allowing you to network up to six VXi amplifiers using standard CAT5e cables. This configuration supports coordinated system control through a compatible DRC controller, with commands such as master volume, subwoofer level, fader, zone level, and preset selection.

Streamlined System Tuning

Manage and tune connected VXi amplifiers from a single TüN™ software session. Switch between amplifiers during the tuning process without repeatedly disconnecting and reconnecting cables, helping make multi-amplifier configuration more efficient.

Synchronized Optical Digital Audio Distribution

The VXi-HUB distributes synchronized optical digital audio from a source unit to connected amplifiers. Connect the source's optical output to the hub's Optical Audio Input, then use its five Optical Outputs to distribute the signal without the delays associated with passing digital audio through a chain of amplifiers. It supports S/PDIF signals up to 24-bit/192 kHz.

Optional Wireless Setup and Tuning

A dedicated JLid-COMM accessory port supports the optional VXi-BTC Bluetooth® Communicator, sold separately. When connected, it enables wireless setup and tuning of the amplifier network using a compatible iOS® or Android® device with the TüN™ Mobile or TüN™ Express apps.

Convenient Power Through JLid

The VXi-HUB receives power through its JLid™ connection to VXi amplifiers, eliminating the need for separate power or turn-on wiring for the hub. This helps simplify installation while keeping amplifier networking and digital audio distribution organized.

Take Control of Your VXi Audio System

Enhance your JL Audio VXi installation with the VXi-HUB. Network multiple amplifiers, simplify system tuning, and distribute synchronized optical digital audio through one convenient hub designed for advanced multi-amplifier configurations.

Flexible Network Control: Simplifies control of a networked VXi amplifier system
Data Networking Function: Allows synchronized commands (Master Volume, Subwoofer Level, Fader, Zone Level, Preset Selection) to be sent to up to six VXi amplifiers from a single DRC controller (DRC-100, DRC-200, or DRC-205, sold separately)
TüN® Software Integration: Enables tuning of all networked amplifiers from a single TüN® software session, without reconnecting multiple cables

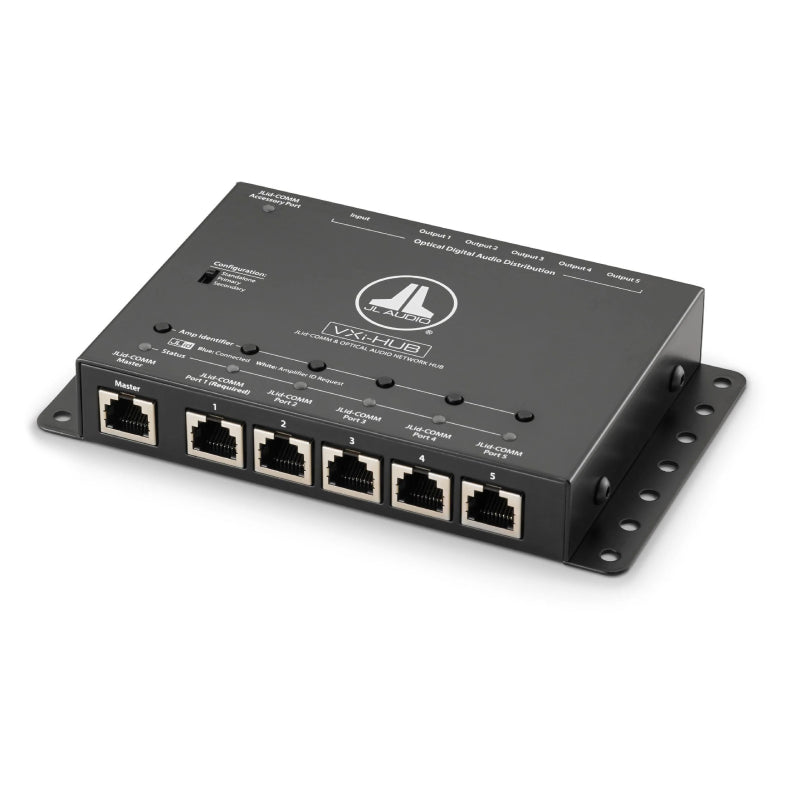

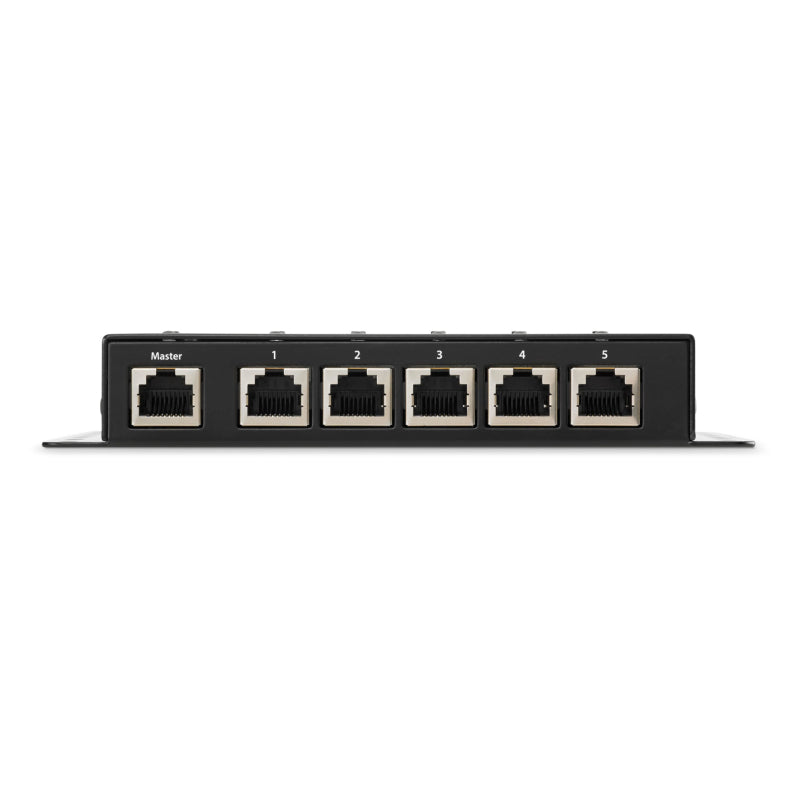

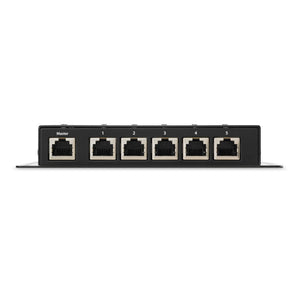

Amplifier Networking: Equipped with one Master and five Slave JLid-COMM connections, allowing networking of up to six VXi amplifiers using CAT5e cables
Daisy-Chaining Capability: Can connect up to two VXi-HUBs to control up to ten VXi amplifiers (one master amplifier and nine slave amplifiers)
Wireless Setup Option: Includes a dedicated JLid-COMM accessory port for optional VXi-BTC Bluetooth® Communicator (sold separately), enabling wireless setup and tuning via compatible iOS® or Android® device with the TüN® Mobile App
Optical Audio Distribution: Distributes synchronous optical digital audio signals to amplifiers, preventing delay in digital signal transmission

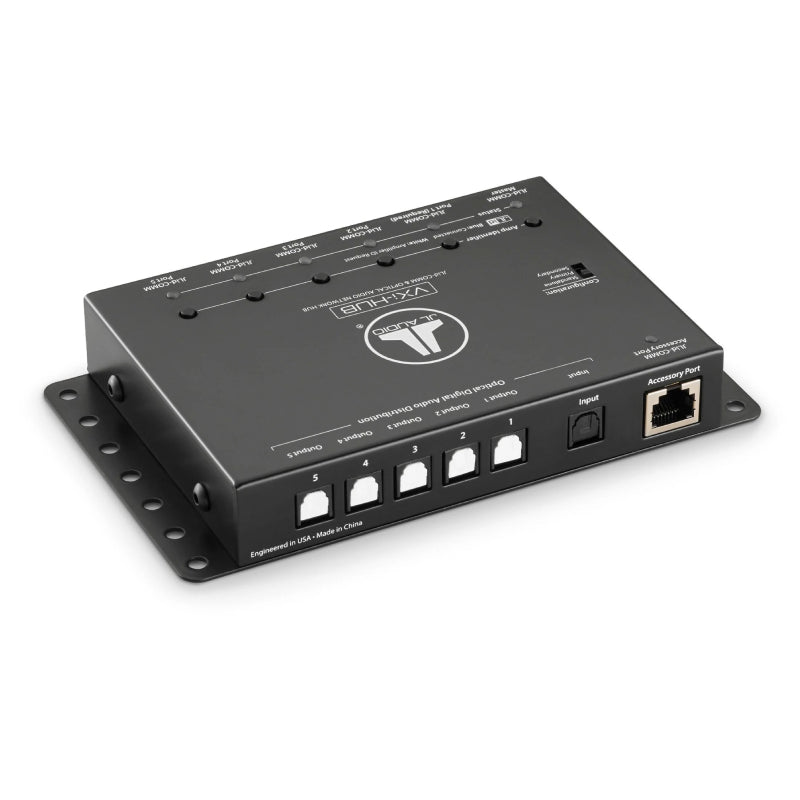

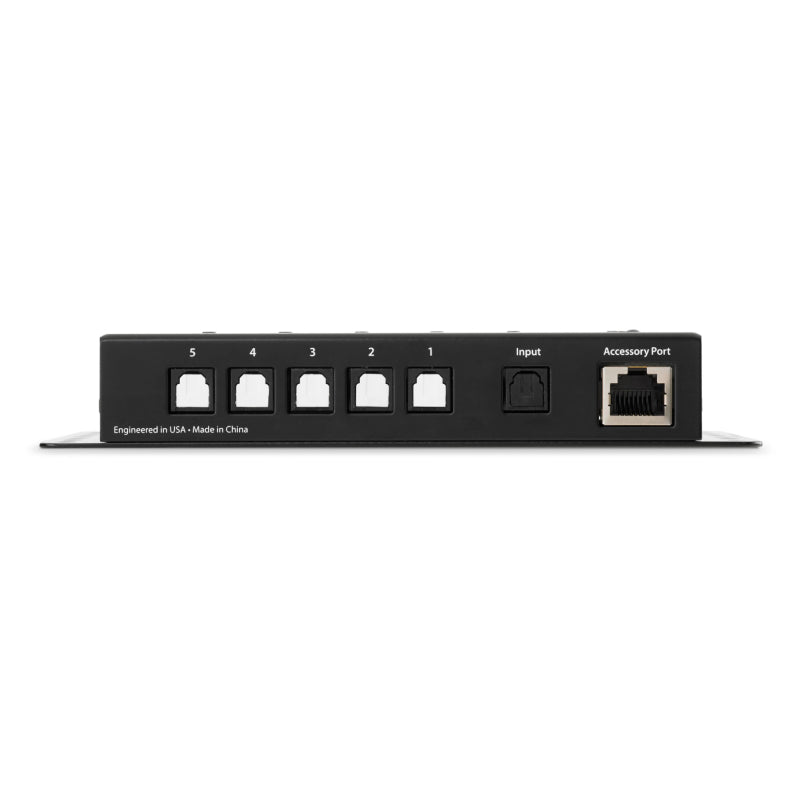

Optical Inputs/Outputs: Features one Optical Audio Input and five synchronous Optical Outputs, handling S/PDIF signals up to 24 bits/192 kHz
Powered via JLid™: No separate power or turn-on wiring required, powered through the JLid™ connection to VXi amplifiers

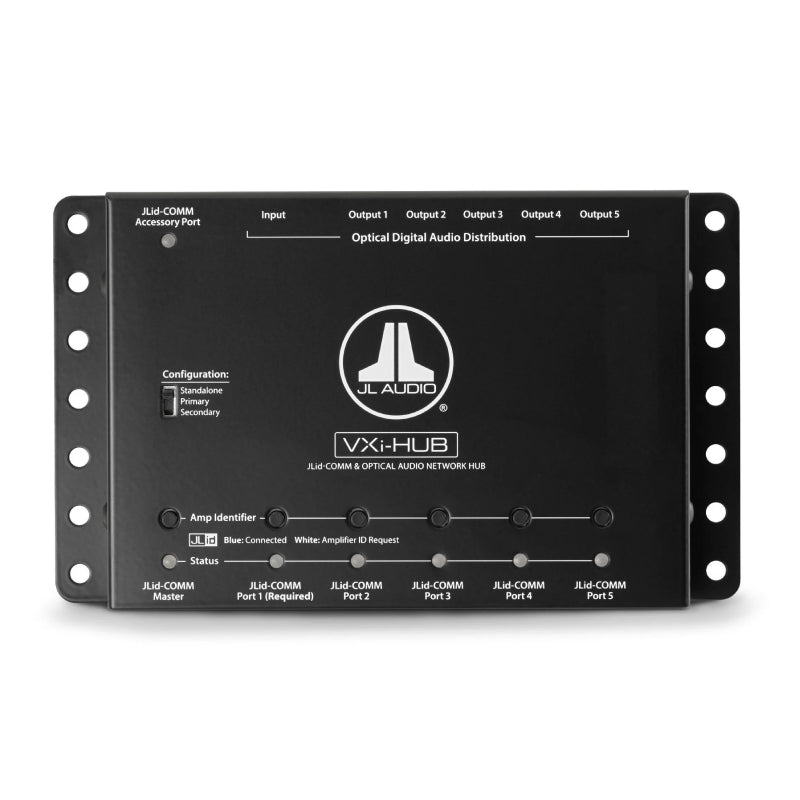

Configuration Features: Includes 1 Master Input, 5 Slave Outputs, 1 Accessory Port, and 3-way configuration switch (Standalone, Primary, Secondary)
Status LEDs: Equipped with amplifier identifier status LEDs for easy monitoring

Additional Information

Brand	JL Audio
Model	VXi-HUB
Condition	Brand New

Product Type: Network Hub / Audio & Control Distribution
Amplifier Compatibility: JL Audio VXi series amplifiers
Data: 1 master + 5 slave JLid-COMM ports (CAT-5e)
Digital Audio: 1 optical input, 5 optical outputs (S/PDIF, up to 24-bit / 192 kHz)
3-position configuration switch (Standalone / Primary / Secondary)
Amp Identifier buttons for each JLid port
Indicators: Status LEDs for each JLid-COMM port and accessory port
Expandability: Up to 6 amplifiers per HUB, up to 10 with two daisy-chained HUBs
Wiring Included: None (CAT-5e or optical cables not included)
Dimensions: 6-1/2"W × 1"H × 3-7/8"D
Condition: Brand new

What's In The Box

• VXi Series Amplifiers

• Network hub

• Owner's Manual
