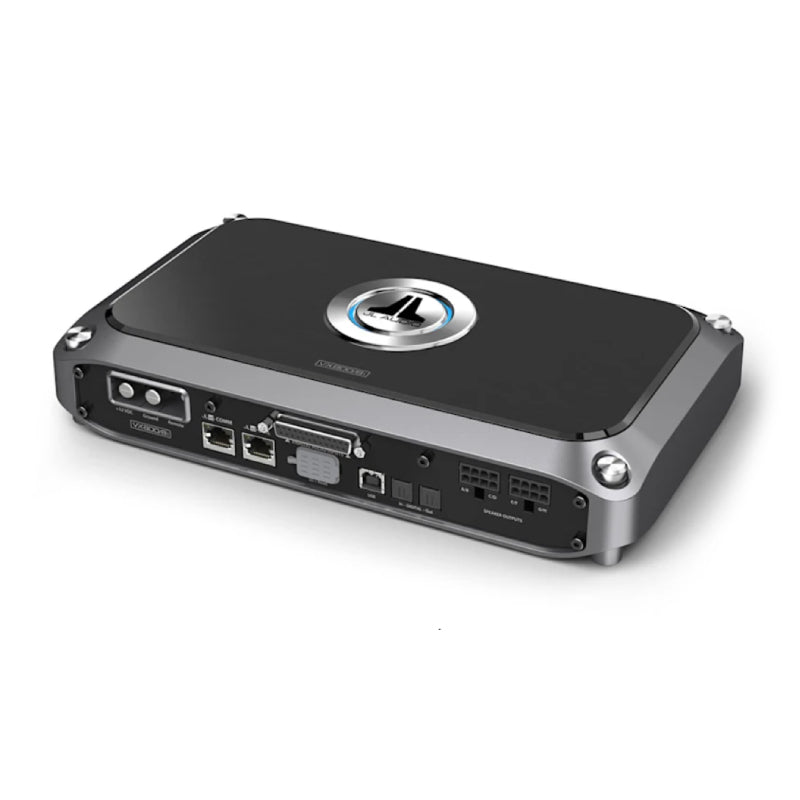

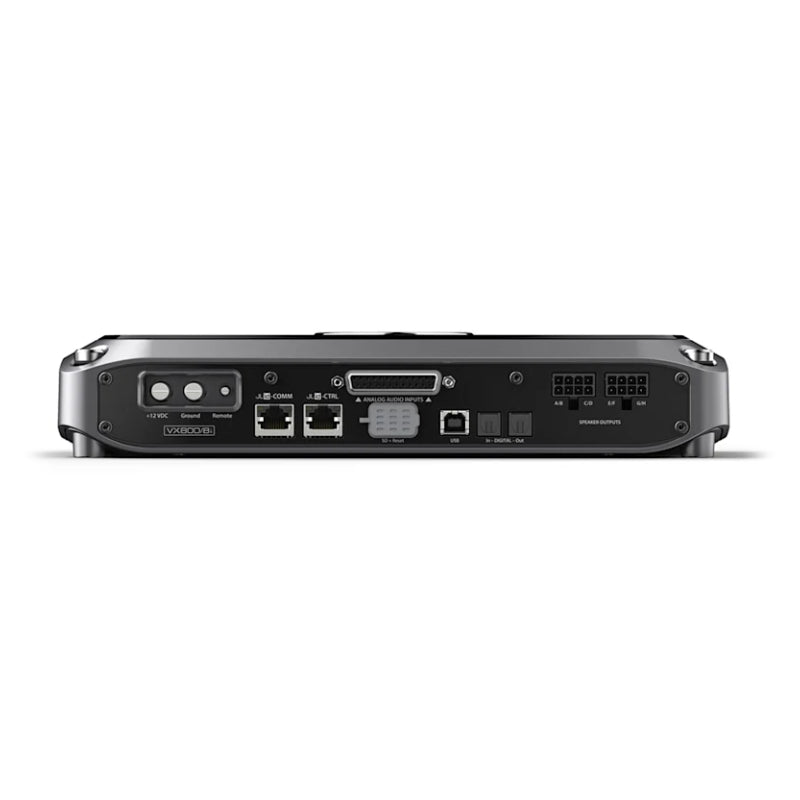

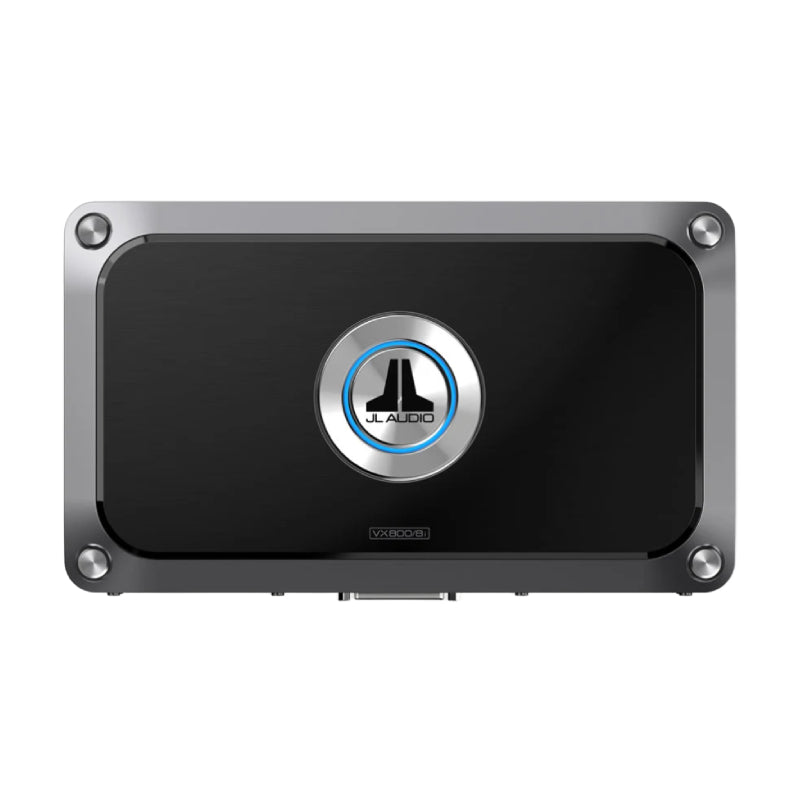

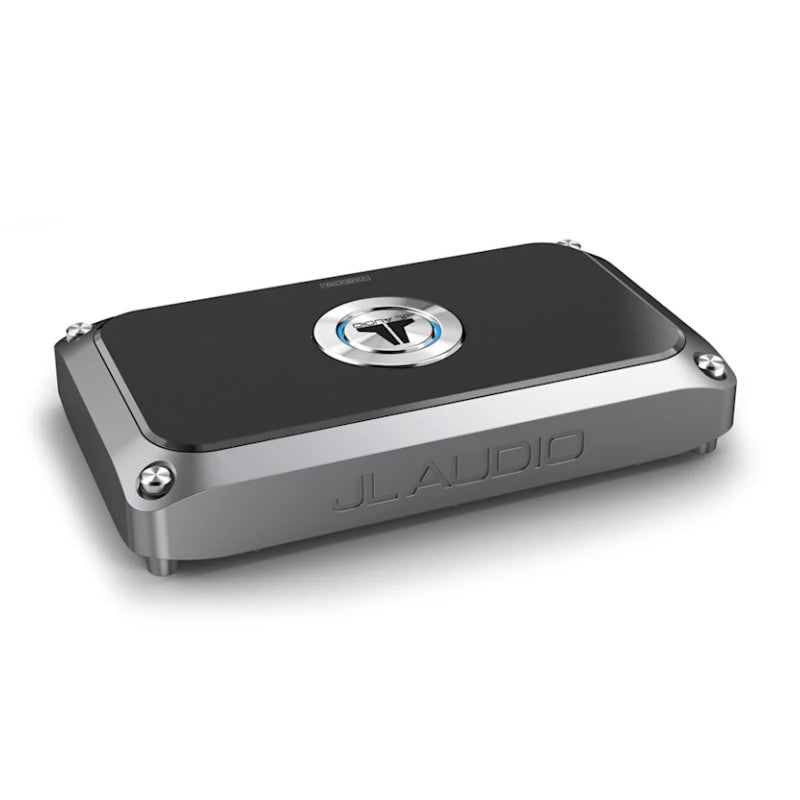

JL Audio VX800/8i

Name: JL Audio VX800/8i
Brand: JL Audio
SKU: VX800/8i
Price: 1572.49 USD
Availability: InStock

In Stock

VXi Series 8-Channel 100W RMS x 8 at 2 Ohm, Class-D Full Range Car Amplifier with NexD2 Switching Technology and Built-In Digital Signal Processing Output

Part No.-VX800/8i

$1,572.49 _$1,889.99 SAVE $317.50

Reserve Yours Now

Reserve yours from the next batch. Charged at checkout, shipped in order received.

Out of stock

One email the moment stock lands, nothing else.
Waitlist is notified in the order it was joined.
Unsubscribe from the email itself, one click.

30 Days Returns Accepted.
Lifetime Tech Support Included.
Free Shipping on Orders $49 and Up

SKU :VX800/8i

Brand :JL Audio

Fit Guide. Check if it will fit your car.
We Price Match! Call Us! +1 (310) 594-8918

Vehicle Fitment

Checking your selected vehicle…

JL Audio VX800/8i VXi Series 8-Channel Class-D Full-Range Car Amplifier with DSP and NexD2 Technology

Eight Channels of Powerful Audio Performance

The JL Audio VX800/8i delivers high-performance amplification for advanced multi-speaker car audio systems. Its eight-channel design produces 100 watts RMS per channel into 2 ohms, providing flexible power for a wide range of compatible speakers. The full-range Class-D architecture combines efficient power delivery with the performance needed for detailed, dynamic sound reproduction.

Built-In Digital Signal Processing

Integrated digital signal processing gives you extensive control over your system's sound. Use JL Audio TüN® software to adjust equalization, signal delay, audio mixing, routing, and output levels. This software-based approach allows you to fine-tune the system without relying on physical adjustment knobs and switches on the amplifier.

Efficient NexD2 Switching Technology

JL Audio NexD2 switching technology combines efficient Class-D amplification with advanced audio performance. The VX800/8i is designed to deliver clean output while managing power efficiently, making it suitable for sophisticated car audio systems that require multiple independently configurable channels.

Clean Signal Processing and Noise Rejection

Differential-balanced inputs help reject unwanted noise entering through audio signal connections. The amplifier can also accept speaker-level signals, allowing integration with compatible factory audio systems without necessarily requiring a separate line-output converter. These features help maintain a clean signal path in complex installations.

Advanced Thermal Rollback Protection

The VX800/8i includes advanced rollback protection that monitors operating temperature and adjusts amplifier operation when necessary. This helps manage thermal conditions and reduce the likelihood of a complete shutdown during demanding use.

Flexible System Configuration

With eight amplifier channels and configurable digital signal processing, the VX800/8i supports a variety of speaker system layouts. Customize signal routing, equalization, and output levels through TüN® software to match your vehicle's audio configuration and listening preferences. Confirm supported channel configurations and speaker impedance requirements in the owner's manual before installation.

Convenient Computer-Based Tuning

A USB connection allows the amplifier to interface with a compatible computer for configuration through JL Audio TüN® software. Adjust system settings and refine audio performance from one software interface, making detailed tuning more convenient during installation and future system adjustments.

Transform Your Car Audio with JL Audio VXi

Upgrade your system with the JL Audio VX800/8i, an eight-channel amplifier combining efficient Class-D performance, NexD2 switching technology, and integrated digital signal processing. Enjoy extensive tuning flexibility, configurable audio routing, and precise control over your multi-speaker system.

Noise-Free Signal: Differential-balanced inputs eliminate noise from your vehicle's electrical system, including alternator whine and other unwanted sounds.
Versatile Inputs: Preamp and speaker-level inputs (speaker wire to RCA adapter required for speaker-level input) allow flexible connectivity.
High-Level Input Capacity: Handles up to 16 volts RMS (about 60 watts) for robust signal handling.
Smart Auto Turn-On: DC offset or signal sensing eliminates the need for a remote lead.
Digital Connectivity: 2-channel digital input and output (S/PDIF: up to 24-bit 192 kHz in, 24-bit 96 kHz out).
Analog Output: 2-channel analog preamp output (4V RMS).
JLid™ Expansion: Connections available for optional Network Hub, Bluetooth Communicator, and Digital Remote Control.
USB Control: USB connection for devices running the TüN® app (6-foot cable included).
Onboard Tuning Power: Full suite of DSP tools including equalization, delay, crossover routing, mixing, and more for precise audio customization.
Advanced Class-D Amplifier Design: High-speed switching synchronizes power supply and output stages for exceptional fidelity with ultra-low noise and distortion.
No Knobs or Switches: Entire setup and tuning is performed via TüN® software on computers or most handheld devices.
Eliminate Audible Noises: Accepts speaker-level signals without a LOC and provides superior noise rejection.
Advanced Rollback Protection: Proprietary thermal-monitoring system adjusts operation to prevent shutdowns and ensure continuous playback.
Fully Configurable Output Channels: TüN® software allows complete control over signal routing, EQ, output levels, and DRC functionality.
Hardware Note: Wiring, fuse, and other hardware are not included.
Recommended Power Setup: 4-gauge power and ground leads with a 80-amp fuse recommended.

Additional Information

Brand	JL Audio
Model	VX800/8i
Condition	Brand New
Sold As	Single
RMS Power Handling	100
Maximum Power	800
Frequency Response	12-24000
Number of Channels	8
Amplifier Class	D
Fuse Rating	80

High-Resolution Audio Processing: 24-bit / 96 kHz digital audio processing
Smart App-Based Tuning: DSP adjustments and settings via JL Audio’s TüN™ app (PC & Mac) using USB or Bluetooth with optional BTC module
Multi-Level Tuning Control: Three project tuning levels: Basic, Advanced, and Expert
Flexible Signal Management: Input routing and signal mixing
Clean, Clipping-Free Setup: Adjustable gain controls with clip indication
Fully Custom Crossovers: Adjustable high-pass, low-pass, and band-pass filters
Precision Filter Slopes: Selectable slopes: 6, 12, 18, 24, 30, 36, 42, or 48 dB/octave
Advanced Equalization: 10-band EQ with graphic control in Basic mode and parametric control in Advanced and Expert modes
Total Phase Control: Phase and polarity adjustment
Pinpoint Time Alignment: Time alignment adjustable in 0.01 ms (1/8") increments

TUN Desktop App:
Windows
MAC

Specifications:

RMS Power Output:75x8
Peak Power Output:N/A
Power at 2 Ohms:100x8
Power at 1 Ohm:---
Bridged Power:200x4
Minimum Impedance Bridged:4
Minimum Impedance Unbridged:2
Frequency Response:12-24kHz
THD at Rated RMS Power:1%
Signal to Noise Ratio:80dB
Input Voltage:14.4V
Amplifier Class:D
Built-in DSP:Yes
Remote Control:Via TüN software
Low-Pass Crossover:Via TüN software
Low-Pass Slope:Via TüN software
High-Pass Crossover:Via TüN software
High-Pass Slope:Via TüN software
Bass Boost:No
Bass Boost Frequency:N/A
Fan Cooled:No
Fuse Rating:80
Speaker Level Inputs:Yes
Preamp Outputs:2
Width:11-5/16in
Height:2-1/8in
Depth:6-3/4in

Download Owner's Manual

What's In The Box

• 8-Channel Class-D Full Range Car Amplifier

• Power connector

• 14" Analog Input harness (25-pin D-Sub/10 RCA)14" Analog Input harness (25-pin D-Sub/10 RCA)

• 18" ABCD Speaker output harness

• 18" EFGH Speaker output harness

• 6' USB cable (Type A USB on one end and Type B USB on other end)

• (4) Corner caps

• (4) Silver thumbscrews

• (4) Black hex cap machine screws

• Corner cap tool

• 2.5 mm Hex wrench

• 3 mm Hex wrench

• JL Audio logo badge

• Connection Guide

• Registration card

• Owner's Manual
