JL Audio MMR-5N2K

Name: JL Audio MMR-5N2K
Brand: JL Audio
SKU: MMR-5N2K
Price: 152.99 USD
Availability: InStock

In Stock

Volume Controller for MediaMaster Source Unit with NMEA 2000 Network Connectivity

Part No.-MMR-5N2K

$152.99

Reserve Yours Now

Reserve yours from the next batch. Charged at checkout, shipped in order received.

Out of stock

One email the moment stock lands, nothing else.
Waitlist is notified in the order it was joined.
Unsubscribe from the email itself, one click.

30 Days Returns Accepted.
Lifetime Tech Support Included.
Free Shipping on Orders $49 and Up

SKU :MMR-5N2K

Brand :JL Audio

Fit Guide. Check if it will fit your car.
We Price Match! Call Us! +1 (310) 594-8918

JL Audio MMR-5N2K Volume Controller for MediaMaster® Source Units with NMEA 2000® Network Connectivity

Convenient Auxiliary Volume Control

The JL Audio MMR-5N2K is a wired remote volume controller designed to add convenient auxiliary volume adjustment to compatible MediaMaster® source units. It provides a dedicated control point for managing audio levels across your marine audio system.

NMEA 2000® Network Connectivity

Equipped with an NMEA 2000® Micro-C connector, the MMR-5N2K connects to a compatible host MediaMaster® source unit through an NMEA 2000® network or an MMC-PN2K powered network cable. Network cables are sold separately. The controller is designed for use with a single MediaMaster® source unit.

Simultaneous Audio Zone Adjustment

When connected, the MMR-5N2K adjusts all audio zones simultaneously. For proper operation, the level control mode for each audio zone on the host MediaMaster® source unit must be set to Relative or Variable. The controller's functionality is provided by the connected host source unit.

Installation Components Included

The package includes the wired volume controller, mounting hardware, and documentation to help with installation and setup. Refer to the owner's manual for connection requirements and operating instructions.

Add Convenient Volume Control to Your Marine Audio System

Enhance your compatible MediaMaster® setup with the JL Audio MMR-5N2K. Its wired remote control and NMEA 2000® network connectivity provide convenient, centralized volume adjustment across your audio zones.

Effortless Marine Audio Control: The JL Audio MMR-5N2K MediaMaster® volume controller adds convenient auxiliary volume adjustment to compatible MediaMaster® source units, keeping your favorite music within easy reach while you're out on the water.
NMEA 2000® Network Connectivity: Featuring an integrated NMEA 2000® Micro-C connector, this controller supports connection to a vessel's NMEA 2000® network or a compatible standalone setup using the appropriate powered network cable.
One-Knob Multi-Zone Adjustment: Take command of your entire audio system with a large rotary control that adjusts all audio zones simultaneously, making it easy to fine-tune your listening experience while cruising.
IPX7 Weatherproof Marine Protection: Built for demanding marine and outdoor environments, this weatherproof controller features an IPX7-rated design to help withstand water exposure during your adventures.

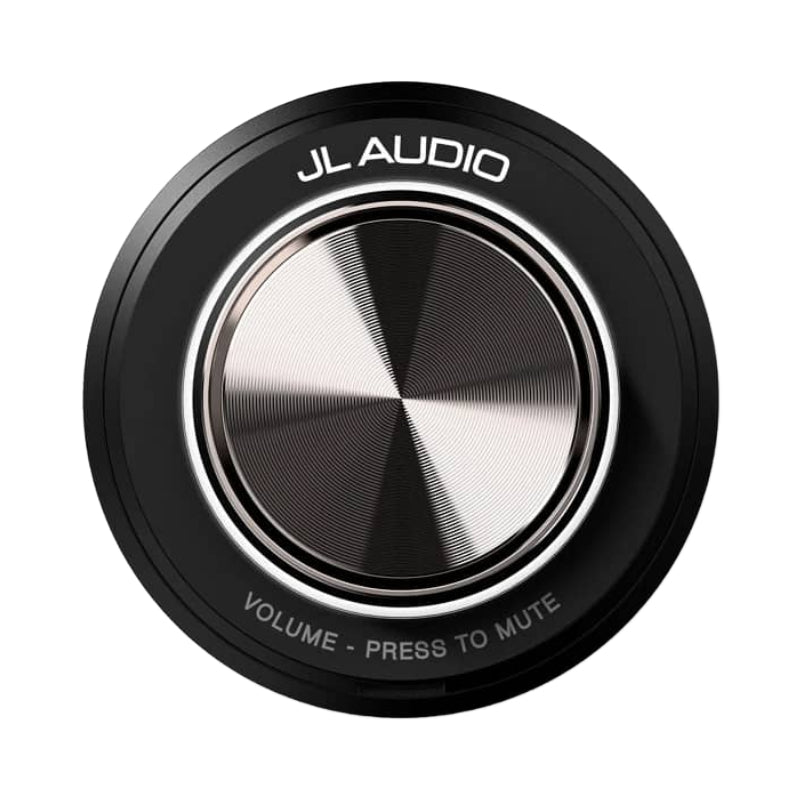

Smart LED Ring and Push-Button Mute: Personalize your dashboard with a programmable-brightness LED status ring and enjoy quick, convenient audio muting with the integrated push-button control.

Additional Information

Brand	JL Audio
Model	MMR-5N2K
Condition	Brand New
Sold As	Single

Product Type: Wired Auxiliary Volume Controller
Compatibility: JL Audio MM100s-BE, MM100s, MM80-HR, and MM50 MediaMaster® source units
Network Connectivity: NMEA 2000®
Connector Type: NMEA 2000® Micro-C
NMEA 2000® Certification: Certified, LEN 2
Waterproof Rating: IPX7
Volume Control: Large rotary knob
Audio Zone Control: Simultaneous adjustment of all audio zones
Mute Function: Push-button mute/unmute
LED Indicator: Integrated status LED ring with programmable brightness
Installation Type: Front-mounted
Required Mounting Hole: Single 1.5-inch (38 mm) hole
Source Unit Recognition: Automatically recognizes the connected compatible MediaMaster® model
Network Connection Options: Vessel NMEA 2000® network or compatible standalone network configuration

Download Owner's Manual

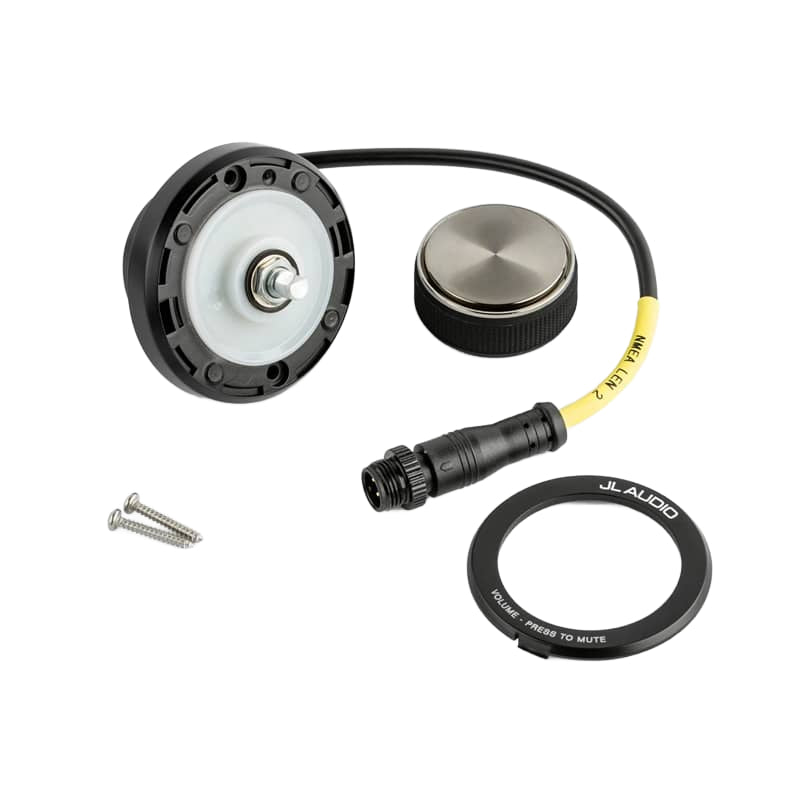

What's In The Box

• MediaMaster Source Unit with NMEA 2000 Network Connectivity

• Wired volume controller

• Mounting hardware

• Documentation

• Owner's Manual
