JL Audio JD250/1

Name: JL Audio JD250/1
Brand: JL Audio
SKU: JD250/1
Price: 203.99 USD
Availability: InStock

In Stock

JD Series 250W RMS x 1 at 2 Ohms, Class-D Mono Subwoofer Car Amplifier

Part No.-JD250/1

$203.99

Reserve Yours Now

Reserve yours from the next batch. Charged at checkout, shipped in order received.

Out of stock

One email the moment stock lands, nothing else.
Waitlist is notified in the order it was joined.
Unsubscribe from the email itself, one click.

30 Days Returns Accepted.
Lifetime Tech Support Included.
Free Shipping on Orders $49 and Up

SKU :JD250/1

Brand :JL Audio

Fit Guide. Check if it will fit your car.
We Price Match! Call Us! +1 (310) 594-8918

JL Audio JD250/1 JD Series 250W RMS x 1 at 2 Ohms Class-D Monoblock Subwoofer Car Amplifier

Compact Class-D Amplifier Design

The JL Audio JD250/1 is a monoblock subwoofer amplifier designed to deliver powerful bass performance in a compact chassis. Its efficient Class-D amplifier technology helps maximize subwoofer performance while making installation easier in a variety of vehicle audio systems.

NexD Switching Technology and Noise Reduction

Featuring JL Audio's NexD switching technology, the JD250/1 uses a self-oscillating modulator designed to help minimize noise caused by power supply voltage fluctuations. Differential-balanced inputs also help reject unwanted noise commonly introduced through vehicle audio wiring, supporting cleaner signal reproduction.

Powerful Bass Output

The JD250/1 delivers 150 watts RMS at 4 ohms and 250 watts RMS at 2 ohms, providing flexible power options for compatible subwoofers. With a listed frequency response of 7 Hz to 500 Hz, this amplifier is designed to reproduce low-frequency audio for a strong, detailed bass experience.

Adjustable Low-Pass Filter and Bass Boost

Customize your subwoofer's sound with the variable low-pass filter, adjustable from 50 Hz to 500 Hz. The bass boost control provides up to 12 dB of boost at 45 Hz, allowing you to tailor low-frequency output to your listening preferences and audio system setup.

Flexible System Integration

The JD250/1 can be integrated into compatible aftermarket audio systems and accepts high-level speaker inputs when installed using the appropriate wiring. Its dedicated monoblock design is intended for subwoofer applications, and an optional HD-RLC remote bass control can provide convenient bass level adjustment from the driver's seat.

Power Your Subwoofer with the JL Audio JD250/1

Enhance your car audio system with the JL Audio JD250/1 Class-D monoblock amplifier. Featuring up to 250 watts RMS at 2 ohms, NexD switching technology, differential-balanced inputs, and adjustable bass controls, it offers a compact and versatile solution for powering a compatible subwoofer.

Power Output: 250 W x 1 @ 2 Ω / 150 W x 1 @ 4 Ω (14.4V, 1% THD)
NexD™ Switching Technology: Provides high power output with excellent efficiency and ultra-low distortion

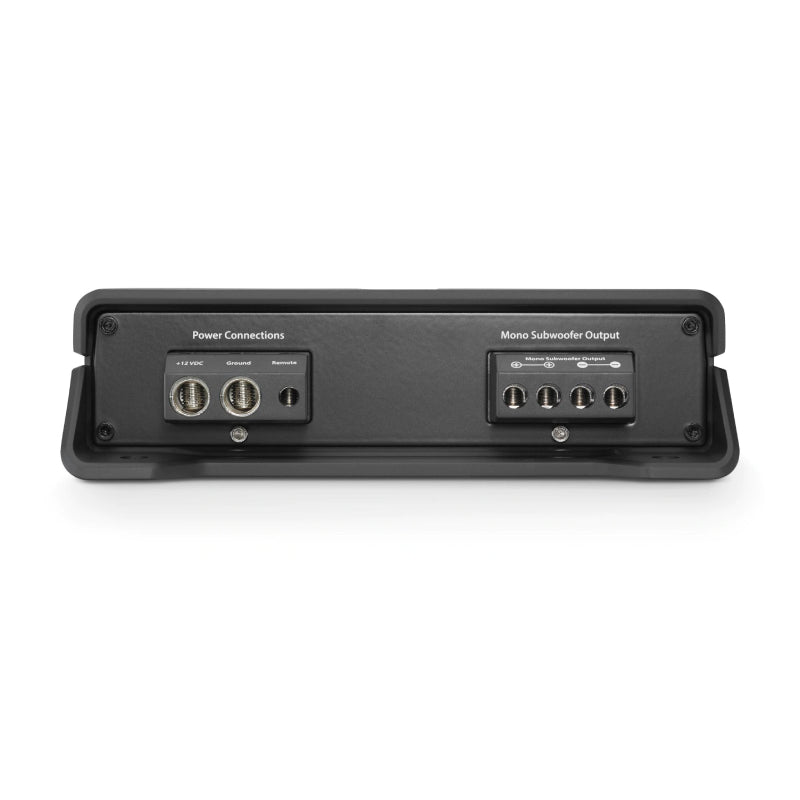

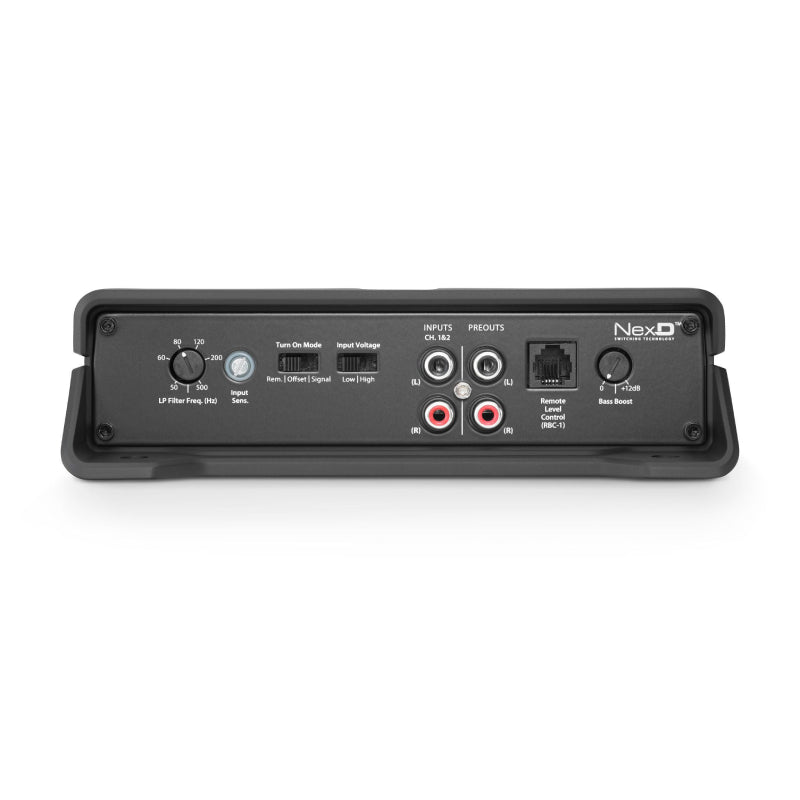

Chassis Design: Extruded aluminum chassis with controls on the input panel and power/speaker connections on the opposite end
Low-Pass Filter: 12 dB / octave with continuously variable frequency selection from 50-500 Hz
Bass Boost EQ: Variable for enhanced low-end performance
Input Options: Dual-range, differential-balanced inputs for both line-level and speaker-level signals
Automatic Turn-On: Activated by signal sensing or DC-offset sensing
Preamp Outputs: Allows for easy signal passing to additional amplifiers
LED Clipping Indicator: Input sensitivity control with an onboard LED-clipping ring for quick and accurate setup
Optional Remote Level Control: Compatible with the RBC-1 for subwoofer level adjustments from the driver’s seat (sold separately)

Additional Information

Brand	JL Audio
Model	JD250/1
Condition	Brand New
RMS Power Handling	1x250
Frequency Response	7-500
Number of Channels	1
Amplifier Class	D
Fuse Rating	30

Rated Continuous (RMS) Power @ 14.4 V

@ 4 Ω: 150 W RMS x 1
@ 3 Ω: 200 W RMS x 1
@ 2 Ω: 250 W RMS x 1
@ 1.5 Ω: N/A

Rated Continuous (RMS) Power @ 12.5 V

@ 4 ohms: 115 W RMS x 1
@ 3 ohms: 150 W RMS x 1
@ 2 ohms: 200 W RMS x 1
@ 1.5 ohms: N/A

General Specifications

Frequency Response: 7 Hz - 500 Hz (+0, -1dB)
S/N Ratio, referred to highest rated power >80 dB below rated power (A-weighted, 20 Hz - 20 kHz noise bandwidth)
S/N Ratio, referred to 1 W >60 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth)
Damping Factor @ 4 ohms: >1000 / 50 Hz
Damping Factor @ 2 ohms: >500 / 50 Hz
THD+N @ Rated Power: <1% @ 2 Ω per Ch.
Input Voltage Range @ RCA Inputs: Switchable from 200 mV - 2 V RMS (Low) to 800 mV - 8 V RMS (High)
Min.Copper Power / Ground Wire Gauge: 8 AWG wire
Fuse Rating: 30 A (AFS, AGU or MaxiFuse™)

Signal Processing

Filter Mode(s): Low-Pass only
Filter Slope(s): 12 dB/octave
Filter Frequency Range: 50 Hz - 500 Hz
Detented, Calibrated Filter Freq. Potentiometer: No
Filter Defeat Function: No
Infrasonic Filter: No
Bass Boost EQ: Yes
Output Polarity Switch: No
Remote Subwoofer Level Control: Optional (RBC-1)
Remote Bass EQ Boost Control: No
Pass-Through Preamp Output: Buffered

Physical Specifications

Height (H): 2.10 in / 53 mm
Width (W): 9.50 in / 242 mm
Depth (D): 7.50 in / 190 mm

Download Owner's Manual

What's In The Box

• JD Series Class-D Monoblock Subwoofer Amplifier

• 2.5 mm Allen-wrench

• 3 mm Allen-wrench

• Owner's Manual
