JL Audio CF-275mt

Name: JL Audio CF-275mt
Brand: JL Audio
SKU: CF-275mt
Price: 144.49 USD
Availability: InStock

In Stock

CF Series 2.75" 40W Peak Power Handling at 4 Ohms, 1-Way Car Mid-Tweeters (Sold as Pair)

Part No.-CF-275mt

$144.49

30 Days Returns Accepted.
Lifetime Tech Support Included.
Free Shipping up to $45.

Reserve Yours Now

Reserve yours from the next batch. Charged at checkout, shipped in order received.

Out of stock

One email the moment stock lands, nothing else.
Waitlist is notified in the order it was joined.
Unsubscribe from the email itself, one click.

SKU :CF-275mt

Brand :JL Audio

Fit Guide. Check if it will fit your car.
We Price Match! Call Us! +1 (310) 594-8918

JL Audio CF-275mt CF Series 2.75" 40W Peak Power Handling 4-Ohm Car Mid-Tweeters (Pair)

Custom-Fit Design for Factory Speaker Locations

The JL Audio CF-275mt mid-tweeters feature a compact design with shallow polymer frames and breakaway mounting tabs to accommodate many factory speaker locations. Their versatile construction supports installations in compatible vehicles from brands such as Chevrolet, GMC, Cadillac, Dodge, Jeep, RAM, and Toyota. Advanced engineering helps deliver smooth, dynamic sound with minimal distortion.

Lightweight Construction with Durable Protection

A neodymium motor delivers strong output in a compact, lightweight package. The glass-filled polymer frame features insert-molded terminals, while the progressive-roll spider supports controlled driver movement. A low-profile perforated metal grille provides protection and UV resistance, making the speakers suitable for exposed dashboard installations.

Flexible Passive and Active System Integration

The CF-275mt supports passive and active audio configurations. Included in-line second-order high-pass filters allow use as mid-tweeters, while active crossover processing enables integration into compatible two-way or three-way systems. When paired with suitable DSP equipment, these drivers offer flexibility for fine-tuning crossover frequencies and overall system response.

Wide Frequency Coverage and Convenient Installation

The CF-275mt provides a listed frequency range of 400 Hz to 20 kHz with 24 dB-per-octave filtering, or 500 Hz to 20 kHz with 12 dB-per-octave filtering. Its compact construction and integrated grille design simplify installation in compatible locations while supporting clear vocals, detailed midrange reproduction, and an improved front soundstage. This set is sold as a pair and includes in-line crossovers and mounting hardware.

Upgrade Your Car Audio with the JL Audio CF-275mt

Enhance your vehicle's sound system with the JL Audio CF-275mt mid-tweeters. Featuring a compact mounting design, a lightweight neodymium motor, protective grilles, and flexible crossover options, this pair offers a versatile solution for improving midrange detail and high-frequency performance in compatible car audio systems.

Custom-fit Design: Engineered to fit factory locations with shallow polymer frames and breakaway mounting tabs, compatible with popular vehicles like Chevrolet, GMC, Cadillac, Dodge, Jeep, RAM, and Toyota.
Advanced Engineering: Utilizes proprietary FEA modeling and loudspeaker design expertise to deliver loud, smooth, dynamic, and low-distortion sound.
Mid-Tweeter Construction: Features a 2.75" (70 mm) composite frame with a DMA-optimized motor system for superior performance.
High-Efficiency Cone: Ultralight, fiber-reinforced pulp cone with a custom "S" roll surround ensures excellent efficiency and extended high-frequency response.
Linear Compliance: Flat, progressive-roll spider maintains linear compliance for optimal sound quality.
Powerful Motor: Neodymium motor provides high energy output from a compact and lightweight design.
Durable Frame: Glass-filled, high-temperature polymer frame with insert-molded terminals and a low-profile perforated metal grille for protection and compatibility.
UV Protection: Grille design offers excellent UV protection, making it ideal for exposed dashboard locations.
Passive and Active Applications: Includes in-line, second order high-pass filters for passive use as midtreble speakers, or can be used actively as midrange or mid-tweeter drivers for two-way or three-way systems.
Recommended DSP: Ideal for use with high-quality digital signal processors like the JL Audio TwK® DSP or a VXi amplifier with built-in DSP.
Design Bandwidth: 400 Hz-20 kHz with 24 dB/octave filters, 500 Hz-20 kHz with 12 dB/octave filters.
Factory-Fit Sound: Delivers next-level sound quality from OEM locations.
Package Includes: Sold as a pair, with built-in grilles.

Additional Information

Brand	JL Audio
Model	CF-275mt
Condition	Brand New
Sold As	Pair
Diameter	2.75
RMS Power Handling	30
Peak Power Handling	40
Impedance	4
Frequency Response	450-20000
Sensitivity	82

Speaker Size: 2 3/4 inches
Design: 1-way
Impedance: 4 Ohms
Sensitivity (1W at 1 meter): 82 dB
Frequency Response: 450 - 20k Hz
Minimum RMS Wattage: 10 W
Maximum RMS Wattage: 30 W
Peak Power Handling: 40 W
Top-mount Depth: 1.4375 inches (1 7/16 inches)
Bottom-mount Depth: 1.6875 inches (1 11/16 inches)
Cutout Diameter or Length: 2.5 inches
Mounting Height: 0.265 inches
Frame Width: 2.86 inches
Frame Length: 2.86 inches
Frame Outer Diameter: 2.85 inches (72 mm)
Motor Outer Diameter: 1.29 inches (33 mm)
Frontal Coaxial Tweeter Protrusion: N/A
Frontal Grille Protrusion: 0.26 inches (6.5 mm)
Mounting Hole Diameter: 2.48 inches (63 mm)
Mounting Depth: 1.39 inches (35 mm)

Download Owner's Manual

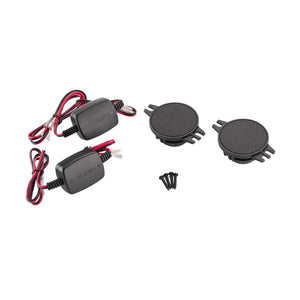

What's In The Box

• (2) 2.75" CF Series 1-Way Car Mid-Tweeters

• (2) in-line crossovers

• (8) 1" Screws

• (2) 0.187" Female quick slides (crimp-on/14-16 gauge)

• (2) 0.110" Female quick slides (crimp-on/14-16 gauge)

• Owner's Manual
