C6 Series 6.5" 100W Power Peak Handling 4 Ohms, 3-Way Component Car Speaker System

Part No.-C6-653
$1,444.99
  • 30 Days Returns Accepted.
  • Lifetime Tech Support Included.
  • Free Shipping up to $45.

Reserve Yours Now

Reserve yours from the next batch. Charged at checkout, shipped in order received.

Out of stock
  • One email the moment stock lands, nothing else.
  • Waitlist is notified in the order it was joined.
  • Unsubscribe from the email itself, one click.
SKU :C6-653
Brand :JL Audio

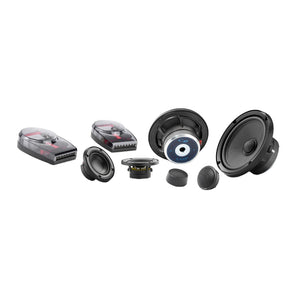

JL Audio C6-653 C6 Series 6.5" 50W RMS 4-Ohm 3-Way Component Car Speaker System

Premium 3-Way Component Sound

The JL Audio C6-653 is a 6.5-inch component speaker system engineered for detailed, balanced audio reproduction. Its DMA-optimized woofer design helps minimize distortion and improve transient response, delivering clear vocals, controlled midbass, and accurate musical detail for an enhanced in-car listening experience.

Silk Dome Tweeters for Detailed High Frequencies

The edge-driven silk dome tweeters are designed to reproduce smooth, detailed high frequencies with wide sound coverage. Their adjustable output settings allow you to tailor the treble response to your listening preferences and vehicle acoustics, helping create a more balanced and immersive soundstage.

Advanced Construction for Reliable Performance

Built with advanced cast-alloy frames and Elevated Frame Cooling, the C6-653 is designed to promote airflow around the woofer motor and support consistent performance. Its oversized voice coil helps manage heat and reduce distortion during demanding playback, while the carefully engineered components deliver dynamic sound across a wide range of listening levels.

Flexible System Integration and Sound Tuning

The C6-653 is designed for customized car audio installations, with individual drivers that can be integrated into a properly configured system. Appropriate amplification and crossover processing help distribute frequencies between the woofers, midranges, and tweeters, allowing precise adjustment for improved clarity, imaging, and overall tonal balance.

Upgrade Your Car Audio with the JL Audio C6-653

Bring greater detail and balance to your in-car listening experience with the JL Audio C6-653 3-way component speaker system. Featuring DMA-optimized woofer engineering, silk dome tweeters, and durable construction, it offers a flexible foundation for a carefully tuned, high-quality car audio setup.

  • Premium Audio Quality: The C6 Series 6.5" component speakers combine a full-frame woofer, silk dome tweeter, and premium passive crossovers for an exceptional car audio experience.
  • DMA-Optimized Woofers: The proprietary motor, suspension, and cone design reduce distortion, enhance transient response, and optimize the woofer’s high-frequency output for seamless tweeter integration.
  • Silk Dome Tweeters: The edge-driven silk dome tweeter delivers detailed, balanced sound with wide coverage and built-in solid-state protection to prevent failure.
  • Passive Crossover Networks: Each C6 component system includes premium filter networks with 4-level tweeter adjustment, featuring polyester film, electrolytic capacitors, and air-core inductors under a protective polycarbonate cover.
  • Advanced Frame Design: The JL Audio 6.5" C6 component speakers feature durable cast-alloy frames with Elevated Frame Cooling, reflecting years of woofer design expertise.
  • Powerfully Adaptable: The C6 speaker system delivers superb sound across 25–150W amplifiers, with an oversized woofer voice coil for enhanced power handling and reduced distortion at high volumes.
JL Audio C6-653

Additional Information

Brand JL Audio
Model C6-653
Condition Brand New
Diameter 6.5
RMS Power Handling 50
Peak Power Handling 100
Impedance 4
Frequency Response 53-21000
Design 3-Way
Woofer Composition Polypropylene
Tweeter Composition Silk
  • Speaker Size: 6.5" woofer, 1" tweeter
  • Driver Design: 2-way
  • Woofer Material: Mineral-filled polypropylene with rubber surround
  • Tweeter Type/Size: Silk dome, 1" (25 mm)
  • Impedance: 4 Ω
  • Frequency Response: 53 Hz – 21 kHz
  • Power Handling: 25–150 W RMS
  • Sensitivity: 87.37 dB (6.5"), 96 dB (1" tweeter)
  • Top-Mount Depth: 2.60" (woofer), 0.875" (tweeter)
  • Grilles Included: Black steel mesh with plastic mounting ring
  • Connections: Spade connectors
  • Mounting Dimensions (6.5" Woofer)
  • Frame Diameter: 6.5"
  • Mounting Hole: 5.46"
  • Mounting Depth: 2.60"
  • Grille Protrusion: 1"
  • Tweeter Mounting
  • Flush Mount Diameter: 2.13"
  • Surface Mount Diameter: 2.11"
  • Flush Mount Depth: 1.85"
  • Frontal Protrusion: 0.30" (flush), 1.04" (surface)

What's In The Box

• (2) midranges

• (2) 0.185" female crimpable connectors

• (2) 0.110" female crimpable connectors

• (8) 1-1/4" mounting screws

• (2) grille frames, grilles and JL Audio logo badges

• (4) OEM adapter rings

• Owner's Manual
