JL Audio C3-525

Name: JL Audio C3-525
Brand: JL Audio
SKU: C3-525
Price: 450.49 USD
Availability: InStock

In Stock

Evolution C3 Series 5.25" 225W Peak Power Handling 4 Ohms, 2-Way Convertible Component System

Part No.-C3-525

$450.49

Reserve Yours Now

Reserve yours from the next batch. Charged at checkout, shipped in order received.

Out of stock

One email the moment stock lands, nothing else.
Waitlist is notified in the order it was joined.
Unsubscribe from the email itself, one click.

30 Days Returns Accepted.
Lifetime Tech Support Included.
Free Shipping on Orders $49 and Up

SKU :C3-525

Brand :JL Audio

Fit Guide. Check if it will fit your car.
We Price Match! Call Us! +1 (310) 594-8918

JL Audio C3-525 Evolution C3 Series 5.25" 65W RMS 2-Way Convertible Component Speaker System

Flexible Component or Coaxial Installation

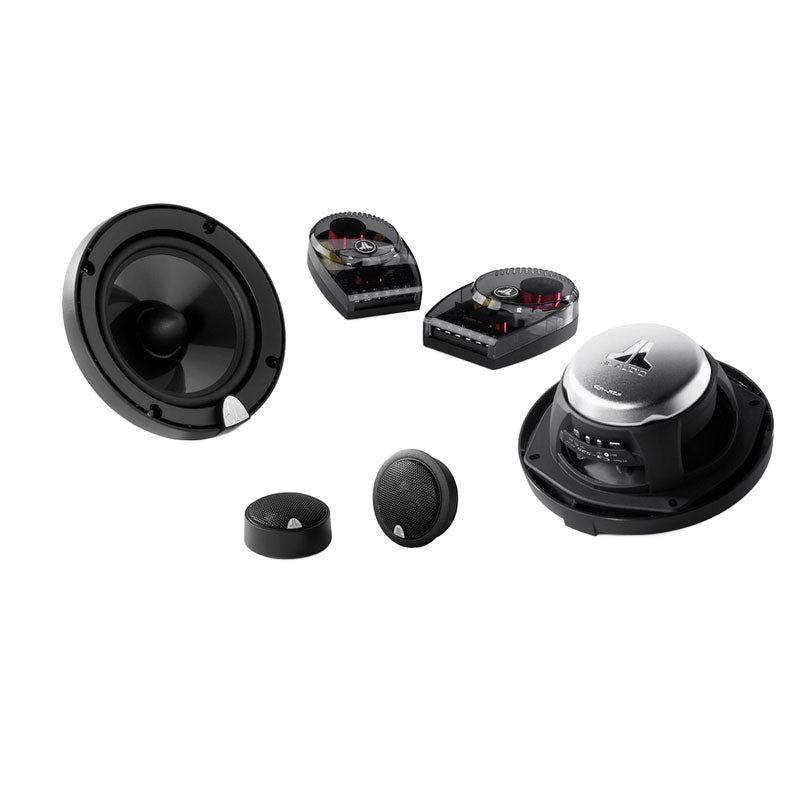

The JL Audio C3-525 is a versatile 5.25-inch component speaker system that can be configured as a traditional component setup or a coaxial arrangement. Its mica-filled polypropylene woofers and 1-inch silk dome tweeters deliver strong midbass, clear vocals, and detailed high frequencies for a refined in-car listening experience.

Advanced Engineering for Clear, Detailed Sound

Designed for high-performance audio, the C3-525 features resonance-resistant woofer frames and ferrofluid-cooled silk dome tweeters. A phase plug helps improve sound dispersion, supporting balanced reproduction and clear detail throughout the vehicle's cabin.

Premium Crossovers with Adjustable Tweeter Settings

The included external crossover networks help direct the appropriate frequencies to the woofers and tweeters. Adjustable tweeter settings let you tailor high-frequency output to your vehicle's acoustics and personal listening preferences, helping achieve balanced sound and precise imaging.

65W RMS Power Handling for a Refined Audio Upgrade

With a listed power handling rating of 65 watts RMS, the JL Audio C3-525 is built for detailed music reproduction and dynamic midbass performance. Pairing the system with a suitable amplifier can help deliver clean output, improved dynamics, and consistent performance when properly installed and tuned.

Upgrade Your Car Audio with the JL Audio C3-525

Enjoy flexible installation options, detailed highs, clear vocals, and powerful midbass with the JL Audio C3-525 Evolution C3 Series component speaker system. Its adjustable crossovers and convertible design make it a versatile choice for building a more refined car audio setup.

Flexible Configuration: Choose the best setup for great sound in your vehicle with JL Audio's Evolution C3 speaker systems.
Component System: Mount the woofers and tweeters separately for incredibly detailed, rich, and crystal-clear music, perfectly positioned in your listening space.
Coaxial Speaker Option: In vehicles with limited space, mount the C3 tweeter inside the woofer to create a full-range, coaxial speaker with breathtaking impact.

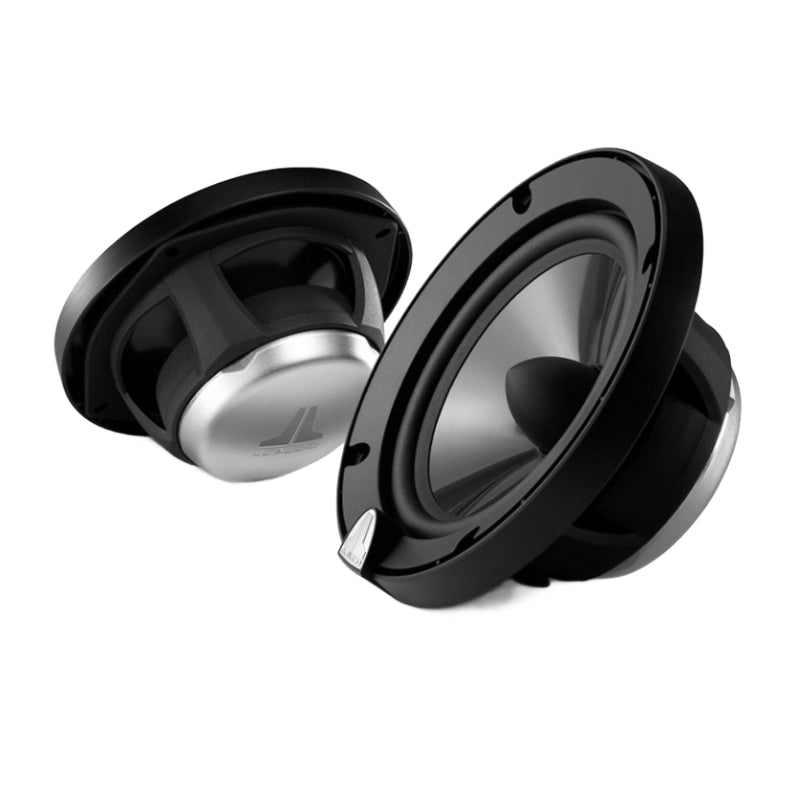

Woofer Design: The C3-525 component system uses a 5-1/4" mica-filled polypropylene woofer that covers the midrange and low frequencies strongly and accurately.
Frame Construction: A specially designed frame resists unwanted resonances, keeping your music free from interference.
Phase Plug: Install a phase plug into the woofer when mounting the tweeter separately for smooth sound dispersion throughout your vehicle.
Tweeter Performance: C3 tweeters use ferrofluid cooling to handle extreme levels of high-frequency information without overheating.
1" Silk Dome Tweeters: Mounted separately or coaxially, these tweeters broadcast crisp musical detail evenly without harshness.

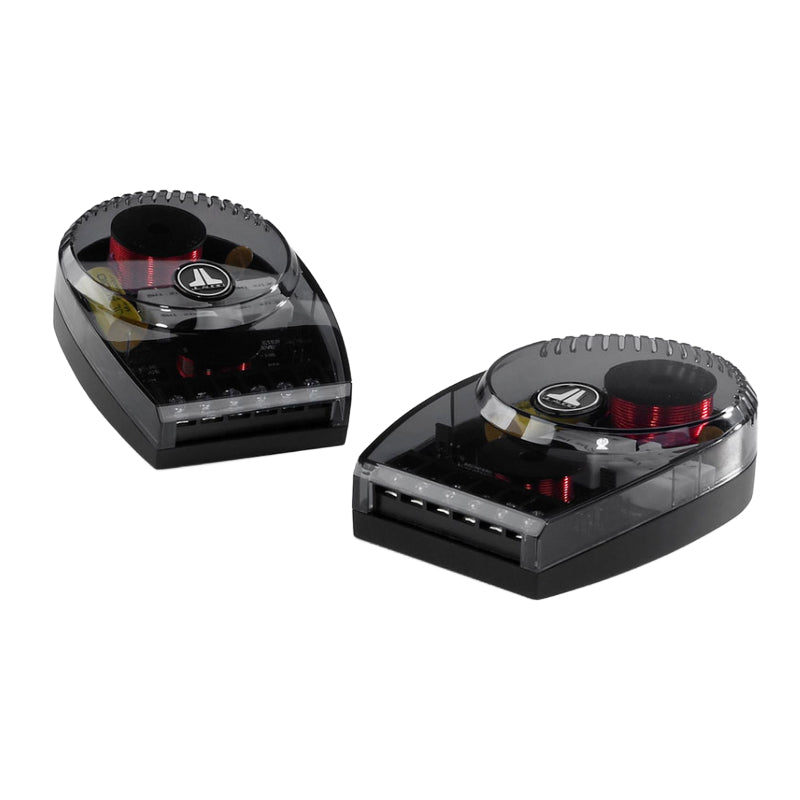

Outboard Crossovers: Separate outboard crossovers use premium components to direct the signal flow to your woofers and tweeters.
Customizable Settings: Select from three midrange settings and four levels of tweeter presence to match the speaker system to your listening environment.

Additional Information

Brand	JL Audio
Model	C3-525
Condition	Brand New
Diameter	5.25
RMS Power Handling	65
Peak Power Handling	225
Frequency Response	48-25000
Sensitivity	90
Design	2-Way
Woofer Composition	Mineral-filled poly
Tweeter Composition	Silk

Speaker Size: 5 1/4
Design: 2-way
Tweeter Design: 1" Dome
Impedance (Ohms): 4
Tweeter Composition: Silk
Woofer Composition: Mineral-filled poly
Woofer Surround: Rubber
Parts Warranty: 1 Year
Labor Warranty: 1 Year
Sensitivity (1W at 1 meter): 90
Sensitivity at 2.83 volts: N/A
Frequency Response: 48 - 25k Hz
Minimum RMS Wattage: 25
Maximum RMS Wattage: 75
Peak Power Handling (Watts): 225
Top-mount Depth (Inches): 2 1/4
Bottom-mount Depth (Inches): N/A
Cutout Diameter or Length (inches): 4 1/2
Mounting Height (Inches): 0.432

Download Owner's Manual

What's In The Box

• (2) C3-525cw Woofers

• (2) C3-100ct Tweeters

• (2) C3-525-XO Crossovers

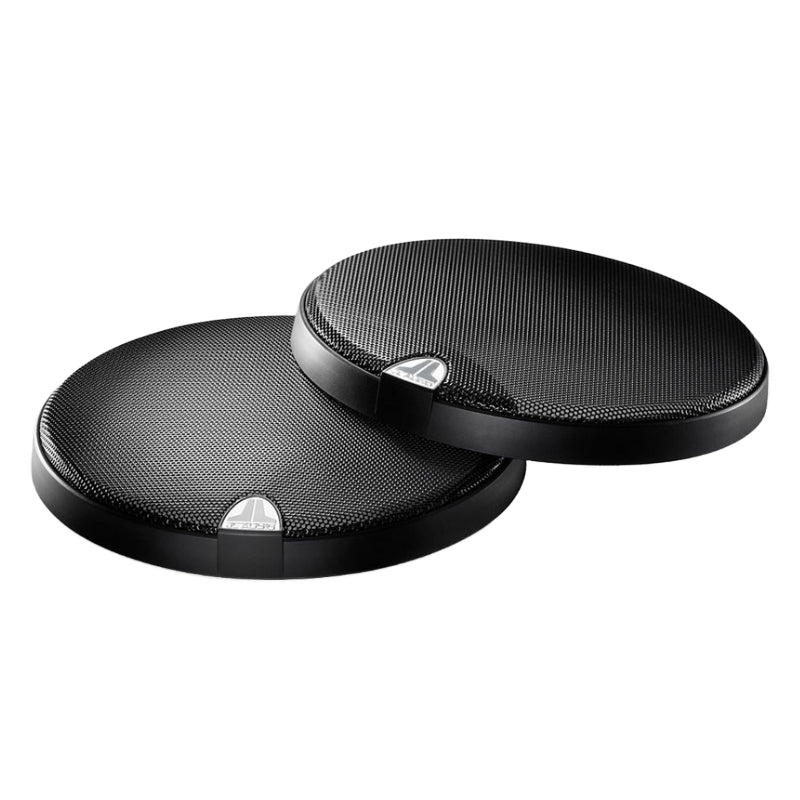

• (2) Woofer grilles

• (2) Flush mount tweeter housings

• (2) Surface mount tweeter housings

• (2) Coaxial mount tweeter fixtures

• (2) Metal spring clips for tweeter fixtures

• (2) M4x30mm Pan-head machine screws

• (2) Crimp-on 0.187" Male quick slides

• (2) Crimp-on 0.110" Male quick slides

• (2) Crimp-on 0.25" Female quick slides

• (2) Crimp-on 0.187" Female quick slides

• (4) Crimp-on 0.110" Female quick slides

• (12) Crimp-on spade connectors

• (4) 1" Flat head self-tapping screws

• (12) 1-1/8" Pan head self-tapping screws

• (12) Speed clips

• Woofer cutout template

• Owner's Manual
