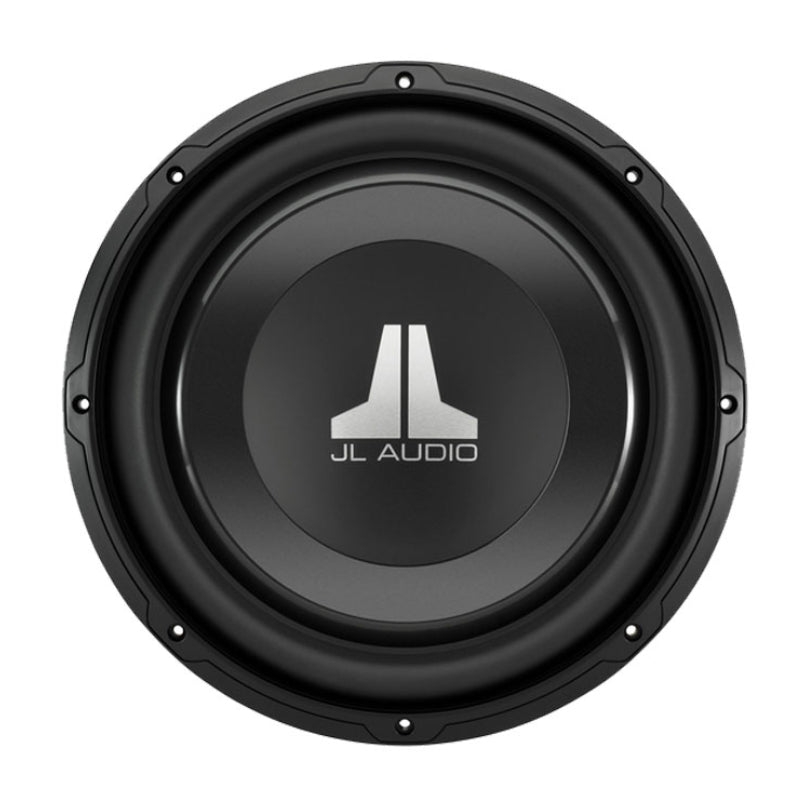

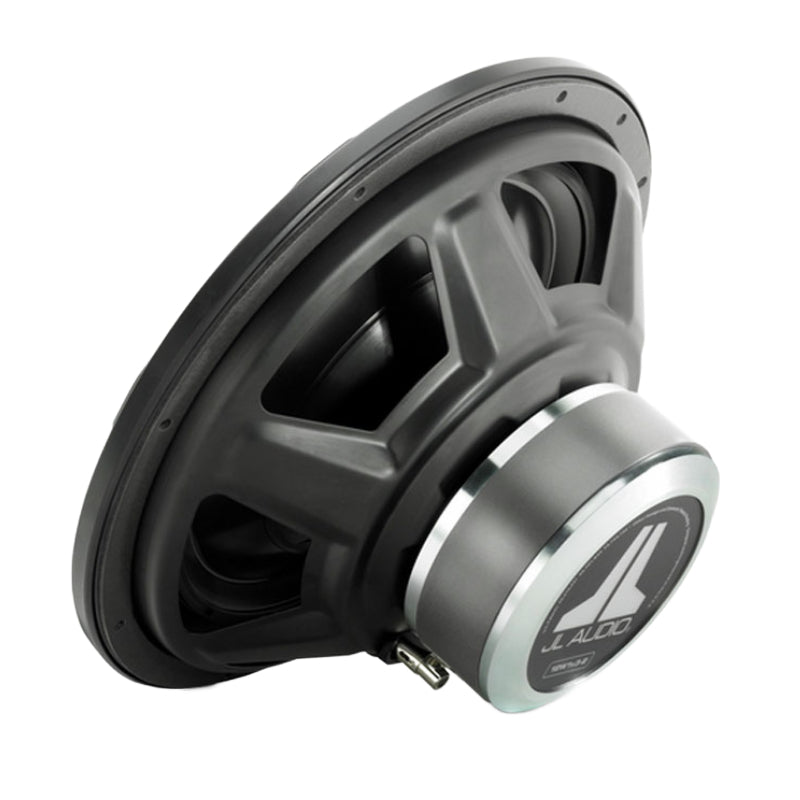

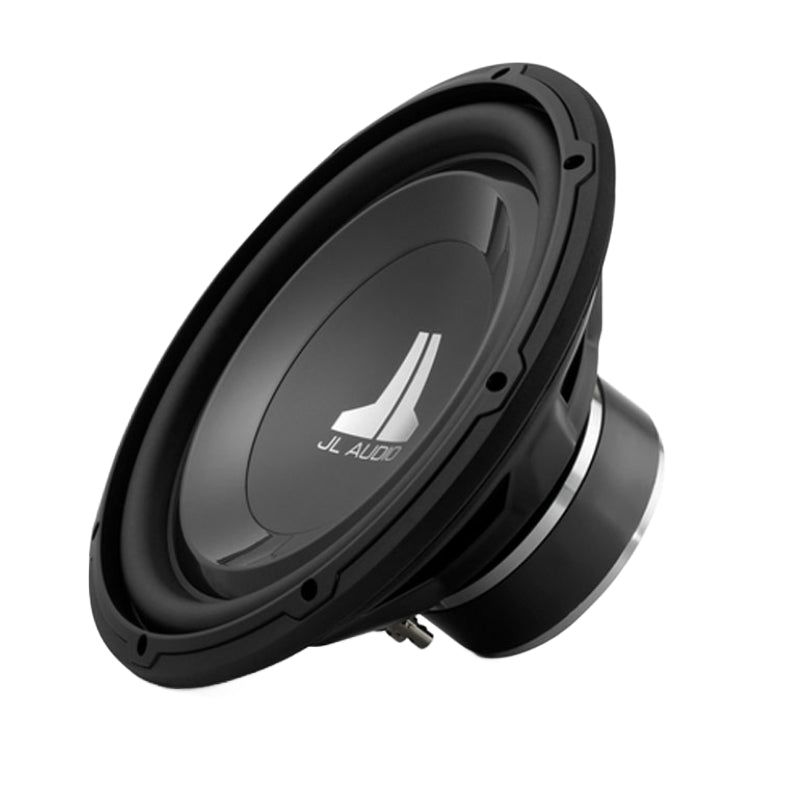

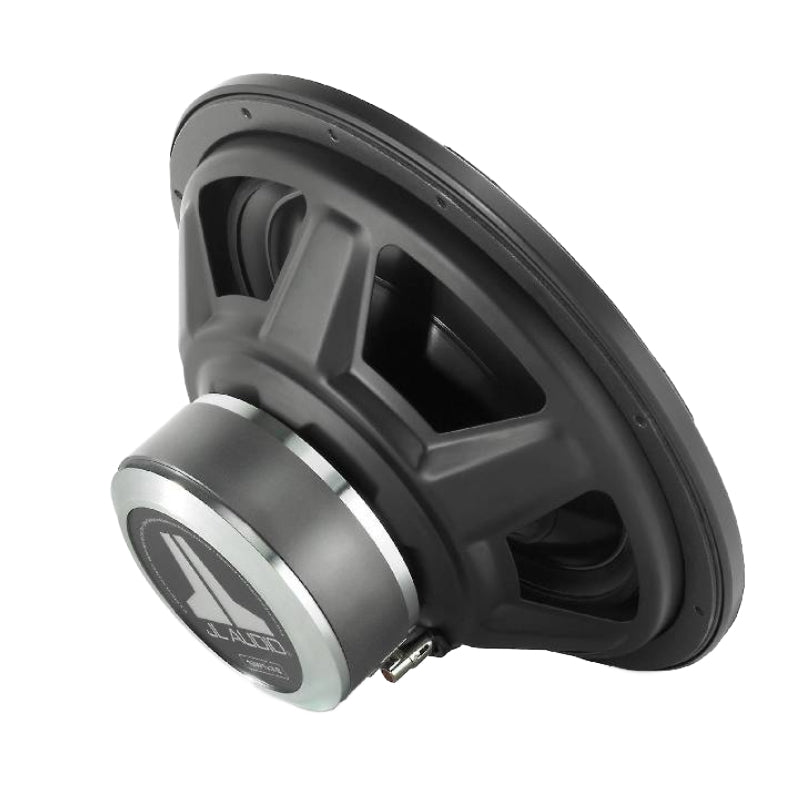

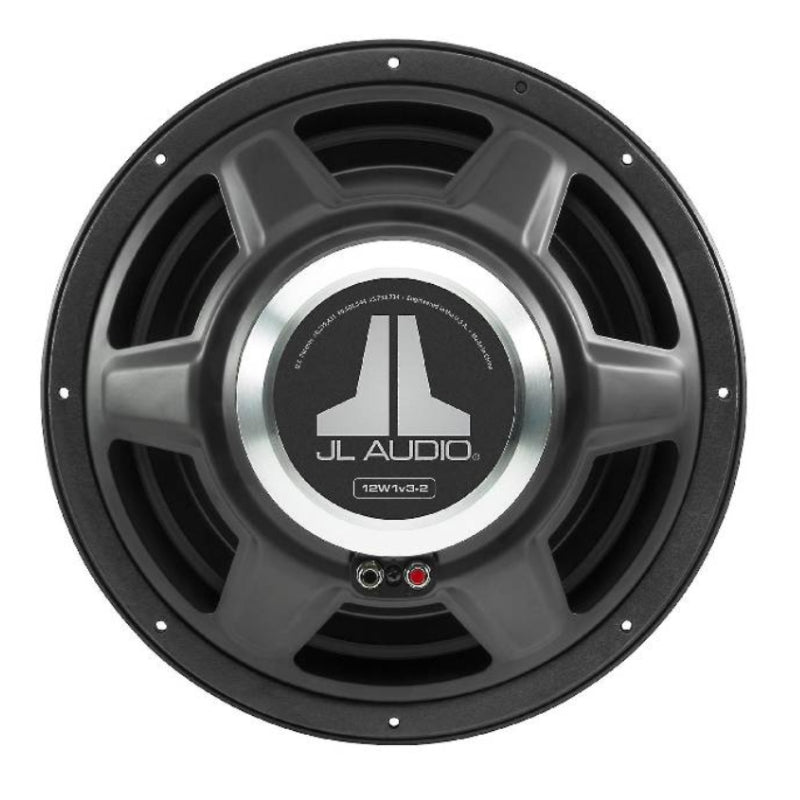

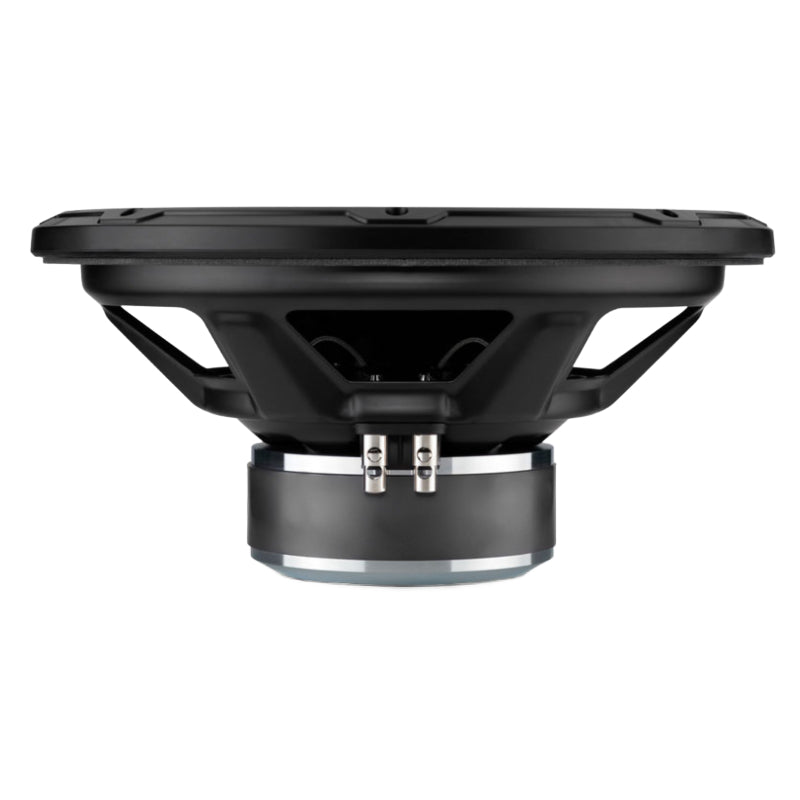

JL Audio 12W1v3-2

Name: JL Audio 12W1v3-2
Brand: JL Audio
SKU: 12W1v3-2
Price: 237.99 USD
Availability: InStock

In Stock

W1v3 Series 12" 600W Peak Power Handling 2 Ohms, Single Voice Coil Component Car Subwoofer

Part No.-12W1v3-2

$237.99

30 Days Returns Accepted.
Lifetime Tech Support Included.
Free Shipping up to $45.

Reserve Yours Now

Reserve yours from the next batch. Charged at checkout, shipped in order received.

Out of stock

One email the moment stock lands, nothing else.
Waitlist is notified in the order it was joined.
Unsubscribe from the email itself, one click.

SKU :12W1v3-2

Brand :JL Audio

Fit Guide. Check if it will fit your car.
We Price Match! Call Us! +1 (310) 594-8918

JL Audio 12W1v3-2 W1v3 Series 12" 300W RMS (600W Peak Power Handling) 2 Ohms, Single Voice Coil Component Car Subwoofer

Powerful, Clean 12-Inch Bass

Upgrade your car audio system with the JL Audio 12W1v3-2, a 12-inch subwoofer designed to deliver deep, accurate, and impactful bass. With 300 watts RMS power handling and a single 2-ohm voice coil, it is a great choice for enhancing factory or aftermarket sound systems with rich low-frequency performance.

Durable Cone Construction and Advanced Cooling

The mineral-filled polypropylene cone and durable rubber surround help provide reliable performance and accurate bass reproduction. Combined with JL Audio's advanced cooling technology, this construction supports consistent operation while helping minimize distortion during demanding listening sessions.

300 Watts RMS for Everyday Performance

Rated for 300 watts RMS and 600 watts peak power handling, the 12W1v3-2 delivers a balance of output, efficiency, and sound quality. Pair it with a suitable monoblock amplifier that provides clean power and supports the subwoofer's 2-ohm impedance for dependable performance.

Sealed and Ported Enclosure Compatibility

The JL Audio 12W1v3-2 works with both sealed and ported enclosures, giving you flexibility when designing your car audio system. A sealed enclosure is well suited to tight, controlled bass, while a ported enclosure can provide greater output and stronger low-frequency impact when properly designed.

Bring Your Music to Life with Deep Bass

From hip-hop and rock to EDM and country, the JL Audio 12W1v3-2 adds rich, dynamic bass to your favorite music. With 300 watts RMS power handling, durable construction, and flexible enclosure options, it is an excellent choice for a high-quality everyday car audio upgrade.

Engineered for Performance: Delivers impressive output, accuracy, and sound quality at moderate power levels; fits comfortably in space-saving enclosures due to shallow mounting depth and no pole vent clearance.
Dynamic Motor Analysis (DMA) Optimized Speakers: Ensures linear motor force over a wide range of excursion and power, resulting in tight, clean, and articulate bass with ultra-low distortion.
Polypropylene Cone Technology: Injection-molded, black mica-filled polypropylene cone with rubber surround provides durable, strong, and crisp bass. Aluminum dust cap with JL Audio logo adds a finishing accent.
Shallow Mounting Depths: Compact motor structure allows installation in tight spaces. Example: 10-inch W1v3 requires only 4.6 inches of mounting depth.

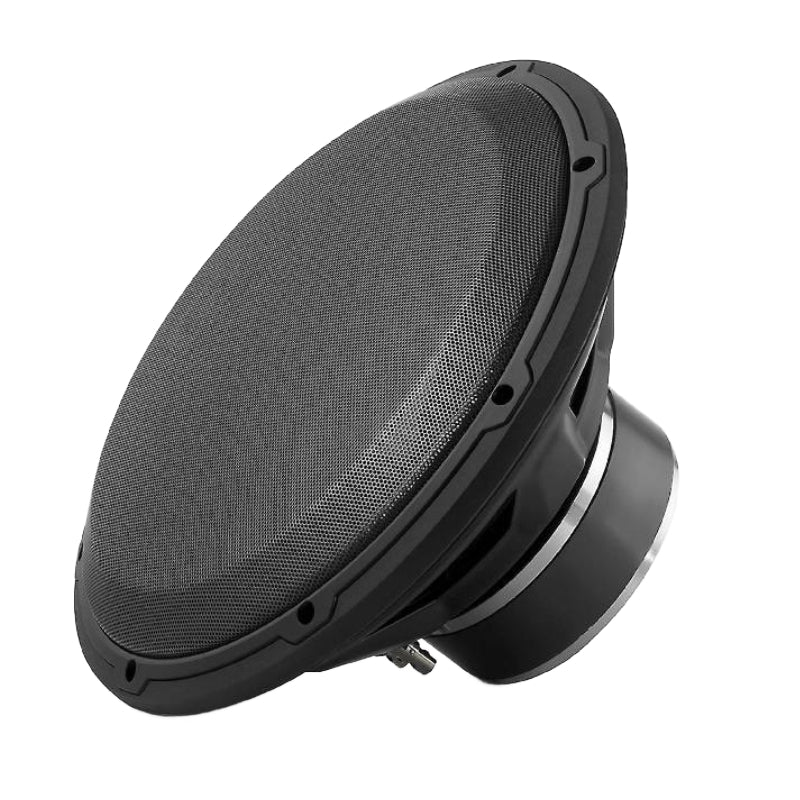

Custom Accents: Removable trim ring can be painted; optional steel-mesh grille inserts (sold separately) attach directly to the trim ring for added style and protection.
Powerfully Adaptable: Supports a wide range of vehicles and amplifier pairings. 8-inch: 50–100 W RMS, 10-inch: 75–300 W RMS, 12-inch: 75–300 W RMS.
Legendary JL Audio Engineering: Incorporates W7-derived technologies, including venting for cooling, cone bonding, linear motor construction, and suspension system alignment for consistent performance.
Versatile Enclosure Options: Works well in both sealed and ported enclosures to provide tailored bass performance.

Additional Information

Brand	JL Audio
Model	12W1v3-2
Condition	Brand New
Diameter	12
RMS Power Handling	300
Peak Power Handling	600
Impedance	2
Frequency Response	22-200
Sensitivity	85.9
Number of Voice Coils	Single
Mounting Depth	5.41
Shallow Mount	Yes

Size: 12-inch
Impedance: 2 Ohms
Cone Material: Mica-filled polypropylene
Surround Material: Rubber
Grille: None included
Free-Air Use: No
Dual Voice Coil: No
Sensitivity: 85.9 dB at 1 watt
Frequency Response: 22 – 200 Hz
Max RMS Power Handling: 300 W
Peak Power Handling: 600 W
Top Mount Depth: 5 7/16 in
Bottom Mount Depth: N/A
Cutout Diameter: 10 15/16 in
Frame Width: 12.518 in
Frame Length: 12.518 in
Vas: 72.04 liters
Fs: 26.55 Hz
Qts: 0.521
Xmax: 11.4 mm
Ideal Sealed Box Volume: 1.152 cu. ft
Ideal Ported Box Volume: 1.652 cu. ft

Download Owner's Manual

What's In The Box

• 12" Single 2-ohm voice coil subwoofer

• Black plastic trim ring

• Owner's Manual

Videos
