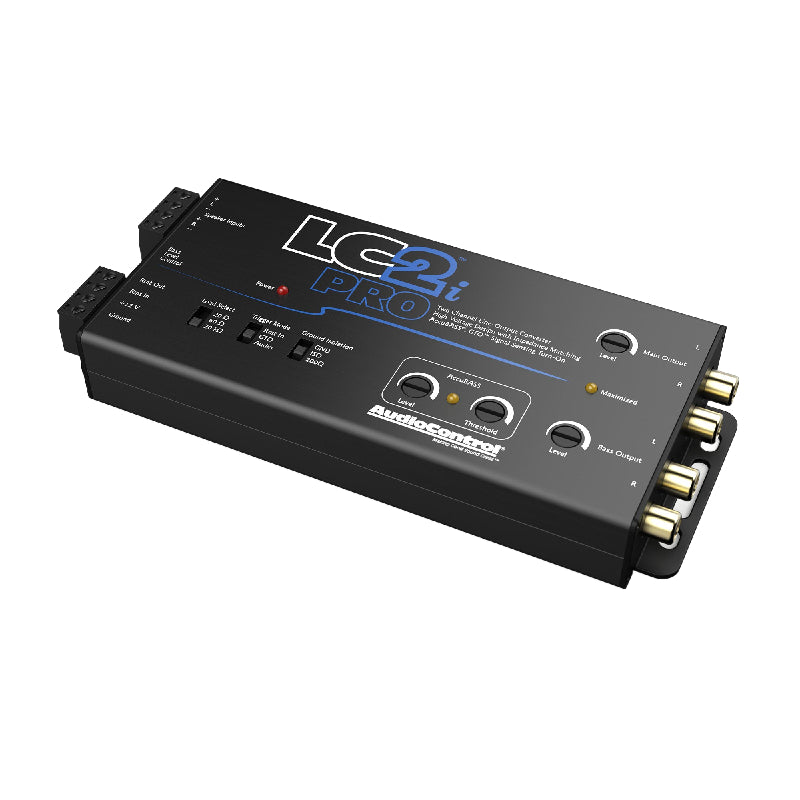

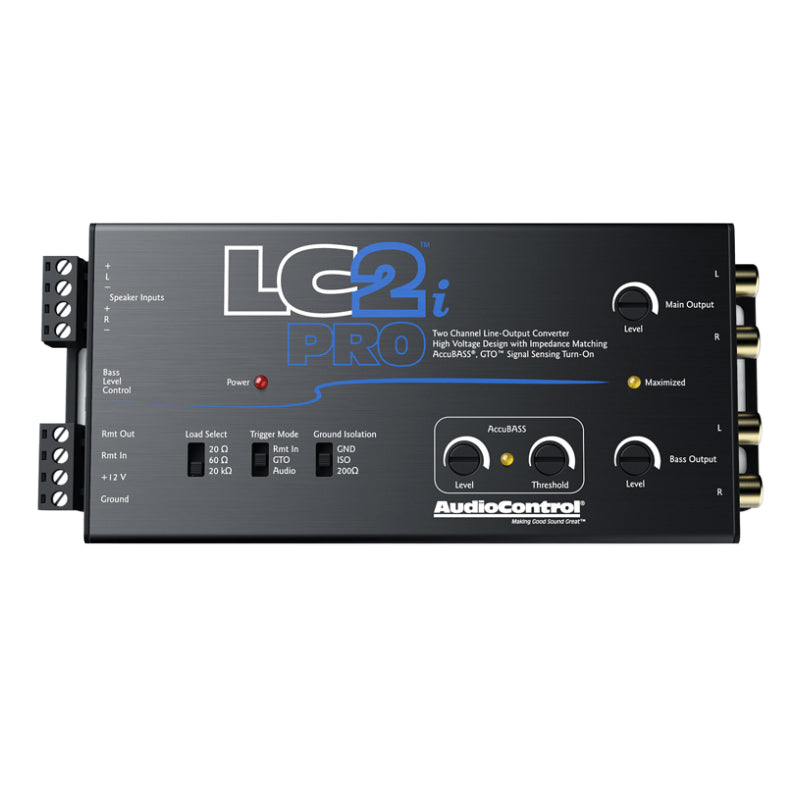

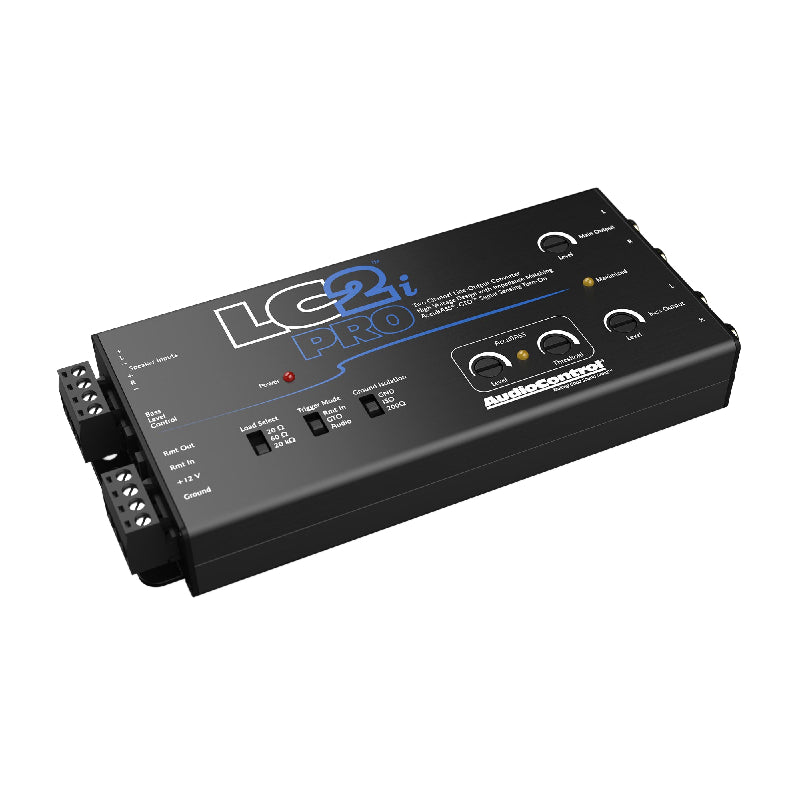

AudioControl LC2i-PRO 2-Channel Line Output Converter with ACCUBASS®

Advanced Audio Signal Processing

Upgrade your car audio system with the AudioControl LC2i-PRO, an enhanced version of the renowned LC2i line output converter. Designed to improve audio integration in factory and aftermarket systems, this two-channel signal processor helps deliver high-quality sound, even when your vehicle's audio system has been modified or expanded.

Flexible Inputs and Outputs

The LC2i-PRO features two speaker-level inputs and supports up to 400 watts RMS of input power handling. Main and bass preamp-level outputs allow you to connect external amplifiers, while the included ACR-1 level control lets you adjust the output conveniently. Selectable load, trigger mode, and ground isolation options provide added flexibility for different installation requirements.

Restore Factory Stereo Bass with ACCUBASS®

Some factory stereos reduce low-frequency output to protect the original speakers, which can leave your upgraded sound system lacking deep bass. The LC2i-PRO features AudioControl's ACCUBASS® circuitry to help restore lost bass response, giving your subwoofer system fuller, more impactful low frequencies while maintaining a balanced listening experience.

AudioControl LC2i-PRO Key Features

2-Channel Converter
Integrates factory audio signals with aftermarket amplifiers

400W RMS Input Handling
Supports up to 400 watts RMS of input power

ACCUBASS® Technology
Helps restore bass lost through factory stereo processing

Speaker-Level Inputs
Two inputs for connecting to factory speaker signals

Main and Bass Outputs
Preamp-level outputs for external amplifiers

ACR-1 Level Control
Convenient adjustment of output level

Selectable Load Options
Helps accommodate different system configurations

Trigger Mode Selection
Provides flexible system activation options

Ground Isolation
Selectable option for installation flexibility

Get More from Your Car Audio System

Improve your factory audio integration with the AudioControl LC2i-PRO two-channel line output converter. With ACCUBASS® technology, flexible input and output connections, and convenient level control, it helps restore bass and connect your upgraded system for a more satisfying listening experience.

Two channels of active speaker level inputs (up to 40V input handling)
Fixed and variable outputs with discrete level controls
AccuBASS® processing for correction of bass roll-off
Load Selection Switch
GTOTM Signal Sensing
Ground Isolation Switch
ACR-1 dash remote inluded
Compact design

Additional Information

Brand	AudioControl
Model	LC2i PRO
Condition	Brand New
Number of Channels	2

Inputs

Speaker Level Input: 1 (2 channels)
Maximum Speaker Level Input: 40 Vrms / 400 W (20k ohms setting)
Input Impedance (selectable): 20 ohms, 60 ohms, 20k ohms

Outputs

Preamp Outputs: 2 (2 channels main, 2 channels bass)
Maximum Output Level: 9.5Vrms/13V peak
Output Gain: +/- 12 dB
Output Impedance: 150 ohms

Performance

Total Harmonic Distortion: 0.01%
Signal to Noise: >110 dB
Frequency Response: 20 Hz – 50 kHz ±1 dB

Control

Remote In / GTO™ Signal Sense / Audio Sense
12VDC Remote Out (always active when unit is on)

General

Current Draw: 200 mA
Recommended Fuse Rating: 1 A

Weights & Dimensions

Dimensions: 6.9″L x 3″D x 1″H (including speaker connectors)

Download Owner's Manual

What's In The Box

• Two-Channel line output converter

• (2) 4-pin captive-screw connectors

• ACR-1 Level control

• 16.5' Level-control cable (RJ-14)

• Owner's Manual
